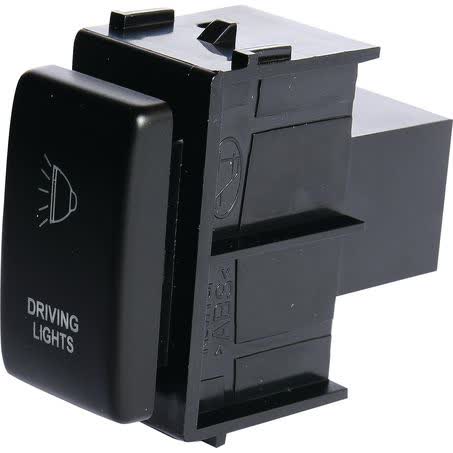

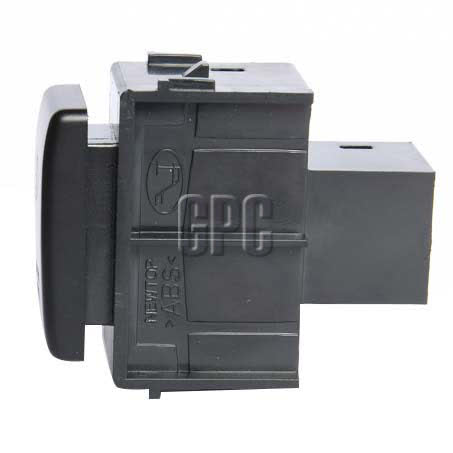

Thunder OE Style Push Button Switch Driving Light 12V 3A TDR11003 Suits Nissan

The Thunder OE Style Push Button Switch Driving Light is a 12V, 3A switch supplied as part number TDR11003. It is an on-off SPST push switch with blue LED illumination and a mount size of 35mm x 20mm, designed for Nissan applications listed against Pathfinder R51 series 2005-2012, Navara D40 series 2008-2012, Patrol GU4-7 series 2000-2012, Patrol Y61 series 2013-current, Patrol Y62 series 2013-current, and X-Trail T31 series 2007-2013.

This switch is supplied by Thunder and sold as a single piece. The wiring identification provided is Black for earth, Blue for dash light circuit as an optional connection, Red for 12V input, and Green for 12V output. Those connection details matter when matching the switch to the vehicle and accessory circuit before installation.

With a compact 35mm x 20mm mounting footprint, this push button switch is aimed at a neat dash installation where a driving light control is required. The listed 3A power rating and 12V voltage specification should be checked against the circuit it will be used on, particularly where the switch is being added to an existing driving light setup.

Key Features

• Thunder OE style push button switch
• Part number TDR11003
• 12V operation
• 3A power rating
• On-Off SPST switch action
• Blue LED illumination

Specifications

• Brand: Thunder
• Product type: Switch
• Item type: Switch
• Part No.: TDR11003
• Voltage: 12V
• Power rating: 3A
• Switch action: On-Off-SPST
• Switch type: Push

Verified fitment details

• Nissan Pathfinder R51 series 2005-2012
• Nissan Navara D40 series 2008-2012
• Nissan Patrol GU4-7 series 2000-2012
• Nissan Patrol Y61 series 2013-current
• Nissan Patrol Y62 series 2013-current
• Nissan X-Trail T31 series 2007-2013

Application and Buying Notes

Check the part number TDR11003 against the vehicle and the control panel opening before ordering, because the switch is listed with a 35mm x 20mm mount size and a push-button, On-Off-SPST layout. Those dimensions are important if you are replacing an existing switch or fitting into a factory-style blank location.

The listed vehicle applications cover several Nissan models and series, but the exact dash layout and wiring arrangement can vary between vehicles. Use the supplied wiring code carefully: Black is earth, Blue is dash light circuit and is optional, Red is 12V input, and Green is 12V output. Matching the wiring to the intended accessory circuit is just as important as matching the panel size.

This switch is rated at 12V and 3A, so it should be treated as a control switch rather than a high-current load device. If the driving light circuit draws more than the switch rating, the switch will normally be used to trigger a relay or control circuit rather than carry the full load directly.

Because the item is specified as an OE style push button switch, it is best suited to installations where a neat factory-style appearance is preferred. The blue LED illumination may be useful for locating the switch in low light, but the dash-light connection is listed as optional, so the illumination arrangement should be confirmed during installation.

If you are replacing an existing switch, compare the physical size, switch action and connector wiring before purchase. For first-time installations, measure the available opening at 35mm x 20mm and confirm that the vehicle is one of the listed Nissan series before proceeding.

The one year warranty provides a basic level of coverage, but it does not replace the need to verify application details. Parts interpreters normally check model series, year range, mounting dimensions and wiring before recommending a switch like this one.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number TDR11003 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 2 FUSES BREAKERS RELAYS SWITCHES, Part No. TDR11003.

Additional published details for cross-checking include Brand THUNDER, Description Thunder OE Style Push Button Switch Driving Light, Suits Nissan, Mount Width 20mm, Switch Action On - Off - SPST, Mount Length 35mm, Item Type Switch, Weight .1kg, Product Group 1 AUTO ELEC ACCESSORIES.

Thunder OE Style Push Button Switch Driving Light, Suits Nissan. Part number TDR11003 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number TDR11003, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Please confirm fitment using part number TDR11003, the listed Nissan application range, the 35mm x 20mm mounting size, and the wiring details before purchase.

FAQ

What is the part number for this switch?

The part number is TDR11003.

What voltage does this switch use?

It is specified for 12V operation.

What is the current rating?

The listed power rating is 3A.

Which Nissan models are listed for fitment?

Listed applications are Pathfinder R51 series 2005-2012, Navara D40 series 2008-2012, Patrol GU4-7 series 2000-2012, Patrol Y61 series 2013-current, Patrol Y62 series 2013-current, and X-Trail T31 series 2007-2013.

What are the mounting dimensions?

The mount width is 20mm and the mount length is 35mm.

How is the switch wired?

The listed wiring code is Black: Earth, Blue: Dash light circuit (optional), Red: 12V input, and Green: 12V output.
