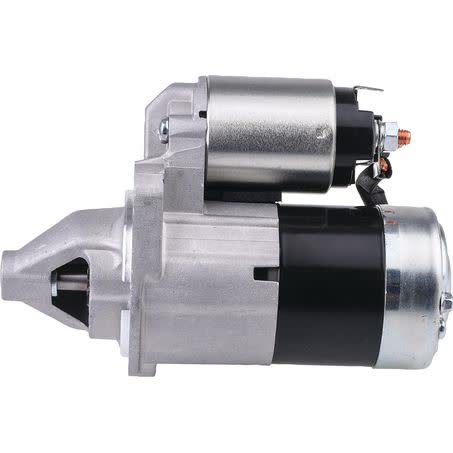

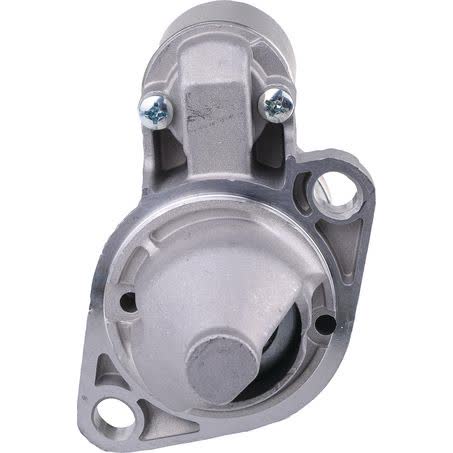

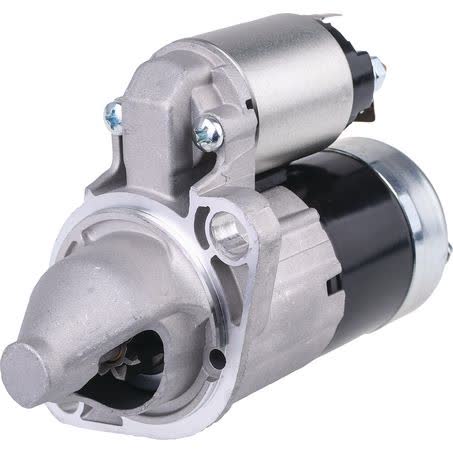

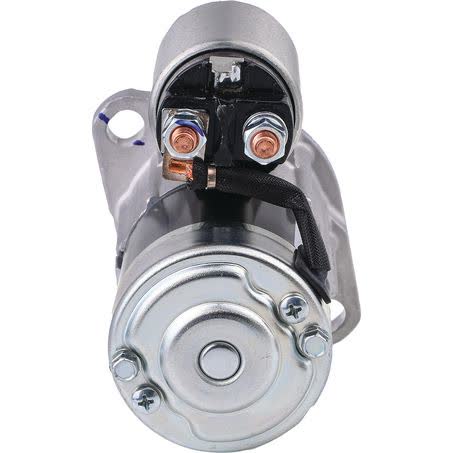

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS2017

The OEX starter motor MXS2017 is a new 12V unit with 8 teeth and clockwise rotation, described as Mitsubishi style. It is listed as a 2-hole starter mount with a 105mm mount centres A measurement, a 74mm flange diameter, and a 196mm overall length, so it is important to compare those mounting dimensions before ordering.

This starter is rated at 1.2kW and uses a pinion at rest measurement of 19mm, with a 28mm pinion diameter and 12mm mount hole diameter. It suits Mitsubishi applications and is noted as a dry clutch type, which makes the fitment and installation checks more specific than simply matching voltage alone.

OEX identifies this product as part of its rotating electrical range, sourced from original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The unit is sold each and carries a 3yr passenger / 1yr commercial warranty, so buyers should still confirm the application against the part number MXS2017 and the physical measurements provided.

Key Features

• New starter motor
• 12V electrical system
• 8 tooth pinion
• Clockwise rotation
• 2-hole starter mount
• Mitsubishi style unit

Specifications

• Brand: OEX
• Part No.: MXS2017
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole
• Mount centres A: 105mm

Known application guidance

• Suits unit make: Mitsubishi
• Applications supplied include Hyster, Komatsu, Sumitomo, TCM and Yale models
• The fitment list includes forklift and industrial applications such as Hyster H-25XM/35XM, Komatsu FG20 to FG30, Sumitomo forklift, TCM FCG15T8/18T8, TCM FCG20T7/23T7, TCM FCG25T7 and Yale FD/FG series models
• A note supplied with the part states that 8 and 11 tooth units will interchange

Application and Buying Notes

When matching this starter, the safest checks are the part number MXS2017, the 12V rating, the 8 tooth pinion, and the clockwise rotation. The mounting side also matters: this unit has a 2-hole mount, 105mm mount centres A, a 74mm flange diameter, and 12mm mount holes, so even a small difference in the housing or bolt pattern can affect fitment.

The listed 1.2kW power rating and 19mm pinion at rest help confirm that the starter is the correct physical and electrical type for the application. The note that 8 and 11T units will interchange is useful, but it should still be checked against the vehicle or machine build, because the rest of the dimensions and mount arrangement must align as well.

This is a Mitsubishi style starter motor and the supplied fitment coverage includes a range of forklift and industrial applications rather than a single vehicle model. If your original starter is different in length, flange size, mount hole size, tooth count or rotation, do not rely on appearance alone. Comparing the old unit against the 196mm overall length, 28mm pinion diameter and 2-hole mounting pattern is the practical way to reduce mistakes.

For commercial equipment, the warranty coverage differs from passenger use, with 3 years for passenger applications and 1 year for commercial applications. Because starter motors are installed in tight spaces and rely on correct engagement depth, it is worth checking the dry clutch arrangement, the pinion position, and the supplied application notes before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2017 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 8, Pinion at Rest 19mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, Note 8 and 11T units will interchange, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.78kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2017, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Hole Diameter 12, Overall Length 196mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2017 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2017, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE, HYSTER MAZDA ENGINE 1980, KOMATSU FG20, KOMATSU FG20 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number MXS2017, the 12V / 8 tooth / CW specification, and the measured mounting details before ordering. If your application is a Mitsubishi style starter used across forklift or industrial equipment, compare the existing unit carefully against the listed dimensions and application notes.

FAQ

What is the part number for this starter motor?

The part number is MXS2017.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise (CW) rotation.

How many teeth does the pinion have?

The pinion has 8 teeth. A note also states that 8 and 11 tooth units will interchange.

What mounting details are listed?

It is a 2-hole starter mount with 105mm mount centres A, a 74mm flange diameter, and 12mm mount hole diameter.

What applications are listed for this starter?

The supplied fitment coverage includes Mitsubishi applications and a range of forklift and industrial models from Hyster, Komatsu, Sumitomo, TCM and Yale.

What warranty is listed?

The warranty is listed as 3yr Passenger 1yr Commercial.
