Cole Hersee Toggle Switch Spdt On/on 12/24V Screw Terminals 5584BL

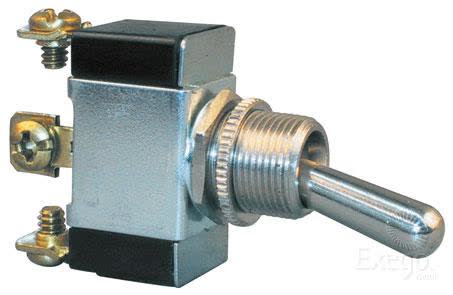

The Cole Hersee 5584BL is a 1-pole toggle switch with SPDT On / On action, designed for 12V and 24V applications. It is rated at 25A at 12V and 12A at 24V, making it suitable for a range of automotive electrical control jobs where a simple two-position switching arrangement is required.

This switch uses 3 screw terminals and silver contacts, with non-illuminated operation. The mount diameter is 12mm, the stem uses a 15/32-32 thread, and the stated stem dimensions are 12mm long by 12mm diameter. Panel thickness is listed at 6.35mm, so panel space and mounting depth should be checked before ordering.

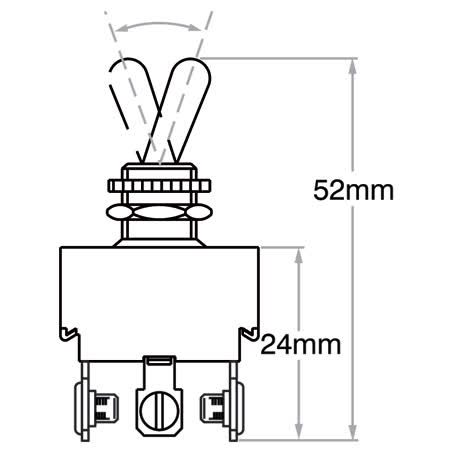

Overall dimensions are H29 x D53 x W16mm, with a 17mm handle and 3mm mount length. The unit is supplied as each and carries a one year warranty. For buyers replacing an existing switch, the part number 5584BL is the key identifier to compare against the original application and terminal arrangement.

Key Features

• Cole Hersee 5584BL toggle switch
• SPDT On / On action
• 12/24V dual voltage
• 25A at 12V, 12A at 24V
• 3 screw terminals
• Silver contacts

Specifications

• Brand: Cole Hersee
• Part No.: 5584BL
• Product type: Switch
• Switch type: Toggle
• Switch action: On - On - SPDT
• Number of poles: 1
• Number of positions: 2
• Number of terminals: 3

Application and Buying Notes

Before ordering, confirm that your original switch uses the same SPDT On / On function, since this model is a two-position toggle with 3 screw terminals. The terminal layout is a practical starting point when replacing an existing switch, but matching the switching action is just as important as matching the physical shape.

Check the mounting details carefully. This switch has a 12mm mount diameter, a 15/32-32 stem thread, and is listed for a 6.35mm panel thickness. If the panel hole size, thread, or panel thickness does not match, the switch may not seat correctly or may not clamp securely in place.

The electrical ratings matter as well. At 12V the switch is rated to 25A, and at 24V it is rated to 12A. Those figures are the practical limits to work within, so the connected circuit should be assessed before installation rather than assuming it is suitable for any high-current accessory.

The switch is non-illuminated and has silver contacts. If your original setup relies on a lamped switch face or a different terminal style, that needs to be checked separately. The handle is 17mm, and the full body dimensions are H29 x D53 x W16mm, so clearance behind the panel should also be confirmed.

For replacement work, the safest approach is to compare the part number 5584BL, the toggle style, the number of terminals, and the mounting dimensions against the existing unit. That is especially important where the switch is part of a factory panel or where access behind the dash is limited.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 5584BL helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 25, Voltage 12, Mount Diameter 12mm, Number of Poles 1, Switch Type Toggle, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Additional published details for cross-checking include Part No. 5584BL, Brand COLE HERSEE, Description Cole Hersee Toggle Switch SPDT On/On Screw Terminals, Number of Terminals 3, Switch Action On - On - SPDT, Lamp Colour/s Not Applicable, Mount Length 3mm, Number of Positions 2, Switch Illumination Non Illuminated, Product Group 1 AUTO ELEC ACCESSORIES.

Cole Hersee Toggle Switch SPDT On/On Screw Terminals. Part number 5584BL should be checked first. Listed voltage is 12. Listed output rating is 25. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 5584BL, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 25 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm fitment by comparing part number 5584BL, SPDT On / On action, 3 screw terminals, 12mm mount diameter, and the listed panel thickness and dimensions against your existing switch and application.
