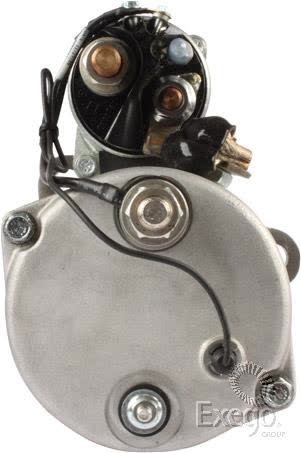

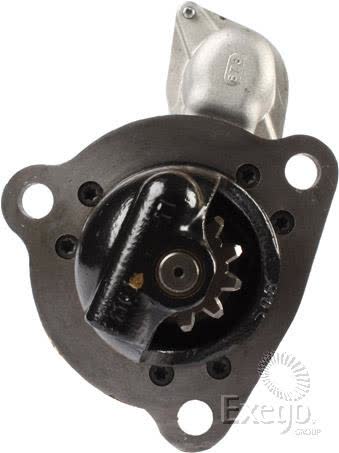

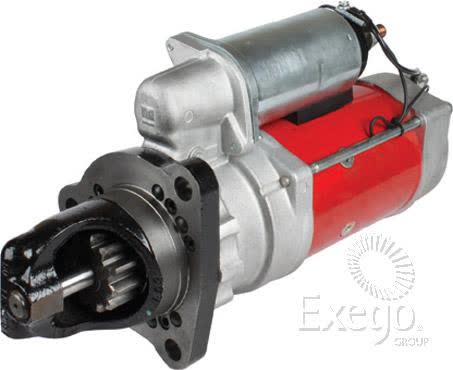

Delco Remy Starter Motor 12V 11 Tooth CW 44MT Part No. 8200750

The Delco Remy Starter Motor 12V 11 Tooth CW 44MT is a new starter motor for 12 volt applications, identified by part number 8200750. It is a 44MT unit with clockwise rotation, 11 teeth, and a 3 hole starter mount type, so it suits buyers who need those exact physical and electrical details matched before ordering.

Key dimensions for checking against the vehicle are 126mm mount centres A, 126mm mount centres B, 126mm mount centres C, a 92mm flange diameter, a 16mm mount hole diameter, and an overall length of 420mm. The pinion sits at rest at 48mm, with a 56mm pinion diameter, which makes it important to compare the starter-to-bellhousing and mounting layout carefully.

This unit is listed as new, with a power rating of 8.5kW and a weight of 19.18kg. It is described as suitable for wet or dry clutch applications, and the Delco Remy design notes state it is built to withstand harsh environments and designed in fit and performance to meet OE starters.

Key Features

• 12V starter motor
• 44MT unit
• Clockwise rotation
• 11 tooth pinion
• 3 hole starter mount
• New unit

Specifications

• Brand: Delco Remy
• Part No.: 8200750
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 8.5kW
• Starter mount type: 3 hole

Checked application references

• International 9000-Series applications are listed
• Kenworth C-Series applications are listed
• Kenworth K-Series applications are listed
• Kenworth T-Series applications are listed
• Western Star 4800 applications are listed
• Western Star 4900 applications are listed

Application and Buying Notes

Before ordering, compare the part number 8200750, the 44MT note, and the 12V CW configuration with the starter already fitted to the vehicle. The mounting pattern is a practical check point here because the unit uses a 3 hole starter mount with 126mm mount centres A, B and C, plus a 92mm flange diameter and 16mm mount hole diameter.

The electrical and mechanical ratings also matter. This starter is specified at 8.5kW with 11 teeth, a 56mm pinion diameter, and a 48mm pinion at rest, so matching only on voltage is not enough. Those dimensions need to align with the engine and bellhousing arrangement to avoid fitment issues.

The listed application families include International 9000-Series, Kenworth C-Series, Kenworth K-Series, Kenworth T-Series, Western Star 4800, and Western Star 4900. Even where a vehicle family is shown, it is still best practice to confirm the exact build and compare the original starter details, because truck specifications can vary within the same series.

This is a new Delco Remy starter motor and it carries a one year warranty. If you are replacing a worn unit, use the existing starter as the reference point for rotation, teeth count, mount centres, and overall length, since those physical details are often the most reliable way to confirm the correct replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8200750 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 8.5kW, Suits Unit Make Delco, Note 44MT.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. 8200750, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 11Th CW 44MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16.

Delco Remy Starter Motor 12V 11Th CW 44MT. Part number 8200750 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8200750, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005, INTERNATIONAL 9000-SERIES 2006, KENWORTH C-SERIES, KENWORTH C-SERIES 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 8200750, the 44MT designation, 12V clockwise rotation, 11 teeth, and the mounting dimensions against the unit being replaced. The listed application references should be treated as a guide only, not a substitute for checking the actual starter on the vehicle.

FAQ

Is this a new or remanufactured starter motor?

It is listed as new. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter is clockwise rotation, shown as CW. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.

What are the key mounting dimensions?

The unit has 126mm mount centres A, B and C, a 92mm flange diameter, a 16mm mount hole diameter, and a 3 hole starter mount type. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.

What vehicles are shown in the listed application references?

The listed application references include International 9000-Series, Kenworth C-Series, Kenworth K-Series, Kenworth T-Series, Western Star 4800, and Western Star 4900. For this listing, part number 8200750 is the main reference point. Listed voltage is 12. Published fitment references include INTERNATIONAL 9000-SERIES, INTERNATIONAL 9000-SERIES 2004, INTERNATIONAL 9000-SERIES 2005. These details should still be checked against the original unit before ordering.
