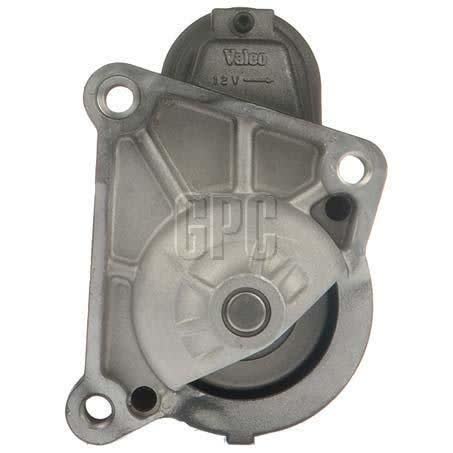

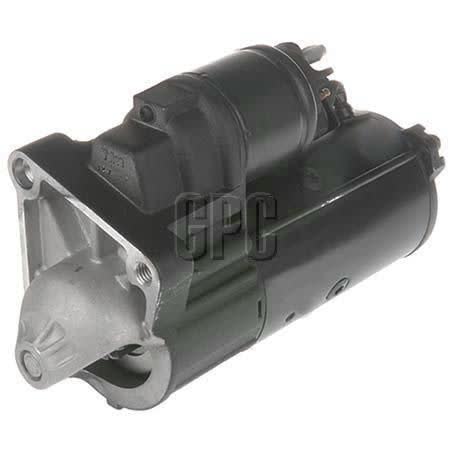

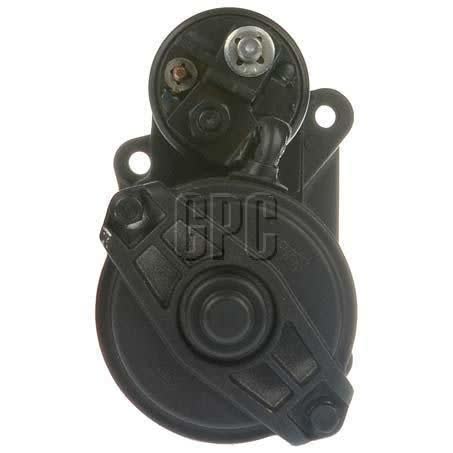

Valeo Starter Motor 12V 11-TOOTH CW 1.7KW Part No. 432672

This Valeo starter motor is a new 12V unit with a 1.7kW power rating, 11 teeth, and clockwise rotation. It is listed under part number 432672 and uses a 3-hole starter mount type, so the mounting pattern and drive direction are key checks before ordering.

Measured dimensions include 106mm mount centres A, 93mm mount centres B, and 75mm mount centres C, with a 65mm flange diameter and a 337mm overall length. The pinion diameter is 28mm, the nose cone length is 35mm, and the pinion at rest is recorded as -1mm.

Valeo is identified here as the brand and the unit is described as new, not remanufactured. It is a dry clutch design, weighs 4.01kg, and carries a one year warranty. For buyers matching an existing starter, the most important identifiers are the 12V system, 11-tooth count, CW rotation, and part number 432672.

Key Features

• 12V starter motor
• 1.7kW power rating
• 11-tooth pinion
• Clockwise rotation
• 3-hole starter mount type
• New unit

Specifications

• Part No.: 432672
• Brand: Valeo
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Known application notes

• Renault 19
• Renault 19 1988
• Renault 19 1989
• Renault 19 1990
• Renault 19 1991
• Renault 19 1992
• Renault 19 1993
• Renault 19 1994

Application and Buying Notes

When comparing this starter to the one already fitted, check the part number 432672 first, then confirm the electrical and mechanical details: 12V, 1.7kW, 11 teeth, and clockwise rotation. Those points matter as much as the physical dimensions, because a starter that looks similar can still differ in mounting pattern or drive configuration.

The mounting measurements on this unit are specific: 106mm mount centres A, 93mm mount centres B, and 75mm mount centres C, with a 65mm flange diameter and a 3-hole mount type. The overall length is 337mm, and the nose cone length is 35mm, so these dimensions should be checked against the removed starter or the vehicle’s application details before purchase.

If you are replacing a Valeo starter already in service, the listed brand and application notes can help narrow the match, but they should not replace a direct comparison of the original unit. The fitment preview includes Renault 19 applications across 1988 to 1995, which is useful context, yet the safest approach is still to verify the starter against the exact vehicle, engine setup, and the unit being removed.

This starter is a new dry-clutch unit with a 28mm pinion diameter and a pinion at rest of -1mm. Those specifications are part of the physical match, not just the performance side, and they can affect engagement and clearance. If the old starter shows different tooth count, rotation, or mounting dimensions, it should be treated as a different part rather than a close substitute.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 432672 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 106mm, Mount Centres C 75mm, Number of Teeth 11, Pinion at Rest -1mm, Power Rating 1.7kW, Suits Unit Make Valeo, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Clamp NO, Weight 4.01kg, Product Group 1 ROTATING ELECTRICAL, Part No. 432672, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 65mm, Mount Centres B 93mm, Nose Cone Length 35mm.

Valeo Starter Motor 12V 11Th CW. Part number 432672 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 432672, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989, RENAULT 19 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 432672, the 12V system, 11-tooth CW configuration, 3-hole mount, and all listed dimensions against the original starter and vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is 432672. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter?

It is listed as new, not remanufactured. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed mount centres are 106mm for A, 93mm for B, and 75mm for C. It also uses a 3-hole starter mount type and has a 65mm flange diameter. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.

What warranty is provided?

The warranty listed for this unit is one year. For this listing, part number 432672 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT 19, RENAULT 19 1988, RENAULT 19 1989. These details should still be checked against the original unit before ordering.
