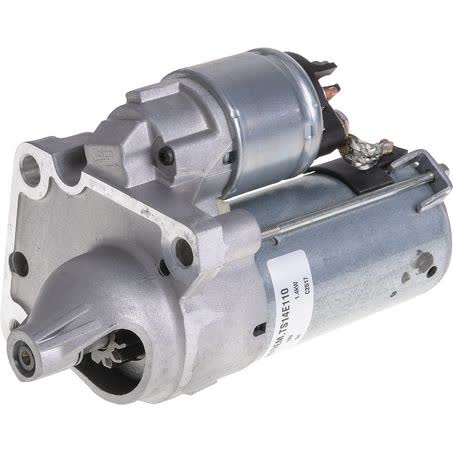

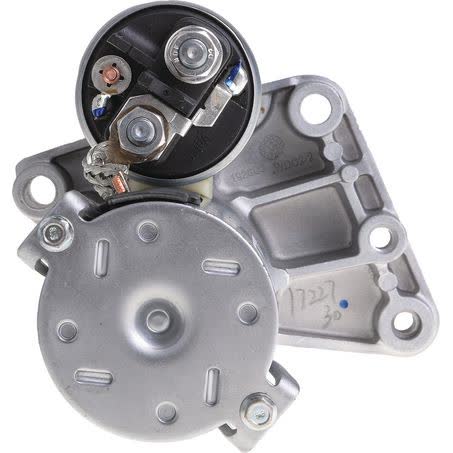

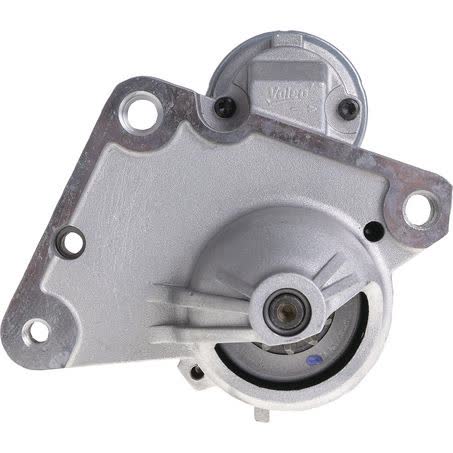

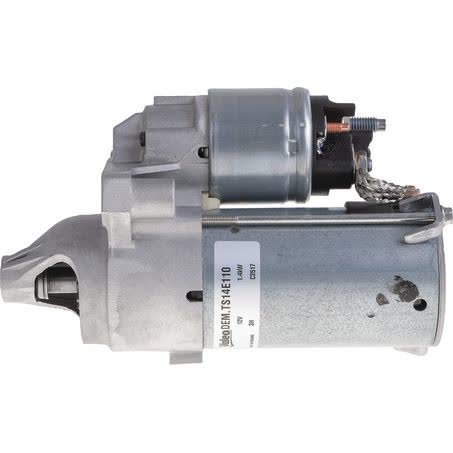

Valeo Starter Motor 12V 11 Tooth CW Part No. 438336

The Valeo starter motor listed here is a 12V unit with 11 teeth and clockwise rotation, identified by part number 438336. It is a new starter motor, supplied each, and it carries a one year warranty. For buyers matching a replacement starter, the core checks here are the 12V electrical system, 11 tooth pinion, CW rotation, and the mounting dimensions.

Key physical measurements for comparison are mount centres A 125mm, mount centres B 75mm, and mount centres C 92mm. The starter uses a 4 hole mount, M10 mount hole diameter, a 66mm flange diameter, and a 46mm nose cone length. Overall length is 197mm, pinion diameter is 29mm, and pinion at rest is 15mm.

This Valeo starter motor is rated at 1.4kW and weighs 3kg. It is listed for dry clutch applications and is described as a Valeo unit, with the brand shown as VALEO and the unit make noted as Valeo. Those details matter when you are comparing the original part or checking the replacement against the vehicle’s existing starter setup.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• 4 hole starter mount

Specifications

• Brand: Valeo
• Product type: Starter motor
• Part No.: 438336
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 4 hole

Application and Buying Notes

Before ordering, compare the part number 438336, the 12V rating, and the 11 tooth CW configuration with the starter being replaced. Those are the most reliable first checks for a starter motor, especially when the vehicle has had previous repairs or an exchange unit fitted.

The mounting layout should also be checked carefully. This unit is a 4 hole starter with mount centres A 125mm, B 75mm, and C 92mm, plus an M10 mount hole diameter and a 66mm flange diameter. If any of those figures differ from the removed starter, the unit may not match the application.

Physical size matters as well. The nose cone length is 46mm, overall length is 197mm, pinion diameter is 29mm, and the pinion at rest is 15mm. These dimensions help when comparing clearance, nose engagement, and housing alignment against the existing starter and bellhousing area.

This is a Valeo new starter motor, not a remanufactured unit, and it is supplied with a one year warranty. If your original starter has a different rotation, tooth count, or mounting pattern, do not rely on the brand name alone. Match the measurements and part number before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438336 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 125mm, Mount Centres C 92mm, Nose Cone Length 46mm, Overall Length 197mm, Pinion Diameter 29mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 4 Hole, Weight 3kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438336, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 66mm, Mount Centres B 75mm, Mount Hole Diameter M10, Number of Teeth 11.

Valeo Starter Motor 12V 11Th CW. Part number 438336 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438336, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm compatibility using part number 438336, 12V specification, 11 tooth clockwise rotation, and the mounting dimensions before ordering. If the removed starter does not match these details, check the vehicle application and the original unit carefully.

FAQ

What type of part is this?

It is a Valeo starter motor, supplied new and sold each. The listed part number is 438336. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What electrical specification does it have?

The starter motor is rated at 12V and 1.4kW. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise, shown as CW. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It is a 4 hole starter with mount centres A 125mm, B 75mm, and C 92mm. The mount hole diameter is M10 and the flange diameter is 66mm. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is a warranty listed?

Yes. The listed warranty is one year. For this listing, part number 438336 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
