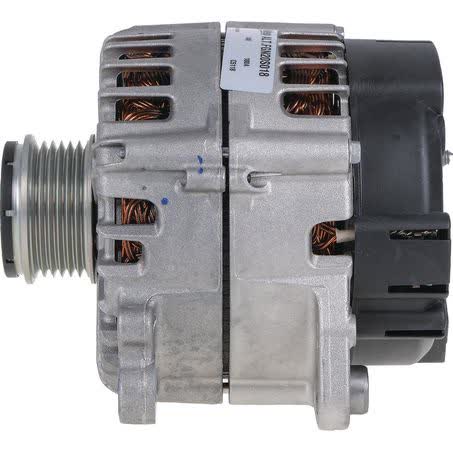

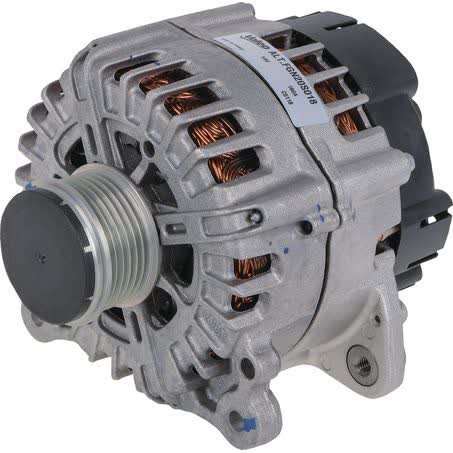

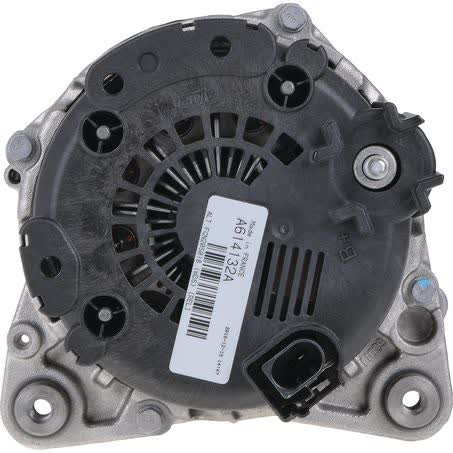

Valeo Alternator 12V 180A 439800

Valeo alternator, 12V and 180A output, part number 439800. This is a new unit with an internal regulator, four-point mounting, and a quad leg alternator mount, made for applications that use a 6 groove pulley and the listed Valeo mounting pattern.

Key dimensions are 59mm inside mounting legs, 90mm mount centres, 8.5mm adjusting hole diameter, and 8 / M8 pivot hole diameter. The pulley outside diameter is 57mm, and the unit is listed with R 90 position / degree.

The alternator is supplied as a Valeo unit and carries a one year warranty. It is also identified with pin code IR228 and no connector for revolution counter. For the correct replacement, the part number 439800 and the measured mounting details should be checked against the original unit before purchase.

Key Features

• 12V alternator with 180A charge current
• New unit, not remanufactured
• Internal regulator
• 6 groove pulley
• Quad leg mounting with four-point fastening
• No connector for revolution counter

Specifications

• Part No.: 439800
• Brand: Valeo
• Type: Alternator
• Voltage: 12V
• Power Rating: 180A
• Alternator Charge Current: 180A
• Pulley Section: 6 groove
• Pulley Outside Diameter: 57mm

Fitment guidance

• Supplied fitment references include Audi A4, Audi A5, Audi A6, Audi A6 Allroad, Audi A7, Audi Q5, and Porsche Macan.
• Sample applications shown include Audi A4 2011 to 2015 and Porsche Macan 2014 to 2018.
• Fitment should still be confirmed against the original alternator part number and mounting measurements before ordering.

Application and Buying Notes

The main identifiers for this alternator are Valeo part number 439800, 12V voltage, and 180A charge output. Those details need to line up with the vehicle’s electrical requirement and the original unit, especially where the charging system uses an internal regulator and a 6 groove pulley.

Mounting details matter just as much as the electrical rating. This unit is listed with 59mm inside mounting legs, 90mm mount centres, 8.5mm adjusting hole diameter, 8 / M8 pivot hole diameter, and quad leg four-point mounting. If the existing alternator does not match those measurements, the part may not install correctly even if the brand appears familiar.

The pulley and connector details also need checking. The pulley outside diameter is 57mm, the pulley section is 6 groove, and the unit is listed with no connector for revolution counter. Those points can affect belt alignment and electrical connection compatibility, so it is worth comparing them directly with the removed alternator before fitting.

Where a vehicle appears in the fitment list, treat that as a starting point rather than the final check. Audi A4, A5, A6, A6 Allroad, A7, Q5, and Porsche Macan applications are referenced, but the exact match still depends on the original part number, mounting pattern, and alternator configuration fitted to the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 439800 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 59mm, Pin Code IR228, Power Rating (Amp) 180, Pulley Section 6 Groove, Suits Unit Make Valeo, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Position / Degree R 90, Connector / Clamp No Connector for Revolution Counter, Product Group 2 ALTERNATORS, Part No. 439800, Brand VALEO, Description Valeo Alternator 12V 180A, Adjusting Hole Diameter 8.5, Mount Centres B 90mm, Pivot Hole Diameter 8 / M8.

Valeo Alternator 12V 180A. Part number 439800 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 439800, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A4, AUDI A4 2011, AUDI A4 2012, AUDI A4 2013, PORSCHE MACAN, PORSCHE MACAN 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using Valeo part number 439800, the 12V 180A rating, the 6 groove pulley, and the listed mounting dimensions before buying. Vehicle fitment should be checked against the original alternator and application details, as matching model names alone is not enough to confirm the correct part.

FAQ

Is this alternator new or remanufactured?

This alternator is listed as new.

What is the output rating?

It is rated at 12V and 180A charge current.

Does it use an internal regulator?

Yes. The regulator type is listed as internal.

What pulley style does it have?

It has a 6 groove pulley, with a pulley outside diameter of 57mm.

What mounting details should I check before ordering?

Check the 59mm inside mounting legs, 90mm mount centres, 8.5mm adjusting hole diameter, 8 / M8 pivot hole diameter, and four-point quad leg mounting.

Which vehicles are referenced in the fitment information?

The fitment references include Audi A4, Audi A5, Audi A6, Audi A6 Allroad, Audi A7, Audi Q5, and Porsche Macan, with sample applications shown for Audi A4 2011 to 2015 and Porsche Macan 2014 to 2018.
