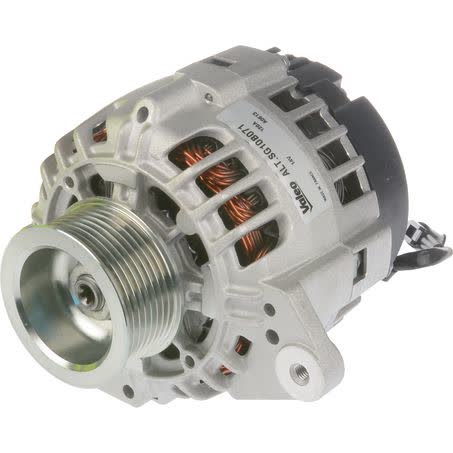

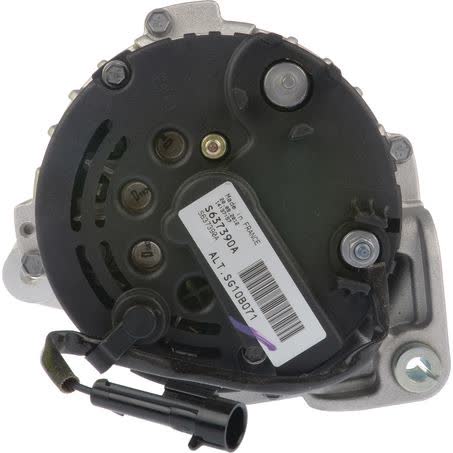

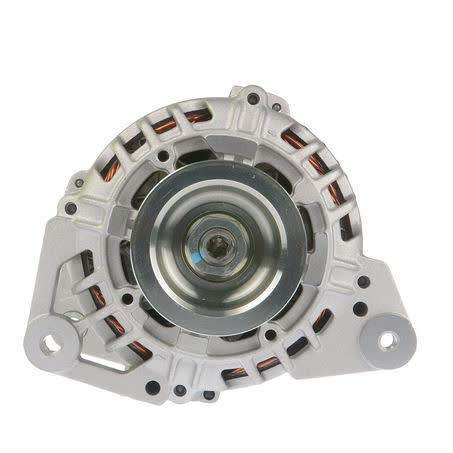

Valeo Alternator 12V 120A 439826

Valeo alternator, 12V and 120A output, part number 439826. It is listed as a new unit, supplied each, with an internal regulator and twin leg alternator mount. The pulley is 8 groove, with a 67mm outside diameter, and the unit weight is 5.915kg.

This alternator is noted as suitable for Carraro 70V with F5C engine. The connector/clamp is listed as with Revcounter Coupling, and the fastening type is three-point mounting. Inside mounting legs are 82mm, with mount centre to centre at 148mm.

For anyone replacing a charging unit, the key identifiers here are Valeo brand, 12 volt system, 120 amp charge current, and part no. 439826. Those details matter when matching the alternator to the vehicle’s charging setup, pulley arrangement, and mounting points.

A one year warranty is listed. As with any alternator replacement, the safest approach is to compare the part number, mounting style, pulley groove count, and connector arrangement against the original unit before ordering.

Key Features

• Valeo alternator
• 12V, 120A output
• New unit
• Internal regulator
• 8 groove pulley
• Twin leg mount

Specifications

• Part No.: 439826
• Brand: Valeo
• Voltage: 12V
• Power rating / charge current: 120A
• New / Reman.: New
• Unit of measure: Each
• Warranty: One year
• Alternator mount: Twin leg

Fitment guidance

• Suitable for Carraro 70V with F5C engine.
• Fitment data also references Carraro, Case IH, Challenger, John Deere, Landini, Manitou, McCormick, New Holland, Terex and Wacker Neuson applications in the supplied records.
• Known application examples include Carraro Agricube, Case IH Farmall, Case IH JX-Series, Case IH Maxxum, Challenger MT, John Deere Series 5, Landini Landforce, Manitou MT1335, McCormick D-Max Series, New Holland 8160, New Holland C185 and New Holland C227.
• Do not rely on brand or model family alone; compare the part number, mounting points, pulley, and connector style on the original alternator.

Application and Buying Notes

When replacing an alternator, the most important checks are the part number 439826, the 12V system rating, and the 120A output. Those three details need to align with the vehicle’s charging system before you move on to the physical fitment points.

This unit uses an 8 groove pulley with a 67mm outside diameter, so belt type and pulley alignment should be checked against the removed alternator. The mounting arrangement is twin leg with three-point mounting, 82mm inside mounting legs, and 148mm mount centre to centre, which are the measurements that help confirm whether the unit will sit correctly in place.

The connector is listed as with Revcounter Coupling and the regulator is internal. If the original alternator uses a different connector arrangement or external regulation, it should be matched carefully before installation. The adjusting hole is M8 and the pivot hole diameter is 8, which are further points to compare against the existing hardware.

The product is listed as new and supplied with one year warranty. Even when the application range appears broad in the records, alternator fitment should still be confirmed by the original unit details, not only by tractor or machine model name. This is especially important where engines, charging systems, or mounting brackets vary within the same model family.

If you are replacing a charging fault, check the belt condition, pulley alignment, and wiring connections at the same time. An alternator that is correct in output and mounting still needs the surrounding components to be in serviceable condition for the charging system to operate properly.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 439826 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 82mm, Power Rating (Amp) 120, Pulley Section 8 Groove, Suits Unit Make Valeo, Alternator Mount Twin Leg, New / Reman. New, Position / Degree R 60,2.

Additional published details for cross-checking include Connector / Clamp with Revcounter Coupling, Product Group 2 ALTERNATORS, Part No. 439826, Brand VALEO, Description Valeo Alternator 12V 120A, Adjusting Hole Diameter M8, Pivot Hole Diameter 8, Pulley Outside Diameter 67mm, Regulator Type Internal.

Valeo Alternator 12V 120A. Part number 439826 should be checked first. Listed voltage is 12. Listed output rating is 120. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 439826, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 120 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number 439826, the 12V 120A specification, twin leg mounting, 8 groove pulley, and Revcounter Coupling connector before ordering.

FAQ

What is the part number for this alternator?

The part number listed is 439826.

What voltage and output does it have?

It is a 12V alternator with a 120A charge current rating.

Is this a new or remanufactured unit?

It is listed as a new alternator.

What pulley setup does it use?

It has an 8 groove pulley with a 67mm outside diameter.

What mounting details are listed?

The alternator is listed with twin leg mounting, three-point mounting, 82mm inside mounting legs, and 148mm mount centre to centre.

What vehicle application is specifically noted?

The specific application noted is Carraro 70V with F5C engine. Additional fitment records reference several other machine families, but those should still be checked against the original alternator details before purchase.
