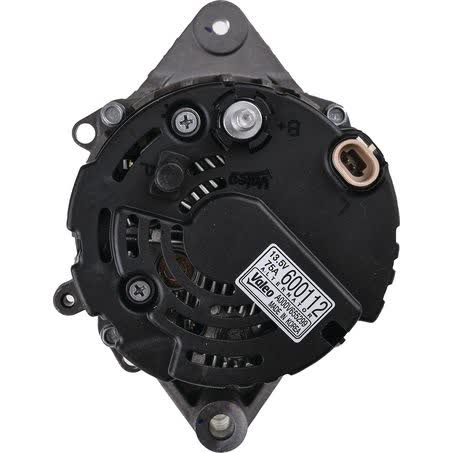

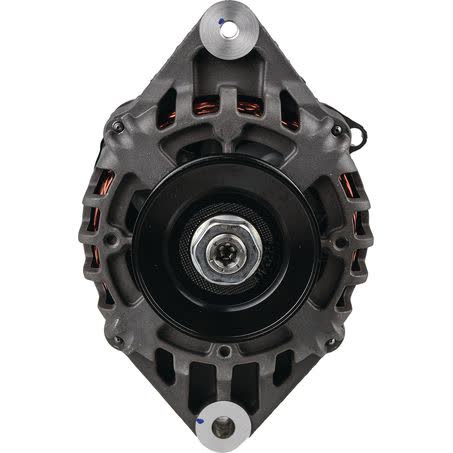

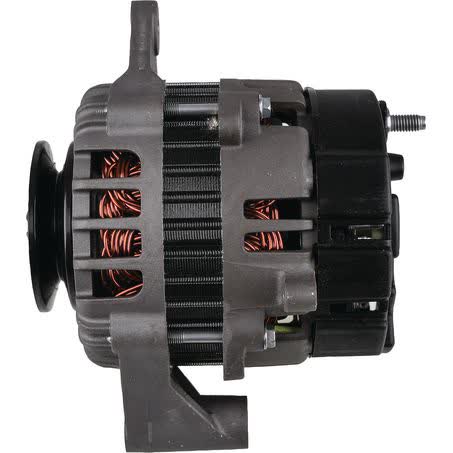

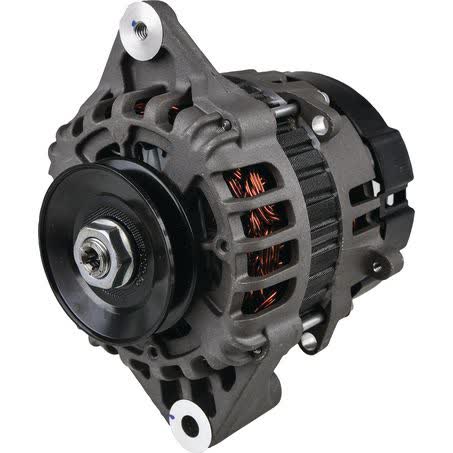

Valeo Alternator 12V 75A Part No. 600112

The Valeo alternator listed here is a 12V, 75A unit, supplied new and identified with part number 600112. It carries an internal regulator and is noted as environmentally coated, which are useful checkpoints when matching a replacement alternator for the correct electrical setup.

This alternator uses a single leg mount with double pivot lever fastening, a 51mm mount leg thickness, and a 168mm mount centre-to-centre measurement. Those mounting details matter because they affect physical installation as much as the electrical rating of 75 amps.

The pulley specification is a 72.5mm outside diameter with an A section pulley profile, and the unit weighs 4.58kg. It is described as suitable for Volvo Penta propulsion AQD40A engine applications, so matching the application and the mounting dimensions is important before purchase.

Key Features

• Valeo alternator
• 12V system
• 75A charge current
• New unit
• Internal regulator
• Single leg mount

Specifications

• Part No.: 600112
• Brand: Valeo
• Type: Alternator
• Voltage: 12V
• Power rating: 75A
• Alternator charge current: 75A
• Regulator type: Internal
• Mount type: Single Leg

Checked Fitment Application

• Volvo Penta propulsion AQD40A engine
• VOLVO MARINE/PENTA AQD40A
• VOLVO MARINE/PENTA AQD40A 1977

Application and Buying Notes

Before ordering, confirm the alternator part number 600112 and compare the physical mounting points against your existing unit. The important checks here are the single leg mount, double pivot lever fastening, 51mm mount leg thickness, 168mm centre-to-centre mounting measurement, and the 9mm pivot hole and M8 adjusting hole.

The electrical specification is 12V with a 75A output, so it should only be compared with a replacement or original unit that matches the same system voltage and output requirement. An internal regulator is fitted, which is another detail to verify against the alternator currently on the engine.

The pulley specification is also worth checking carefully. This unit has a 72.5mm outside diameter pulley with an A section profile, so belt match-up should be confirmed before fitting. A mismatched pulley can create installation issues even where the part number and amperage appear close.

The listed application is Volvo Penta propulsion AQD40A engine. That application detail is the best fitment reference supplied, but marine and engine-mounted electrical parts can vary with build specification, so matching by part number and physical dimensions remains the safest approach.

The one year warranty applies to the alternator as supplied. Keep the purchase record and check the unit on receipt for the correct part number, mounting style, and pulley profile before installation, especially where the alternator is being used as an exact replacement rather than a general equivalent.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 600112 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 51mm, Pivot Hole Diameter 9, Pulley Outside Diameter 72.5mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

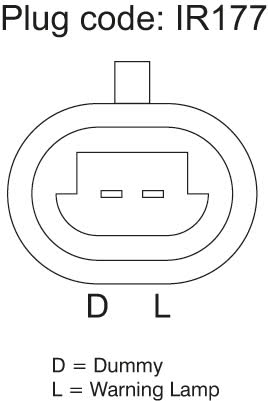

Additional published details for cross-checking include Fastening Type Double Pivot Lever, Product Group 2 ALTERNATORS, Part No. 600112, Brand VALEO, Description Valeo Alternator 12V 75A, Adjusting Hole Diameter M8, Pin Code IR177, Power Rating (Amp) 75, Pulley Section A.

Valeo Alternator 12V 75A. Part number 600112 should be checked first. Listed voltage is 12. Listed output rating is 75. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 600112, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number 600112, 12V/75A specification, single leg mount, 72.5mm A section pulley, and the listed Volvo Penta propulsion AQD40A application before ordering.

FAQ

What is the part number for this alternator?

The part number is 600112. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 75A power rating and 75A charge current. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.

Is it new or remanufactured?

It is listed as new. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.

What type of regulator is fitted?

It has an internal regulator. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.

What application is listed for this alternator?

It is listed as suitable for Volvo Penta propulsion AQD40A engine applications, including VOLVO MARINE/PENTA AQD40A references supplied with the product data. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.

What should I check before buying?

Match part number 600112, the 12V 75A rating, single leg mount, double pivot lever fastening, 72.5mm A section pulley, and the listed Volvo Penta propulsion AQD40A application against your existing unit. For this listing, part number 600112 is the main reference point. Listed voltage is 12. Listed output rating is 75. Published fitment references include VOLVO MARINE/PENTA AQD40A, VOLVO MARINE/PENTA AQD40A 1977. These details should still be checked against the original unit before ordering.
