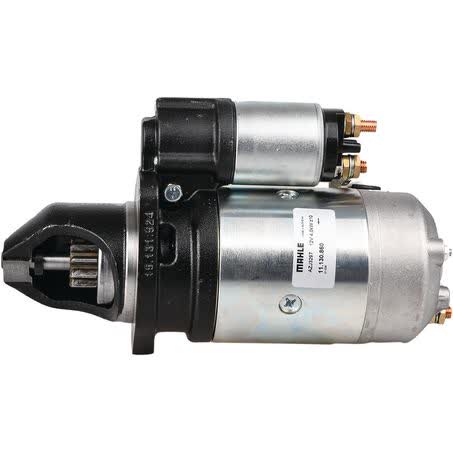

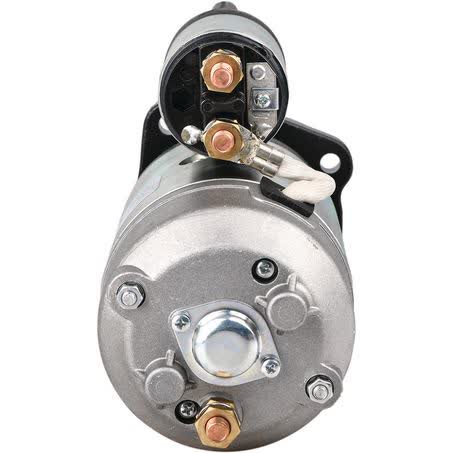

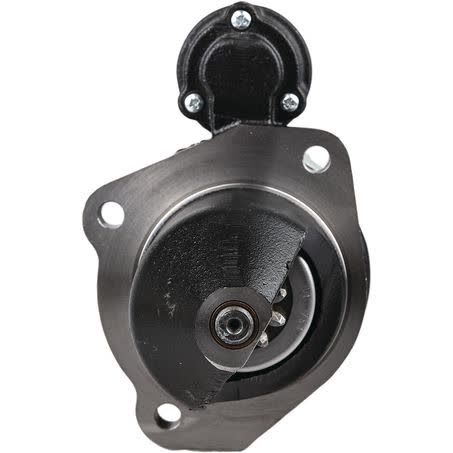

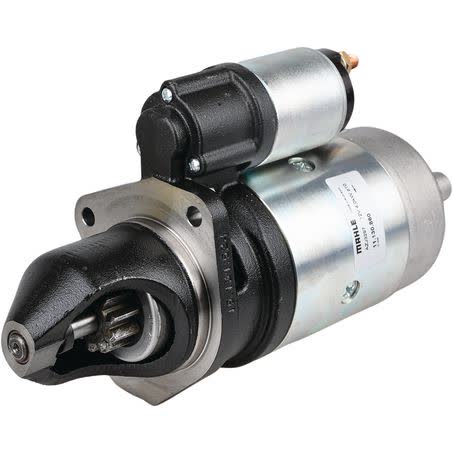

Mahle Starter Motor 12V 10 Tooth CW MS365

The Mahle MS365 starter motor is a new 12V unit with clockwise rotation and a 10 tooth pinion. It is listed as a 4kW starter motor and suits Mahle applications, so matching the part number and physical mounting details is the first step before ordering.

Key measurements include 127mm mount centres, 90mm mount centres at the other listed positions, a 335mm overall length, 89mm flange diameter, 40mm pinion diameter, and 48mm pinion at rest. It uses a 3 hole starter mount type, with 11mm mount hole diameter and clamp 31.

This starter is described as suitable for wet or dry clutch applications and carries a one year warranty. It is intended for buyers who need the MS365 reference, 12V electrical specification, and clockwise rotation rather than a generic replacement starter motor.

Key Features

• New Mahle starter motor
• 12V electrical system
• 10 tooth pinion
• Clockwise rotation
• 4kW power rating
• 3 hole starter mount

Specifications

• Part No.: MS365
• Brand: Mahle
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 4kW
• Rotation: CW
• Number of teeth: 10
• New / Reman.: New

Verified fitment references

• BELARUS 1222 JOHN DEERE ENG
• CASE 2400GD
• CASE 633A
• CASE 640A
• CATERPILLAR 317
• CATERPILLAR 910F
• CATERPILLAR 931B
• CATERPILLAR 933C

Application and Buying Notes

Before fitting, compare the MS365 part number, the 12V rating, the 10 tooth pinion, and the clockwise rotation against the original unit. These are the main identifiers that separate this starter from similar looking units, especially where the machine family is listed across different makes and models.

The mounting dimensions matter just as much as the electrical rating. Check the 127mm mount centres, 90mm mount centres, 3 hole starter mount, 11mm mount hole diameter, 89mm flange diameter, and 335mm overall length against the starter being removed. If any of these differ, the unit may not bolt up correctly even if the part looks close.

The listed 4kW power rating and wet or dry clutch note make this a substantial starter motor application, but they do not replace a direct parts check. Use the vehicle application, the existing starter, and the measured dimensions together, particularly on equipment where similar model names can use different starter variants.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS365 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 4kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Clamp 31, Bore O 1 10.9, Tooth Pitch 15.42, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 13240, Product Group 1 ROTATING ELECTRICAL, Part No. MS365, Brand MAHLE.

Mahle Starter Motor 12V 10Th CW. Part number MS365 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS365, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A, CASE 640A, CASE IH, CATERPILLAR 317. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching the MS365 part number, 12V specification, clockwise rotation, 10 tooth pinion, and all mounting dimensions against the original starter and vehicle application before purchase.

FAQ

What is the part number for this starter motor?

The listed part number is MS365. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.

What voltage does it use?

This starter motor is 12V. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 10 teeth. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.

What rotation does the starter motor have?

It is clockwise rotation, shown as CW. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.

Does it suit wet or dry clutch applications?

Yes. The listing states wet or dry clutch. For this listing, part number MS365 is the main reference point. Listed voltage is 12. Published fitment references include BELARUS 1222 JOHN DEERE ENG, CASE 2400GD, CASE 633A. These details should still be checked against the original unit before ordering.
