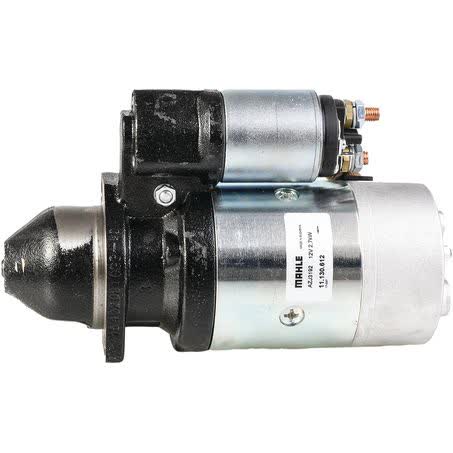

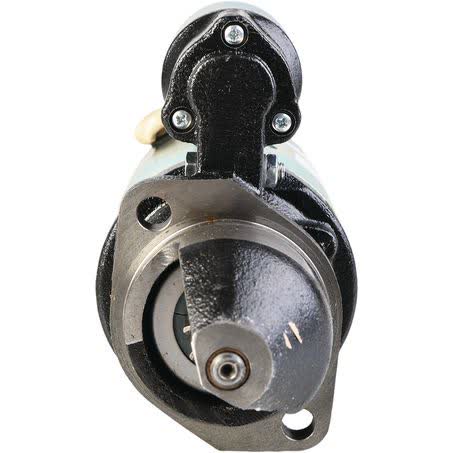

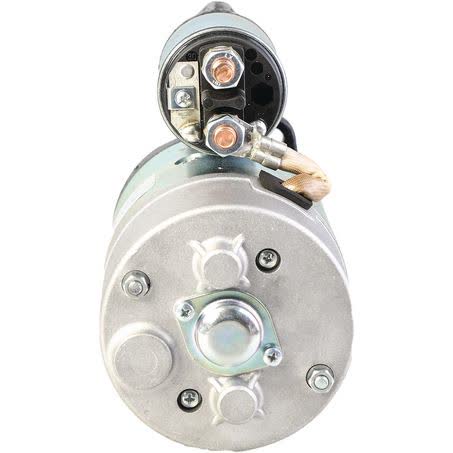

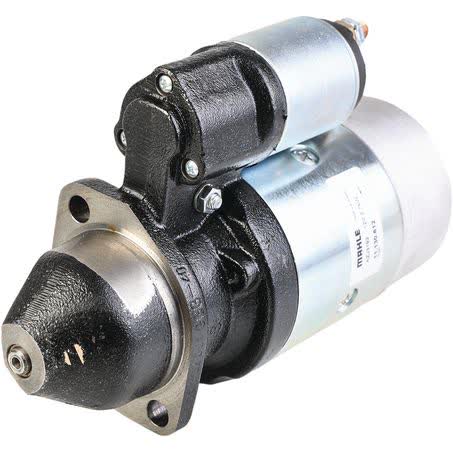

Mahle Starter Motor 12V 9 Tooth CW MS313

The Mahle MS313 is a new 12V starter motor with clockwise rotation, a 9-tooth pinion, and a 2.7kW power rating. It is listed as a starter motor for rotating electrical applications and is supplied as a single each unit.

Key physical details include a 2-hole starter mount, 105mm mount centres, a 293mm overall length, and a 82mm flange diameter. The pinion diameter is 34.8mm, the pinion at rest is 21mm, and the flywheel depth is listed at 24.0, which are all important checks when matching the unit to an existing setup.

This starter is identified as Mahle part number MS313 and is described as 12V 9th CW. The unit carries a one-year warranty and is supplied new, so it suits buyers looking to replace a compatible starter motor with matching electrical and mounting details.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9-tooth pinion
• 2.7kW power rating
• New unit
• 2-hole starter mount

Specifications

• Brand: Mahle
• Product type: Starter motor
• Part No.: MS313
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.7kW
• Starter mount type: 2 hole

Fitment guidance

• AGRIA 6900D
• DEUTZ F2L511
• DEUTZ-FAHR D07
• FENDT FARMER
• FENDT FAVORIT
• FENDT GT
• LOMBARDINI 5LD675.2
• LOMBARDINI 5LD675.3

Application and Buying Notes

When checking this Mahle MS313 starter motor against a vehicle, the most important details are the 12V system, clockwise rotation, 9-tooth pinion, and the 2-hole mounting arrangement with 105mm mount centres. Those points need to line up with the existing starter and the application on the vehicle, not just the general engine family name.

The physical dimensions matter as much as the electrical rating. The 293mm overall length, 82mm flange diameter, 34.8mm pinion diameter, 21mm pinion-at-rest measurement, and 24.0 flywheel depth are practical fit checks that help avoid installation issues. If any of those dimensions differ from the original unit, the starter may not sit correctly or mesh as intended.

The 2.7kW rating gives a useful comparison point when matching like for like, but it should be treated as one part of the selection process rather than the only one. Confirm the Mahle part number MS313, the mounting bore sizes, and the tooth count before ordering, especially where the vehicle has been converted, repaired, or fitted with a non-original starter in the past.

This unit is listed as new and supplied with a one-year warranty. That provides a straightforward replacement option, but the buyer still needs to confirm the vehicle application carefully. Starter motors can look similar across different engines and model ranges, so the part number and dimensions remain the safest references.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS313 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 21mm, Power Rating 2.7kW, Suits Unit Make Mahle, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Bore O 1 13.5, Tooth Pitch 14.36, Mounting points diameter 105.0, Packaging width 21.50, Net Weight 12082, Product Group 1 ROTATING ELECTRICAL, Part No. MS313, Brand MAHLE, Description Mahle Starter Motor 12V 9Th CW, Flange Diameter 82mm.

Mahle Starter Motor 12V 9Th CW. Part number MS313 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS313, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511, DEUTZ F2L511 1963, DEUTZ-FAHR D07, DEUTZ-FAHR D07 1981. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using Mahle part number MS313, 12V CW rotation, 9 teeth, 2-hole mounting, 105mm mount centres, and the listed dimensions before purchase. Vehicle application names are provided as a guide only and should be matched against the existing starter and installation measurements.

FAQ

What is the part number for this starter motor?

The Mahle part number is MS313. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.

Is this starter motor 12V or 24V?

It is a 12V starter motor. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

It is clockwise rotation, shown as CW. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.

What mounting setup does it use?

It uses a 2-hole starter mount with 105mm mount centres and 105.0 mounting points diameter. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new and includes a one-year warranty. For this listing, part number MS313 is the main reference point. Listed voltage is 12. Published fitment references include AGRIA 6900D, AGRIA 6900D 1970, DEUTZ F2L511. These details should still be checked against the original unit before ordering.
