Mahle Alternator 12V 70A MG216

The Mahle alternator listed here is a 12V, 70A unit, new condition, supplied as each. It carries part number MG216 and uses an internal regulator, which is an important check when matching to the vehicle’s charging setup.

Physical mounting details matter with alternators, and this unit is specified with twin leg alternator mount, 82mm inside mounting legs, 82mm mounting bores distance, 149mm mount centre to centre, and 8mm pivot and adjusting hole diameters. It is supplied without a belt pulley.

Connector and fitment details are also defined here: connector/clamp W, 60.0 degree connecting angle, 17mm shaft diameter, and a 86.0 mounting points diameter. These measurements are the practical points to compare against the existing alternator before ordering.

Key Features

• 12V alternator with 70A output
• New unit, supplied each
• Internal regulator type
• Twin leg alternator mount
• Without belt pulley
• Connector/clamp type W

Specifications

• Brand: Mahle
• Product type: Alternator
• Voltage: 12V
• Power rating: 70A
• Alternator charge current: 70A
• Regulator type: Internal
• New / remanufactured: New
• Warranty: One year

Known application groups

• CASE, including 1210, 1212, 990, and selected CASE IH applications such as 1190, 1194, 1290, 1294, 1390, 1394, 1490, 695, and CX series
• FORD 6000-Series and FORD 7000-Series
• Land Rover 90 and 110/127 applications
• Leyland Terrier TR4
• Lister Petter applications including Alpha 40, Alpha 55T, LPA3, LPW2, LPW3, LPW4, and LPWS variants
• Massey Ferguson applications including 154, 234, 254, 360, MF 254 C, MF 260, MF 2720, MF 2725, MF 6000, MF 675, and MF50 10TD
• McCormick C-Max Series and CX Series

Application and Buying Notes

Before ordering, match the existing unit against the key identifiers here: Mahle MG216, 12V system, 70A output, internal regulator, and twin leg mounting. The listed dimensions are the best practical checks for physical interchange, especially the 82mm inside mounting legs, 149mm mount centre to centre, and 17mm shaft diameter.

The pulley arrangement needs close attention because this alternator is supplied without a belt pulley. If the vehicle uses a specific pulley set-up, confirm whether the existing pulley can be transferred or whether the application requires a separate pulley arrangement.

Electrical connection style is another important check. This unit uses connector/clamp W and a 60.0 degree connecting angle, so the plug orientation and terminal arrangement should be compared with the current alternator before purchase.

The application list covers a range of CASE, Ford, Land Rover, Leyland, Lister Petter, Massey Ferguson, and McCormick equipment. Even so, model names alone should not be treated as a guarantee; the safest match is always the part number plus the mounting and connector details.

If the old alternator is still fitted, compare the mounting legs, hole sizes, and overall spacing directly. The 8mm pivot and adjusting holes, 82mm mounting bores distance, and 86.0 mounting points diameter are the measurements most likely to confirm whether the replacement will physically sit correctly.

Warranty coverage on this unit is one year. That gives a useful ownership reference, but it does not replace the need to confirm voltage, amperage, regulator type, and pulley arrangement before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG216 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 82mm, Pivot Hole Diameter 8, Regulator Type Internal, Suits Unit Make Mahle, Alternator Mount Twin Leg, New / Reman. New, Pulleys without belt pulley.

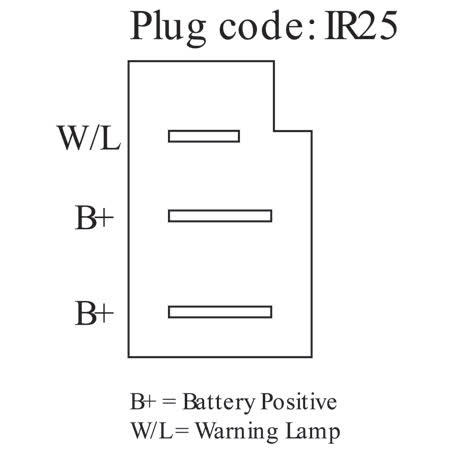

Additional published details for cross-checking include Mounting Bores Distance 82, Mounting points diameter 86.0, Packaging width 18.60, Net Weight 4608, Product Group 1 ROTATING ELECTRICAL, Part No. MG216, Brand MAHLE, Description Mahle Alternator 12V 70A, Adjusting Hole Diameter 8, Pin Code IR25.

Mahle Alternator 12V 70A. Part number MG216 should be checked first. Listed voltage is 12. Listed output rating is 70. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG216, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 70 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 1210, CASE 1210 1969, CASE 1212, CASE 1212 1969, FORD 6000-SERIES, FORD 6000-SERIES 1960. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number MG216, the 12V 70A specification, the internal regulator, and the listed mounting and connector measurements before ordering.

FAQ

What is the part number for this alternator?

The part number is MG216.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 70A power rating and 70A charge current.

Does it include a belt pulley?

No. It is supplied without a belt pulley.

What type of regulator does it use?

It uses an internal regulator.

What should I check to confirm compatibility?

Check the part number MG216, 12V system, 70A output, internal regulator, twin leg mount, connector/clamp W, and the listed measurements including 82mm inside mounting legs, 149mm mount centre to centre, and 17mm shaft diameter.
