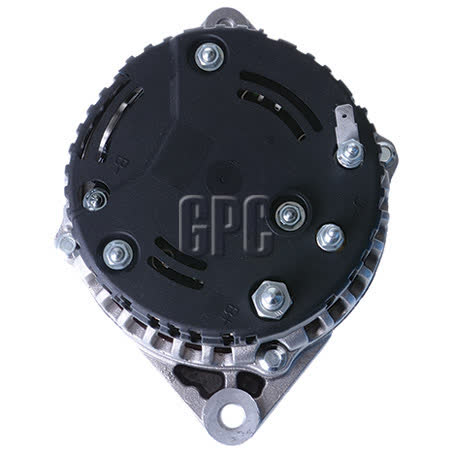

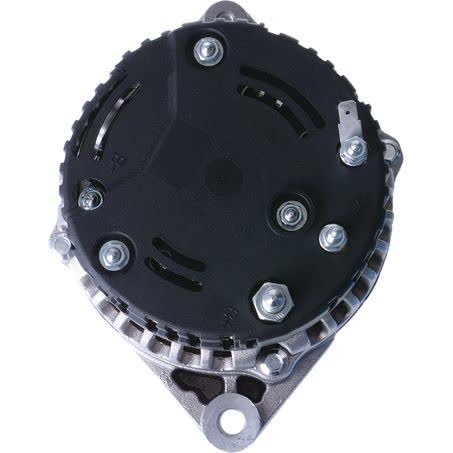

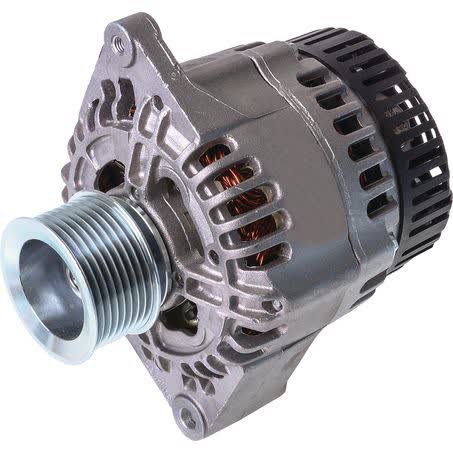

Mahle Alternator 12V 95A MG414 New With V-ribbed Pulley

The Mahle MG414 is a new 12V alternator rated at 95A, supplied as each and fitted with a V-ribbed belt pulley. It is listed with an internal regulator, a single leg alternator mount, and a dust proof note, so it is intended for applications that match these physical and electrical details.

Key dimensions matter on an alternator like this: mount leg thickness is 51mm, pivot hole diameter is 10, mounting bores distance is 50.8, and the mount centre-to-centre measurement is 173mm. The pulley outside diameter is 60mm and the pulley section is 8 groove, so belt and bracket compatibility should be checked carefully before ordering.

This unit carries part number MG414, brand MAHLE, pin code IR200, and connector/clamp W. It is a 95 amp alternator with a 12 volt system, and the listed packaging dimensions are 24.8 length and 18.60 width, which may be useful when comparing against removal and replacement space on the vehicle.

Key Features

• New alternator, not remanufactured
• 12V system with 95A output
• Internal regulator
• Single leg alternator mount
• V-ribbed belt pulley, 8 groove
• Dust proof note

Specifications

• Voltage: 12V
• Power rating / alternator charge current: 95A
• Type: Alternator
• New / reman.: New
• Pulley outside diameter: 60mm
• Pulley section: 8 groove
• Mount leg thickness: 51mm
• Pivot hole diameter: 10

Listed applications

• JCB FASTRAC
• JCB FASTRAC 1995
• JCB FASTRAC 1998
• JCB FASTRAC 1999
• JOHN DEERE 410G
• JOHN DEERE 410G 2001
• JOHN DEERE 410G 2002
• JOHN DEERE 410G 2003

Application and Buying Notes

Before buying, compare the part number MG414, the 12V electrical system, and the 95A output against the alternator being replaced. Physical fit also needs to line up with the single leg mount, the 51mm mount leg thickness, the 10mm pivot hole, and the 50.8 mounting bores distance.

The pulley setup is just as important as the electrical rating. This unit uses a V-ribbed belt pulley with an 8 groove section and a 60mm outside diameter, so the belt profile and pulley alignment need to match the vehicle’s existing arrangement.

The internal regulator and W connector/clamp should be checked against the vehicle harness and charging system layout. If the removed alternator uses a different connector style, mounting pattern, or pulley arrangement, the unit may not be a direct swap even if the charging output is similar.

For buyers matching an existing alternator, the most reliable checks are the part number, mount style, pulley section, and centre measurements. The listed distance from pulley to alternator is 27.0, and the mounting points diameter is 86.0, both of which can help when comparing the replacement against the original unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG414 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 51mm, Pivot Hole Diameter 10, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Pulleys with V-ribbed belt pulley, Mounting Bores Distance 50.8, Distance from pulley to the alternator 27.0, Packaging width 18.60, Net Weight 5708, Product Group 1 ROTATING ELECTRICAL, Part No. MG414, Brand MAHLE, Description Mahle Alternator 12V 95A, Adjusting Hole Diameter M8x1.25.

Mahle Alternator 12V 95A. Part number MG414 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG414, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JCB FASTRAC, JCB FASTRAC 1995, JCB FASTRAC 1998, JCB FASTRAC 1999, JOHN DEERE 410G, JOHN DEERE 410G 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MG414 and checking the mounting, pulley, connector, and voltage details against the vehicle before purchase. If you are working from a removed alternator, compare the 12V, 95A, single leg mount, 8 groove V-ribbed pulley, and the recorded measurements to avoid ordering the wrong unit.

FAQ

What is the voltage and output rating of this alternator?

It is a 12V alternator with a 95A power rating, also listed as alternator charge current 95A.

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What pulley type does it use?

It uses a V-ribbed belt pulley with an 8 groove pulley section and a 60mm outside diameter.

What regulator type is listed?

The alternator is listed with an internal regulator.

What part number should I match?

The listed part number is MG414.

Which applications are listed for this alternator?

Listed applications include JCB FASTRAC, JOHN DEERE 410G, LIEBHERR L514, and LIEBHERR LR614, with some year-specific entries shown in the fitment data.
