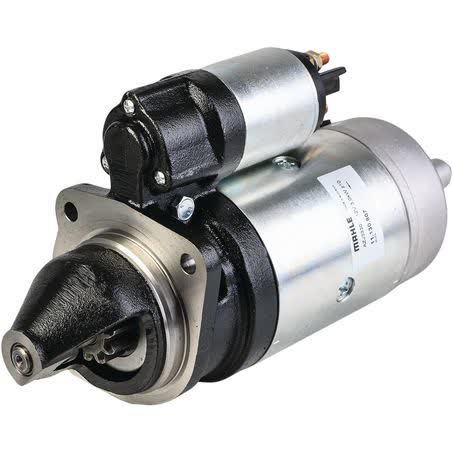

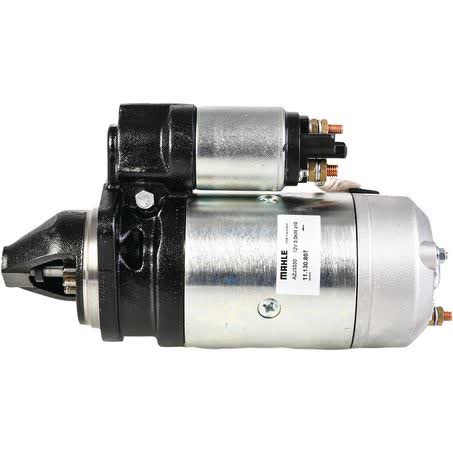

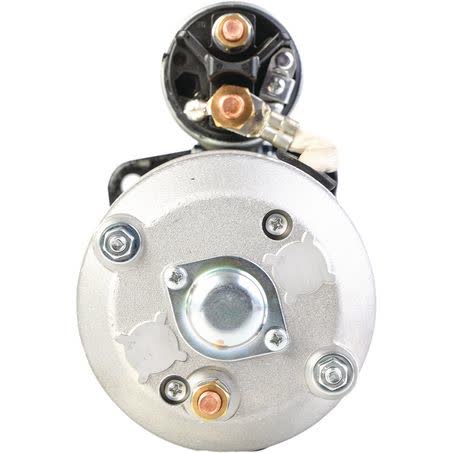

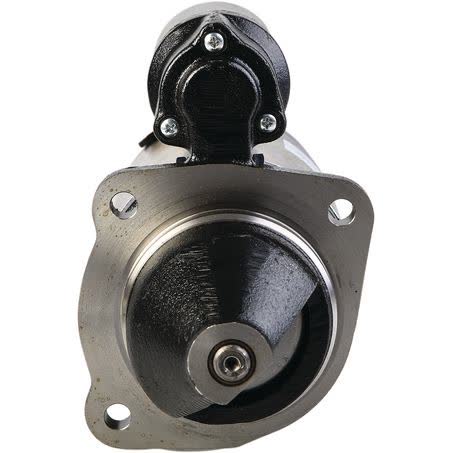

Mahle Starter Motor 12V 10 Tooth CW MS315

The Mahle starter motor MS315 is a new 12V unit with clockwise rotation, 10 teeth on the pinion, and a 3kW power rating. It is listed as a starter motor for rotating electrical applications and is supplied as an each item.

Key physical checks on this unit include a 127mm mount centres A measurement, 90mm mount centres C, 127.0mm mounting points diameter, 89mm flange diameter, and 321mm overall length. The starter mount type is 3 hole, which is important when comparing against the existing starter on the vehicle.

Other identifying details include a 40mm pinion diameter, 29.5mm pinion at rest, 15.42 tooth pitch, 11mm mount hole diameter, 10.9 bore O 1, and clamp 31. The part number is MS315 and the unit is branded Mahle.

Key Features

• 12V starter motor
• Clockwise rotation
• 10 tooth pinion
• 3kW power rating
• New unit
• 3 hole starter mount

Specifications

• Brand: Mahle
• Part number: MS315
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 3kW
• Starter mount type: 3 hole

Confirmed fitment references

• CASE IH CX series, including CX applications listed for 1997, 1998, 1999, 2000, 2001 and 2002
• CASE IH MX100C applications listed for 1998, 1999, 2000 and 2001
• CASE IH MX80C applications are referenced in the fitment data
• CASE IH MX90C applications are referenced in the fitment data
• Mccormick CX Series applications, including 2009
• Mccormick F Series applications, including 2009
• Oka LT110 applications, including 1995, 1996, 1997 and 1998

Application and Buying Notes

Before ordering, compare the MS315 part number, 12V electrical specification, CW rotation, and 10 tooth count against the original starter motor fitted to the machine. A starter can look similar externally while differing in rotation, tooth count, or mounting geometry, so the part number and the mounting measurements need to line up together.

The 127mm mount centres A, 90mm mount centres C, 127.0mm mounting points diameter, and 89mm flange diameter are the most useful physical checkpoints. The 321mm overall length and 40mm pinion diameter are also worth checking if access is tight or if the starter sits close to adjacent components.

This unit is listed with a 3kW power rating and a 3 hole starter mount. Those details help distinguish it from other 12V starters that may share a similar case shape but differ in bolt pattern or output. If the vehicle has been modified, or if the existing starter has been replaced before, measure the old unit rather than relying on appearance alone.

Fitment references are supplied for CASE IH, Mccormick, and Oka applications, but the exact match still needs to be confirmed by part number and the application details on the existing vehicle. Where the original starter tag is still readable, that is the safest place to verify whether MS315 is the correct replacement.

The unit is new and carries a one year warranty. It is also noted as providing resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures, and aggressive liquids, and it complies with EMC and other international directives and standards. Those are useful durability and electrical compatibility points, but they should not replace a proper fitment check.

If you are replacing a starter on a working machine, keep in mind the dry clutch note and the listed mount hole diameter of 11mm. These smaller details can matter when matching the starter to the bell housing and mounting hardware already on the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS315 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 29.5mm, Power Rating 3kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Clamp 31, Bore O 1 10.9, Tooth Pitch 15.42, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 13899, Product Group 1 ROTATING ELECTRICAL, Part No. MS315, Brand MAHLE.

Mahle Starter Motor 12V 10Th CW. Part number MS315 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS315, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE IH CX, CASE IH CX 1997, CASE IH CX 1998, CASE IH CX 1999, MCCORMICK CX SERIES, MCCORMICK CX SERIES 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the MS315 part number, 12V voltage, 10 tooth count, CW rotation, 3 hole mount, and the recorded mounting dimensions against the existing starter and vehicle application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is MS315.

Is this starter motor 12V?

Yes. The listed voltage is 12V.

What is the rotation direction?

The rotation is clockwise, shown as CW.

How many teeth does the pinion have?

The starter motor has 10 teeth.

What vehicles are referenced in the fitment data?

The fitment references include CASE IH CX, CASE IH MX100C, CASE IH MX80C, CASE IH MX90C, Mccormick CX Series, Mccormick F Series, and Oka LT110 applications.

What warranty is listed?

A one year warranty is listed for this unit.
