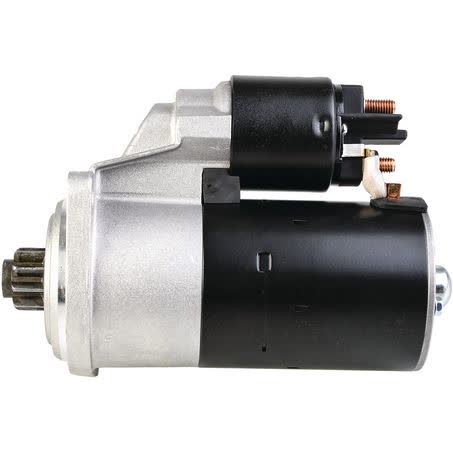

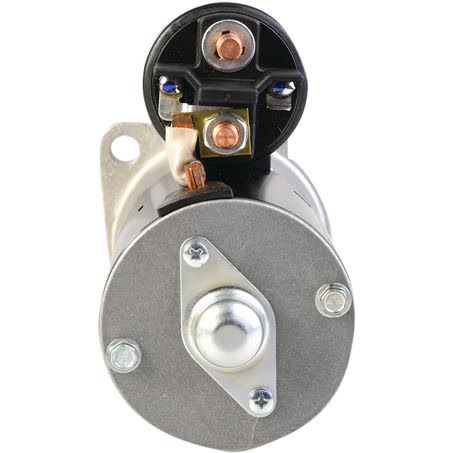

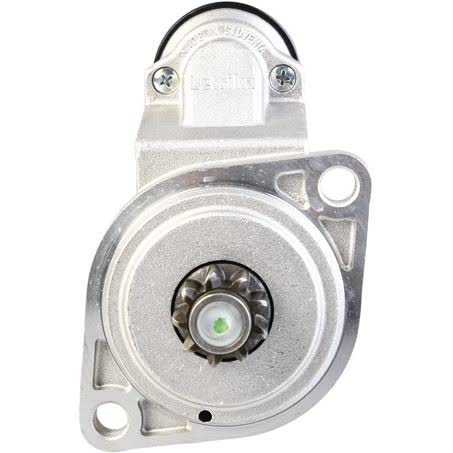

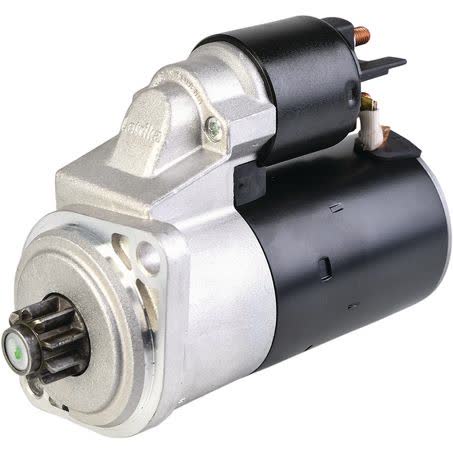

Mahle Starter Motor 12V 9 Tooth CCW MS359

The Mahle Starter Motor MS359 is a new 12V starter motor with a 9 tooth pinion and CCW rotation. It is listed with a 1.2kW power rating, a 2 hole starter mount, and a 105mm mount centres measurement, making those dimensions the key points to check before ordering.

This unit is supplied as a new starter motor, not remanufactured, and is identified with part number MS359. Other useful physical details include an overall length of 224mm, a 76mm flange diameter, a 30mm pinion diameter, and a pinion at rest measurement of 27.5mm.

The starter is described as a Mahle unit with reduction gear transmission type and a dry clutch arrangement. It is covered by a one year warranty, so the correct application check should still be made against the part number, mount pattern, and the listed dimensions rather than relying on the general description alone.

Key Features

• 12V starter motor
• 9 tooth pinion
• CCW rotation
• 1.2kW power rating
• 2 hole starter mount
• Reduction gear transmission type

Specifications

• Brand: Mahle
• Part number: MS359
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CCW
• Number of teeth: 9
• Starter mount type: 2 hole
• Number of mounting bores: 2

Verified fitment details

• RUGGERINI RF81
• RUGGERINI RF81 1981

Application and Buying Notes

Before buying, check the part number MS359 against the original starter and compare the mounting pattern. This unit has a 2 hole starter mount, 2 mounting bores, 105mm mount centres, and an 11mm mount hole diameter, so those measurements need to line up with the vehicle application.

The electrical and drive details also matter. This starter is 12V, CCW rotation, 9 tooth, and rated at 1.2kW, with a reduction gear transmission type. If the original unit differs in voltage, rotation, tooth count, or drive arrangement, it should not be assumed to be a direct match.

Physical clearance is worth checking as well. The listed overall length is 224mm, flange diameter is 76mm, pinion diameter is 30mm, and pinion at rest is 27.5mm. The flywheel depth is listed at 30.5, so the starter should only be selected where those dimensions suit the application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS359 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 27.5mm, Power Rating 1.2kW, Suits Unit Make Mahle, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Transmission Type with reduction gear, Number of mounting bores 2, For flywheel depth 30.5, Mounting points diameter 105.0, Packaging width 16.60, Net Weight 3907, Product Group 1 ROTATING ELECTRICAL, Part No. MS359, Brand MAHLE, Description Mahle Starter Motor 12V 9Th CCW.

Mahle Starter Motor 12V 9Th CCW. Part number MS359 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS359, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include RUGGERINI RF81, RUGGERINI RF81 1981. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MS359 and checking the 12V, CCW, 9 tooth, 2 hole, 105mm mount centres, and 30.5 flywheel depth details against the vehicle application before purchase.

FAQ

What is the part number for this starter motor?

The part number is MS359. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.

What voltage is the Mahle starter motor?

It is a 12V starter motor. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is CCW. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.

Which fitment applications are shown?

The verified fitment details provided are RUGGERINI RF81 and RUGGERINI RF81 1981. For this listing, part number MS359 is the main reference point. Listed voltage is 12. Published fitment references include RUGGERINI RF81, RUGGERINI RF81 1981. These details should still be checked against the original unit before ordering.
