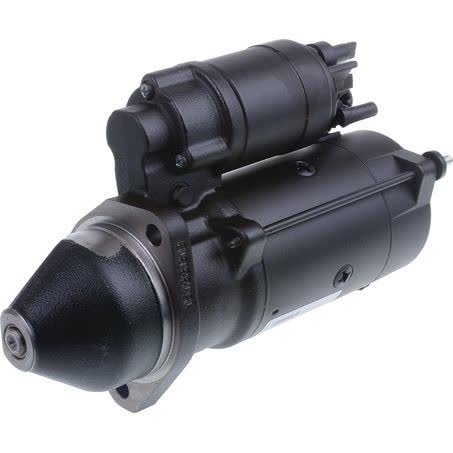

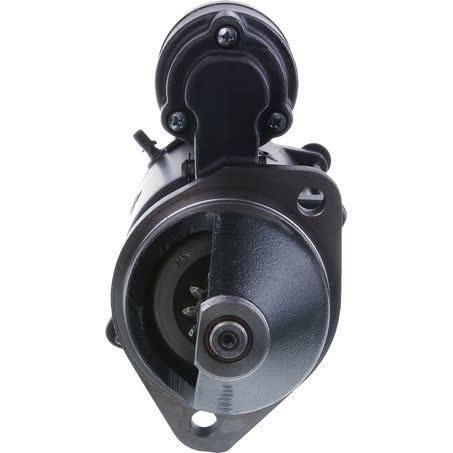

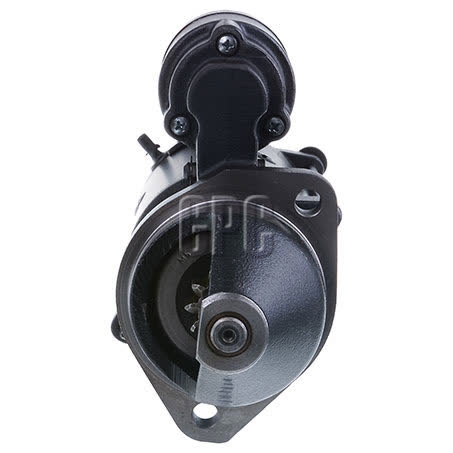

Mahle Starter Motor 12V 11T CW MS30

The Mahle Starter Motor MS30 is a new 12V unit with clockwise rotation, 11 teeth, and a 3.2kW power rating. It is listed with a 2-hole starter mount, 101mm centre-to-centre mounting, 82.5mm flange diameter, and 280mm overall length, so the physical dimensions can be checked carefully against the existing starter before purchase.

This starter motor is described as a dry-clutch unit with a reduction gear transmission type, a 35.5mm pinion diameter, 23mm pinion at rest, and 26.0mm flywheel depth. Those details matter when matching engagement depth, housing clearance, and the mounting arrangement on the application.

Mahle lists the MS30 as a replacement starter motor that complies with EMC standards and other international directives and standards, and it is also described as offering strong resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures, and aggressive liquids. It is supplied as each and carries a one year warranty.

Key Features

• New 12V starter motor
• Clockwise rotation (CW)
• 11-tooth pinion
• 3.2kW power rating
• 2-hole starter mount
• Reduction gear type

Specifications

• Brand: Mahle
• Part No.: MS30
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 3.2kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment data supplied for this MS30 starter includes BOMAG BW100A, BW120AD and BW151AD2.
• Fitment data supplied for this MS30 starter includes DEUTZ BF4L1011F, F2L1011F, F3L1011 and F4L1011F applications.
• Fitment data supplied for this MS30 starter includes DYNAPAC CC222HF/CHF, CC232CHF and CC322 applications.
• Fitment data supplied for this MS30 starter includes GEHL 6635DXT, 6635SXT, SL5635/DX/DXT, SL5635SX/SXT, SL5635SXT and SL6635/DXT/SXT applications.
• Fitment data supplied for this MS30 starter includes HAMM HD10, HD12, HD13 and HW90B applications.
• Fitment data supplied for this MS30 starter includes VERMEER 3550, LM42, SC672, SC672A, SC752, V3550, V3550A, V5750 and V6050 applications.
• Fitment data supplied for this MS30 starter includes VOLVO CONSTRUCTION L35 and ZL402C applications.

Application and Buying Notes

Before ordering, match the part number MS30, the 12V electrical system, and the 11-tooth CW configuration. Starter motors can look similar while differing in rotation, tooth count, mount type, flange diameter, or pinion depth, and this unit is specified with a 2-hole mount, 101mm mount centre to centre, and 82.5mm flange diameter.

The engagement details are important on this starter: 35.5mm pinion diameter, 23mm pinion at rest, 12.38 tooth pitch, and 26.0 flywheel depth. If any of those dimensions differ from the original unit, the starter may not align or engage correctly even if the vehicle model appears similar.

This is a new starter motor, not a remanufactured unit, and it is listed with a one year warranty. The stated resistance to harsh conditions such as dust, mud, humidity, water, salt, vibration and extreme temperatures may suit demanding equipment use, but the correct application still needs to be confirmed against the exact part number and mounting details.

If you are replacing a starter on equipment from BOMAG, DEUTZ, DYNAPAC, GEHL, HAMM, VERMEER or VOLVO CONSTRUCTION, use the supplied application data as a guide only and confirm the original starter specifications before fitting. The safest check is always the existing part number, followed by the mounting bores, rotation, tooth count, and flywheel depth.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS30 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 11, Overall Length 280mm, Pinion Diameter 35.5mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Bore O 1 10.9, Tooth Pitch 12.38, Connecting Angle [Degree] 40.0, Packaging length 31.8, Packaging height 13.50, Product Group 2 STARTER MOTORS, Part No. MS30, Brand MAHLE, Description Mahle Starter Motor 12V 11Th CW.

Mahle Starter Motor 12V 11Th CW. Part number MS30 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS30, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001, BOMAG BW100A 2002, DEUTZ BF4L1011F, DEUTZ BF4L1011F 1989. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the MS30 part number, 12V rating, 11-tooth CW configuration, 2-hole mount, 101mm mount centre to centre, and the listed application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is MS30.

What voltage and rotation does this starter use?

It is a 12V starter motor with clockwise rotation (CW).

How many teeth does the pinion have?

This starter is listed with 11 teeth.

Is this starter new or remanufactured?

It is listed as new.

What mounting details are supplied for this starter?

The supplied mounting details include a 2-hole starter mount, 2 mounting bores, 11mm mount hole diameter, and 101mm mount centre to centre.

Which applications are listed for this starter?

Listed applications include BOMAG, DEUTZ, DYNAPAC, GEHL, HAMM, VERMEER and VOLVO CONSTRUCTION models, including examples such as BOMAG BW100A, DEUTZ BF4L1011F, DYNAPAC CC222HF/CHF, GEHL 6635DXT, HAMM HD10, VERMEER SC672 and VOLVO CONSTRUCTION L35.
