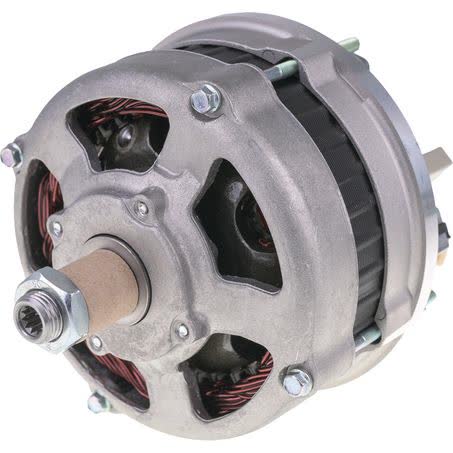

Mahle Alternator 12V 80A MG607

The Mahle MG607 alternator is a 12V, 80A unit supplied new, with an internal regulator and direct mount design. It is listed as a bi-directional rotation alternator with a 17mm shaft diameter and no belt pulley fitted, so the pulley arrangement on the vehicle or equipment needs to be confirmed before purchase.

This alternator is identified with Part No. MG607 and Pin Code IR200, and it carries a one year warranty. The unit is specified with a 4 bolt mount and a body diameter of 138mm, which are practical checks when comparing against the existing alternator and mounting position.

Mahle lists this alternator for rotating electrical applications and notes that its alternators fulfil international standards and requirements for electromagnetic compatibility. For buyers working on machinery or specialist equipment, that makes the core electrical and physical identifiers especially important: 12V system voltage, 80A charge current, direct mount, and no pulley included.

Key Features

• 12V alternator rated at 80A
• Internal regulator
• Direct mount design
• Bi-directional rotation
• No belt pulley fitted
• 4 bolt mount

Specifications

• Brand: Mahle
• Part No.: MG607

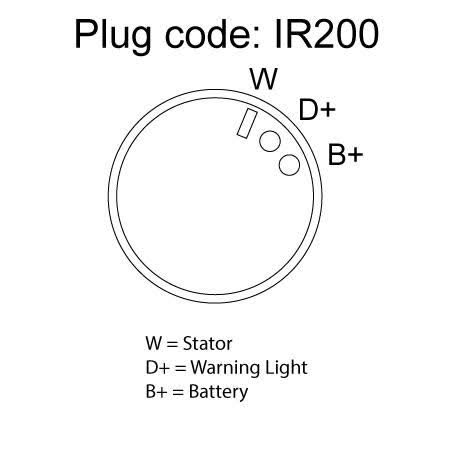

• Pin Code: IR200
• Product type: Alternator
• Power rating: 80A
• Alternator charge current: 80A
• Voltage: 12V
• Regulator type: Internal

Known applications provided for this alternator

• ATLAS COPCO AW 240
• ATLAS COPCO AW 260
• ATLAS COPCO AW 300
• ATLAS COPCO QAX 45 240V-3PH
• ATLAS COPCO QAX 70 240V-3PH
• ATLAS COPCO XAHS 107 C2
• ATLAS COPCO XAHS 37
• ATLAS COPCO XAS 137 C2

Application and Buying Notes

The most important checks for this alternator are the part number MG607, the 12V system voltage, and the 80A output rating. If the existing unit is a direct mount alternator with a 4 bolt mount and a 138mm body diameter, those measurements are useful comparison points before ordering.

Because this unit is supplied without a belt pulley, you need to confirm whether the existing pulley can be transferred or whether the application requires a different pulley arrangement. The 17mm shaft diameter and bi-directional rotation are also worth matching against the old alternator, especially where the machine application is specific.

The listed fitment covers a range of machinery and equipment applications, including Atlas Copco, Bomag, Deutz, Dynapac, Genie, Hamm, JLG, New Holland and Volvo Construction. Even where a make or model appears in the fitment list, it is still sensible to check the existing unit’s identifiers, mounting style, shaft size and pulley setup before buying.

The one year warranty applies to the supplied new unit, but warranty coverage does not replace fitment confirmation. Electrical output, regulator type, and mounting detail need to suit the machine as fitted, especially on equipment where alternators may vary between production runs or build specifications.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG607 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 80, Regulator Type Internal, Shaft Diameter 17mm, Voltage 12, Alternator Mount Direct, Alternator Charge Current [A] 80, Packaging length 20.8.

Additional published details for cross-checking include Packaging height 15.50, Weight 4.22kg, Product Group 1 ROTATING ELECTRICAL, Part No. MG607, Brand MAHLE, Description Mahle Alternator 12V 80A, Pin Code IR200, Pulley Section Not Applicable, Rotation Bi-Directional, Suits Unit Make Mahle.

Mahle Alternator 12V 80A. Part number MG607 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Direct. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG607, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using Part No. MG607, the 12V 80A specification, the 4 bolt direct mount, 17mm shaft diameter and the fact that no belt pulley is included.

FAQ

What is the part number for this alternator?

The part number is MG607, and the pin code listed is IR200. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured alternator?

It is listed as new, not remanufactured. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.

Does this alternator include a belt pulley?

No. It is listed as without belt pulley, and pulley section is marked not applicable. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with an 80A power rating and 80A charge current. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The unit is a direct mount alternator with a 4 bolt mount and a body diameter of 138mm. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.

Which applications are shown for this alternator?

The provided applications include Atlas Copco, Bomag, Deutz, Dynapac, Genie, Hamm, JLG, New Holland and Volvo Construction equipment models. For this listing, part number MG607 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include ATLAS COPCO AW 240, ATLAS COPCO AW 240 1980, ATLAS COPCO AW 260. These details should still be checked against the original unit before ordering.
