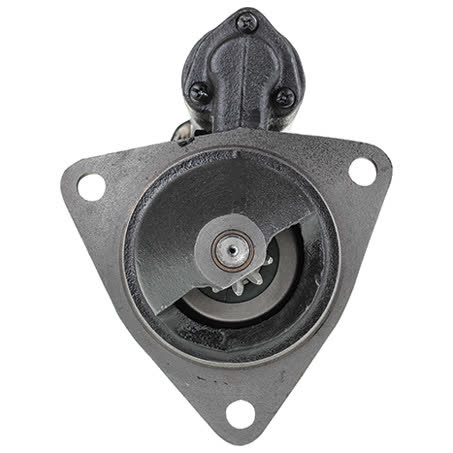

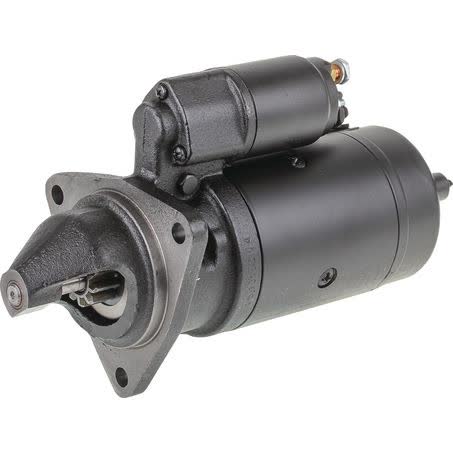

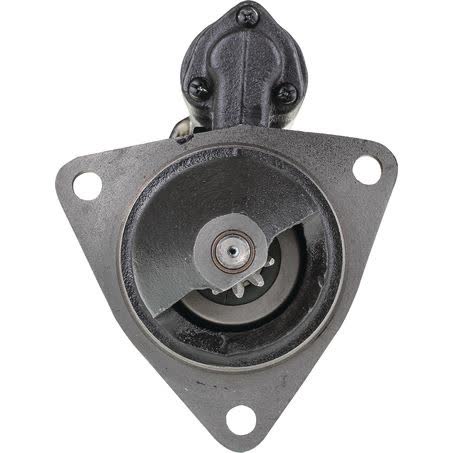

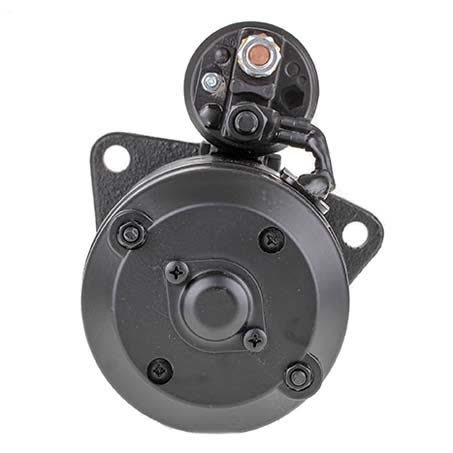

Mahle Starter Motor 24V 10 Tooth CW MS360

The Mahle MS360 is a new 24V starter motor with a 10 tooth pinion and clockwise rotation, designed as a 3 hole mount unit for applications that call for a 126mm mount centre pattern. It is rated at 4.0kW and uses a 37mm pinion diameter, with a 35.0 flywheel depth specification.

Key physical details include a 100mm flange diameter, 13mm mount hole diameter, 3 mounting bores, and a pinion at rest measurement of 32mm. These dimensions matter when you are matching a starter to an existing application, especially where the mounting face and flywheel engagement are critical.

This starter motor is listed for Mahle unit applications and is identified by part number MS360. It carries a one year warranty and is supplied each, so it suits buyers needing a replacement starter with the same electrical and mounting specification rather than a universal fit part.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• 3 hole starter mount
• New unit, not remanufactured
• Rated output: 4.0kW

Specifications

• Brand: Mahle
• Product type: Starter motor
• Voltage: 24V
• Power rating: 4.0kW
• Rotation: CW
• Number of teeth: 10
• Pinion diameter: 37mm
• Pinion at rest: 32mm

Fitment guidance

• The supplied fitment information includes Belarus applications.
• Listed Belarus fits include Belarus 520/521, Belarus 80X, Belarus 82.1, Belarus 82R, Belarus 950/952, and Belarus Series 100.
• Sample application data includes Belarus 520/521 1980 and Belarus 80X 1980.
• Because fitment details can vary by build, year, and starter arrangement, the part number MS360 and the measured mounting and pinion specifications should be matched before ordering.

Application and Buying Notes

When replacing a starter motor, the most important checks are voltage, rotation, mounting pattern, pinion count, and flywheel depth. In this case the key identifiers are 24V, clockwise rotation, 10 teeth, 37mm pinion diameter, and a 35.0 flywheel depth, all of which need to line up with the vehicle’s original starter arrangement.

The mounting side is just as important as the electrical side. This Mahle unit uses a 3 hole starter mount, 126mm mount centres across A, B, and C, a 100mm flange diameter, and 13mm mount holes. Those measurements should be compared with the removed starter or the vehicle’s specifications before purchase.

This starter is new and rated at 4.0kW, which makes it a straightforward replacement option where the existing application matches the same output and engagement setup. The product is supplied as each and carries a one year warranty, so it is best treated as a direct component replacement rather than a generic interchange piece.

If you are matching this starter to a Belarus application, use the part number MS360 together with the 24V, 10 tooth, CW, and 3 hole mount details. That is the safest way to confirm you are ordering the correct starter motor for the vehicle or machine in question.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS360 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 10, Pinion Diameter 37mm, Rotation CW, Voltage 24, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Number of mounting bores 3, For flywheel depth 35.0, Packaging length 39.0, Packaging height 18.80, Product Group 2 STARTER MOTORS, Part No. MS360, Brand MAHLE, Description Mahle Starter Motor 24V 10Th CW.

Mahle Starter Motor 24V 10Th CW. Part number MS360 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS360, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X, BELARUS 80X 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number MS360, 24V, 10 tooth clockwise rotation, 3 hole mounting, 126mm mount centres, and 35.0 flywheel depth against the existing unit or vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is MS360. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 24V starter motor. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.

What rotation is this starter motor?

It is clockwise rotation, shown as CW. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.

Does fitment include Belarus applications?

Yes. The supplied fitment information includes Belarus applications such as Belarus 520/521, Belarus 80X, Belarus 82.1, Belarus 82R, Belarus 950/952, and Belarus Series 100. Always confirm the part number and measurements before ordering. For this listing, part number MS360 is the main reference point. Listed voltage is 24. Published fitment references include BELARUS 520/521, BELARUS 520/521 1980, BELARUS 80X. These details should still be checked against the original unit before ordering.
