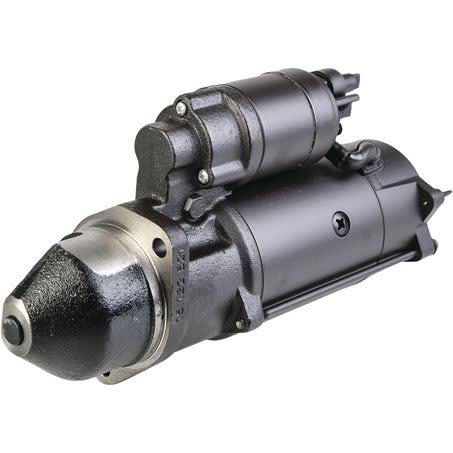

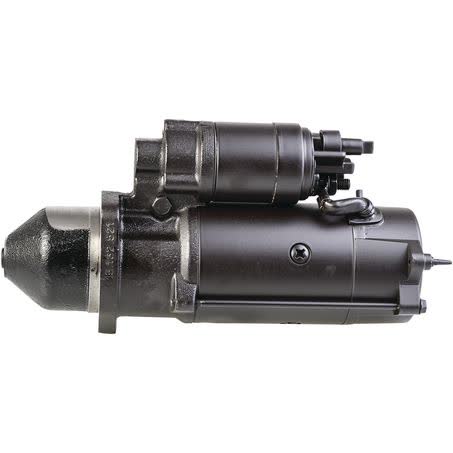

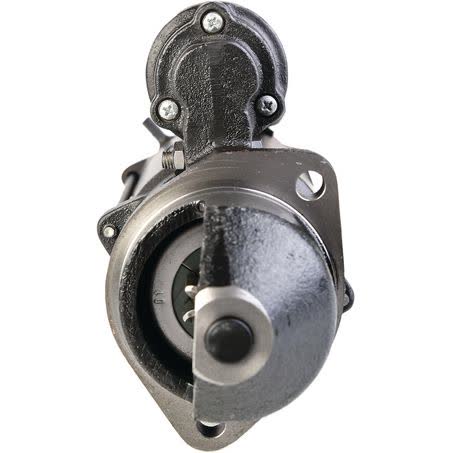

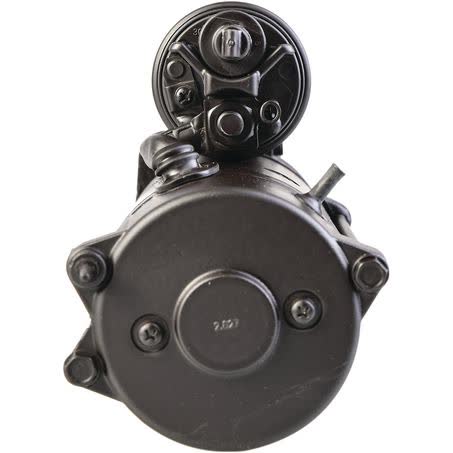

Mahle Starter Motor 24V 9T CW MS68

The Mahle Starter Motor MS68 is a 24V starter motor with clockwise rotation, 9 teeth, and a 4kW power rating. It is supplied as a new unit and is listed with a one year warranty, making it a straightforward option where the application calls for a Mahle starter with these exact electrical and physical details.

Key identifying dimensions include a 105mm mount centres measurement, 82mm flange diameter, 320mm overall length, 34.8mm pinion diameter, and 23mm pinion at rest. The starter uses a 2 hole mount type, a 10.9 bore, an 11mm mount hole diameter, and a 40 degree connecting angle, so these measurements are important when checking replacement suitability.

This starter motor is noted as dust proof and is described as having outstanding resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures, and aggressive liquids. It also complies with electromagnetic compatibility standards and other international directives and standards, which is useful context for equipment working in harsh service conditions.

Key Features

• 24V starter motor
• Clockwise rotation
• 9 tooth pinion
• 4kW power rating
• New unit
• Dust proof

Specifications

• Part No.: MS68
• Brand: Mahle
• Type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of Teeth: 9
• Power Rating: 4kW
• Starter Mount Type: 2 hole

Known application families and examples

• DEUTZ applications listed include BF4M2011, D2011L4, TCD2011L04, and TD2011L04W.
• DYNAPAC application listed includes F5CS.
• VOGELE applications listed include SUPER 600, SUPER 700, SUPER 800, SUPER 1100-2, SUPER 1103-2, SUPER 1300-2, and SUPER 1303-2.
• WIRTGEN applications listed include TCM95, TCM180, W35, W35DC, and W50.

Application and Buying Notes

Before ordering, compare the part number MS68, the 24V system requirement, the clockwise rotation, and the 9 tooth pinion against the unit being replaced. Those identifiers need to align with the machine setup, especially where the starter is a 2 hole mount and the mounting dimensions are critical.

The physical measurements matter just as much as the electrical rating. Confirm the 105mm mount centres, 82mm flange diameter, 320mm overall length, 34.8mm pinion diameter, and 23mm pinion at rest before fitting, because starter motors can differ by small dimensions that affect alignment and engagement.

The environmental notes are useful if the machine works around dust, moisture, vibration, or temperature extremes, but they do not replace fitment checking. For replacement work, the practical approach is to verify the starter specification, the mounting style, and the application details before finalising the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS68 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 23mm, Power Rating 4kW, Suits Unit Make Mahle, Note Dust Proof, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Bore O 1 10.9, Tooth Pitch 14.36, Connecting Angle [Degree] 40.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS68, Brand MAHLE.

Mahle Starter Motor 24V 9Th CW. Part number MS68 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS68, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4, DEUTZ D2011L4 2000, DYNAPAC F5CS, DYNAPAC F5CS 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by checking the part number MS68, the 24V clockwise specification, the 9 tooth count, and all mounting and dimensional details against the existing starter motor and machine application before purchase.

FAQ

What is the part number for this starter motor?

The listed part number is MS68. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.

Is the rotation clockwise or counter-clockwise?

The rotation is clockwise, shown as CW. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The key mounting details listed are 2 hole starter mount type, 105mm mount centres, 82mm flange diameter, and 11mm mount hole diameter. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.

What applications are listed for this starter motor?

Listed application families include DEUTZ, DYNAPAC, VOGELE, and WIRTGEN, with examples such as DEUTZ BF4M2011, DYNAPAC F5CS, VOGELE SUPER 1100-2, and WIRTGEN W35. Always confirm the exact application against the machine and existing part number. For this listing, part number MS68 is the main reference point. Listed voltage is 24. Published fitment references include DEUTZ BF4M2011, DEUTZ BF4M2011 1980, DEUTZ D2011L4. These details should still be checked against the original unit before ordering.
