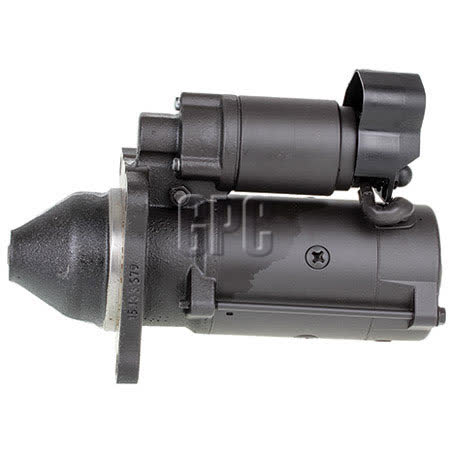

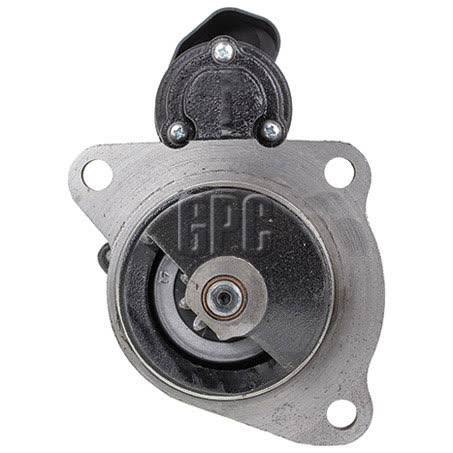

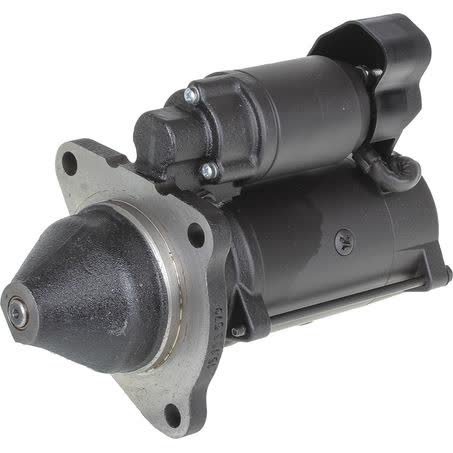

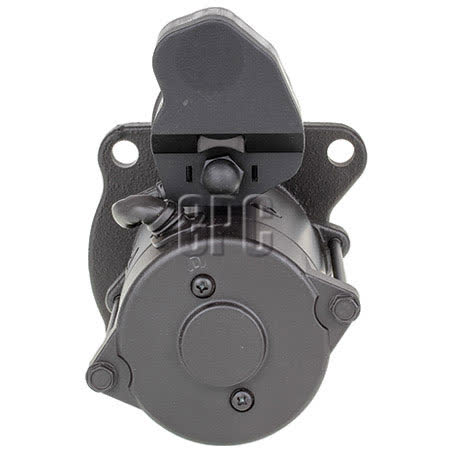

Mahle Starter Motor 12V 10 Teeth CW MS204

The Mahle MS204 starter motor is a new 12V unit with clockwise rotation, 10 teeth, and a 3.2kW power rating. It is listed with a 3-hole starter mount, 3 mounting bores, 146mm mount centres, and a 92mm flange diameter, so the physical mounting points and overall dimensions are central to checking suitability before purchase.

Key dimensions for this starter motor include an overall length of 275mm, a nose cone length of 69mm, a pinion diameter of 40mm, and a pinion at rest measurement of 26mm. The note supplied with the part states that for the direct drive version, use MS273, and that this unit has an offset drive end bracket.

This Mahle starter is described as a rotating electrical component supplied new, sold each, and covered by a one year warranty. It is listed with dry wet / dry clutch information, a mount hole diameter of 13mm, and a for flywheel depth measurement of 28.7, all of which are useful when confirming a direct replacement against the original starter motor.

Key Features

• Mahle starter motor, part number MS204
• 12V, clockwise rotation
• 10 tooth pinion
• 3.2kW power rating
• 3-hole starter mount
• New unit, sold each

Specifications

• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 3.2kW
• Starter mount type: 3 hole
• Number of mounting bores: 3
• Mount centres A: 146mm
• Mounting points diameter: 146.0mm

Fitment guidance

• Listed fitment data includes Landini models such as 50 and 60, and Massey Ferguson models including 154, 2210, 234, 251-2, 254, 360, MF 1080, MF 134, MF 140, MF 148, MF 152 V, MF 154 C, MF 174, MF 184, MF 184 F, MF 20 and MF 230.
• Additional grouped fitment references also include MF 154 S and MF 20 B applications, plus Ursus 3512 and Ursus 3514.
• The fitment information provided is model and application based, so the exact vehicle match still needs to be checked against the starter part number, mounting layout, and dimensions.
• Because the starter is noted as an offset drive end bracket design, it is important to compare the old unit carefully before ordering.

Application and Buying Notes

Before buying, compare the part number MS204 and the starter configuration against the original unit on the machine. The key checks here are 12V voltage, clockwise rotation, 10 teeth, 3-hole mounting, 146mm mount centres, and the 92mm flange diameter, because these items must line up with the existing starter arrangement.

The supplied dimensions also matter during a replacement job. An overall length of 275mm, nose cone length of 69mm, pinion diameter of 40mm, and mount hole diameter of 13mm are practical measurements to verify against the old starter, especially where access is tight or the housing shape is close to surrounding parts.

If the machine was fitted with a direct drive version, the note provided points to MS273 instead of MS204. That makes the drive type and bracket arrangement important to confirm, not just the voltage and tooth count.

This starter is listed with a reduction gear transmission type and dry wet / dry clutch reference, so it should be matched carefully to the application rather than selected only by a general starter description. The fitment list includes Landini, Massey Ferguson, and Ursus applications, but the exact model and year should still be checked against the machine currently in front of you.

The one year warranty applies to the part as supplied, but correct identification is still essential. Matching the starter mount type, mounting bores, and flywheel depth to the existing installation will reduce the risk of ordering the wrong component and needing to remove it again.

If you are replacing a starter in a working machine, it is worth comparing the old unit on the bench before fitment. Confirm the pinion rest position at 26mm, the 3-hole layout, and the overall 275mm body length before final installation so the replacement is consistent with the original hardware.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS204 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 146mm, Nose Cone Length 69mm, Overall Length 275mm, Pinion Diameter 40mm, Rotation CW, Voltage 12, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 28.7, Mounting points diameter 146.0, Packaging width 21.50, Net Weight 8400, Product Group 1 ROTATING ELECTRICAL, Part No. MS204, Brand MAHLE.

Mahle Starter Motor 12V 10Th CW. Part number MS204 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Compatibility note: Confirm compatibility using the MS204 part number, the 12V clockwise specification, the 3-hole mounting layout, and the measured dimensions before ordering. Do not rely on the product name alone when checking fitment.

FAQ

What is the part number for this starter motor?

The part number listed is MS204.

Is this starter motor 12 volt?

Yes. The voltage is listed as 12V.

What rotation does this starter use?

It is listed as clockwise rotation, shown as CW.

How many teeth does the pinion have?

The starter is listed with 10 teeth.

What mounting setup does it use?

It is listed as a 3-hole starter mount with 3 mounting bores and 146mm mount centres.

Which vehicle applications are listed?

Listed applications include Landini, Massey Ferguson, and Ursus models, including Landini 50 and 60, Massey Ferguson 154, 2210, 234, 251-2, 254, 360, MF 1080, MF 134, MF 140, MF 148, MF 152 V, MF 154 C, MF 174, MF 184, MF 184 F, MF 20 and MF 230, plus Ursus 3512 and 3514.
