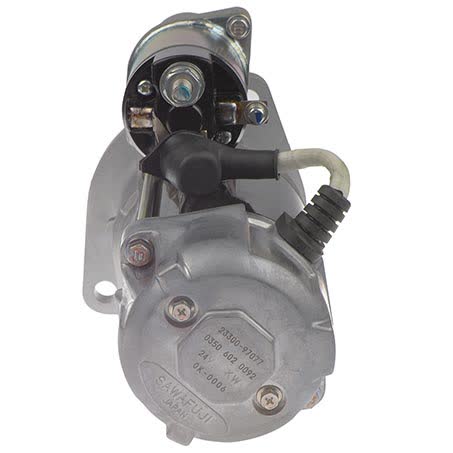

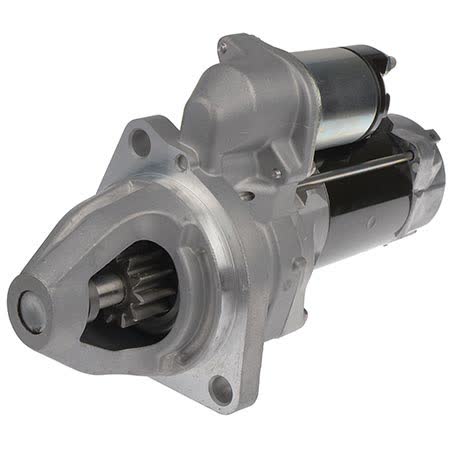

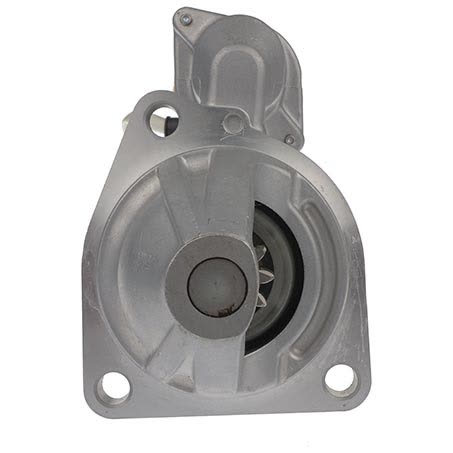

OEX Starter Motor 24V 11T CW Sawafuji Style SXS714

The OEX Starter Motor SXS714 is a new 24V starter motor with 11 teeth and clockwise rotation, made in a Sawafuji style to suit applications using a Sawafuji unit. It is a 3-hole starter motor with a 6kW power rating, designed as a direct replacement where the matching mounting and pinion details are required.

Key dimensions on this unit include 156mm mount centres A, 104mm mount centres C, 146mm mount centres B, a 122mm flange diameter, and a 102mm nose cone length. The mounting hole diameter is 15.5mm, the overall length is 390mm, and the pinion diameter is 47mm.

This starter is listed as new, for dry clutch use, and weighs 14.4kg. It carries OEX part number SXS714 and is described as an OEX Starter Motor 24V 11Th CW Sawafuji Style, which gives you the main identifiers needed to confirm the correct match before ordering.

Key Features

• 24V starter motor
• 11-tooth pinion
• Clockwise rotation
• Sawafuji style unit
• 3-hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: SXS714
• Type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of Teeth: 11
• Power Rating: 6kW
• Starter Mount Type: 3 hole

Fitment guidance

• Suits applications using a Sawafuji unit
• Fitment data includes NISSAN INDUSTRIAL, NISSAN INDUSTRIAL CRANE, NISSAN UD, NISSAN UD RF8, UD NISSAN DIESEL, UD NISSAN DIESEL C SERIES, UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL R SERIES, and UD NISSAN DIESEL T SERIES
• Sample applications listed include NISSAN INDUSTRIAL CRANE 1986, 1987, 1988 and 1989
• Sample applications listed include NISSAN UD RF8 and NISSAN UD RF8 1995
• Sample applications listed include UD NISSAN DIESEL C SERIES 1983 through 1993

Application and Buying Notes

Before ordering, compare the part number SXS714, the 24V rating, the 11-tooth pinion, and the clockwise rotation against the starter you are replacing. Those four details are the quickest way to avoid a mismatch, especially on heavy vehicle or industrial applications where similar-looking starters can differ in mounting or pinion arrangement.

The mounting pattern should also be checked carefully. This unit is a 3-hole starter with mount centres of 156mm, 146mm, and 104mm, plus a 122mm flange diameter and 15.5mm mounting holes. If the mounting face, nose cone length, or bolt pattern differs from your original starter, it should not be assumed to fit.

Because the fitment list includes NISSAN INDUSTRIAL, NISSAN UD, and several UD NISSAN DIESEL series applications, matching by vehicle badge alone is not enough. Confirm the starter style, the Sawafuji unit reference, and the physical measurements before purchase, particularly if the vehicle has had previous repairs, engine changes, or a non-original starter fitted.

This starter is specified for dry clutch use and has a 6kW power rating, so it is important to match the application type as well as the electrical rating. The overall length is 390mm and the pinion diameter is 47mm, both of which can help when comparing the unit against the removed part or workshop measurements.

If you are fitting to an industrial, truck, or crane application, check the starter in person where possible and compare the nose cone length of 102mm, the pinion at rest measurement of 41mm, and the 14.4kg weight. These measurements provide useful confirmation when the original identification plate is missing or hard to read.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXS714 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 156mm, Mount Centres C 104mm, Nose Cone Length 102mm, Overall Length 390mm, Pinion Diameter 47mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. SXS714, Brand OEX, Description OEX Starter Motor 24V 11Th CW Sawafuji Style, Flange Diameter 122mm, Mount Centres B 146mm, Mount Hole Diameter 15.5.

OEX Starter Motor 24V 11Th CW Sawafuji Style. Part number SXS714 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SXS714, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1986, NISSAN INDUSTRIAL CRANE 1987, NISSAN INDUSTRIAL CRANE 1988, NISSAN UD RF8, NISSAN UD RF8 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the OEX part number SXS714, the Sawafuji style reference, and the measured mounting and pinion details before ordering. Vehicle model names alone are not enough to verify fitment on this starter motor.

FAQ

What is the part number for this starter motor?

The OEX part number is SXS714.

Is this starter motor 12V or 24V?

It is a 24V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW.

What type of clutch application is it suited to?

It is listed for dry clutch use.

Which unit make is it suited to?

It is listed as suited to Sawafuji unit make, and the fitment data includes NISSAN INDUSTRIAL, NISSAN UD, and UD NISSAN DIESEL applications.
