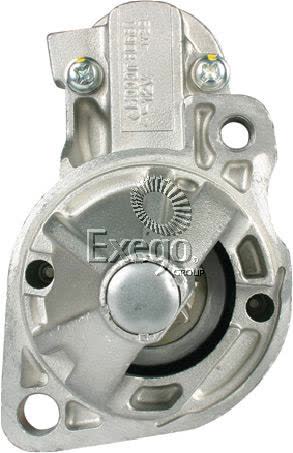

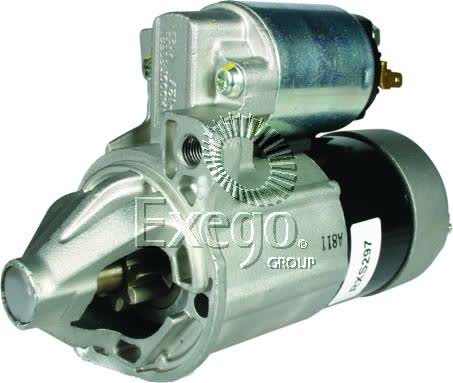

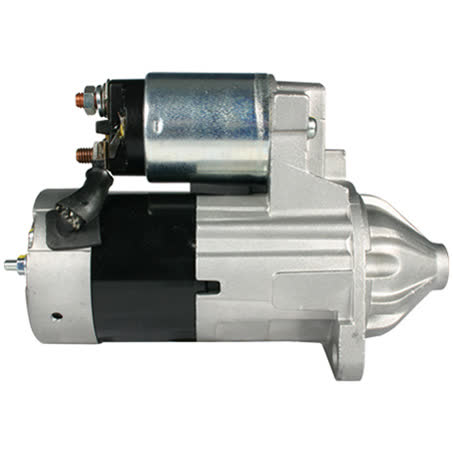

OEX Starter Motor 12V 8T CW Mitsubishi Style RXS297

This OEX starter motor is a 12V, clockwise rotation unit with an 8-tooth pinion and Mitsubishi style application. It is listed as remanufactured and carries part number RXS297, with a 1kW power rating and a 2-hole starter mount type.

Key physical measurements include a 97mm mount centres A, 71mm flange diameter, 46mm nose cone length, and 197mm overall length. The pinion diameter is 28mm, the pinion at rest is 10mm, and the mount hole diameter is listed as 11.3/10 x 1.2.

This starter motor is supplied as an each unit under the rotating electrical group. It is described for Mitsubishi applications, and the fitment information includes Mitsubishi FTO, Galant, Magna, Outlander and Verada variants, so matching the exact vehicle application and part number remains important before purchase.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 8-tooth pinion
• Mitsubishi style application
• Remanufactured unit
• 2-hole starter mount

Specifications

• Voltage: 12V
• Power rating: 1kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole
• Mount centres A: 97mm
• Flange diameter: 71mm
• Nose cone length: 46mm

Fitment information supplied

• Mitsubishi
• Mitsubishi FTO
• Mitsubishi Galant
• Mitsubishi Magna
• Mitsubishi Outlander
• Mitsubishi Verada

Application and Buying Notes

Before ordering, check the part number RXS297 against the existing unit and compare the listed dimensions: 97mm mount centres A, 71mm flange diameter, 46mm nose cone length and 197mm overall length. Starter fitment can vary even within the same vehicle family, so the 8-tooth pinion, 12V rating and clockwise rotation all need to match the original specification.

The mounting arrangement is also important. This unit is a 2-hole starter motor with mount hole diameter listed as 11.3/10 x 1.2, and the pinion diameter is 28mm with 10mm pinion at rest. Those details help confirm the starter will physically suit the bellhousing and engagement setup on the vehicle it is intended for.

Although the fitment data points to Mitsubishi applications, it is still best to verify the exact engine and build details on the vehicle you are working on. The listed applications include Mitsubishi FTO, Galant, Magna, Outlander and Verada variants, but the safest check is always the original starter part number, mounting style and tooth count.

Because this is a remanufactured starter, it is sensible to inspect the electrical connections, mounting face and surrounding components before installation. The unit weighs 2kg and is described as dry clutch type, so correct handling during install matters, especially where access is tight or the old starter has shown signs of heat or wear.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number RXS297 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 97mm, Nose Cone Length 46mm, Overall Length 197mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2kg, Product Group 1 ROTATING ELECTRICAL, Part No. RXS297, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 71mm, Mount Hole Diameter 11.3/10 X 1.2, Number of Teeth 8, Pinion at Rest 10mm, Power Rating 1kW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number RXS297 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number RXS297, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995, MITSUBISHI FTO 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number RXS297, the 12V clockwise specification, the 8-tooth pinion, and the measured mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is RXS297. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The voltage is listed as 12V. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 8 teeth. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.

What vehicles are listed in the supplied fitment data?

The supplied fitment data includes Mitsubishi, Mitsubishi FTO, Mitsubishi Galant, Mitsubishi Magna, Mitsubishi Outlander and Mitsubishi Verada. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as remanufactured. For this listing, part number RXS297 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI FTO, MITSUBISHI FTO 1994, MITSUBISHI FTO 1995. These details should still be checked against the original unit before ordering.
