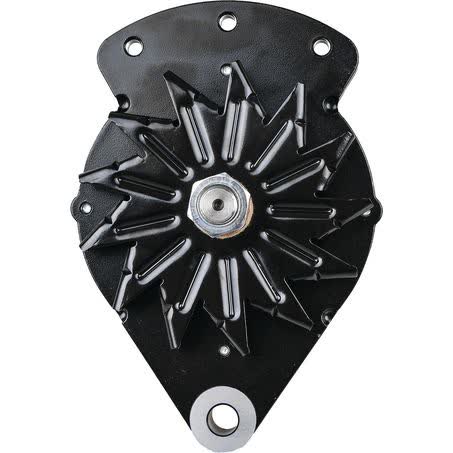

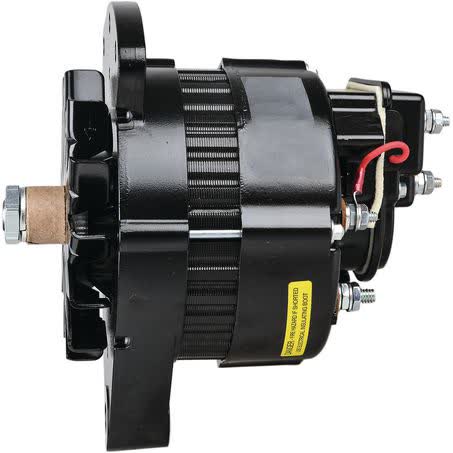

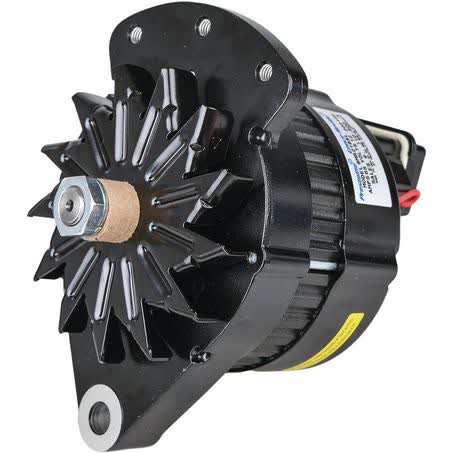

Prestolite Alternator 12V 65A 110-600

Prestolite alternator, 12V and 65A output, part number 110-600, supplied new as a single-leg mount unit. It is listed with internal regulation, clockwise rotation, and a 16mm shaft diameter, so it is intended for applications that match those electrical and mounting details.

This alternator is part of the 8MR series and is described as coated for environmental protection with external sense. The mounting details recorded include a 27mm mount leg thickness, 173mm mount centre to centre, 13mm pivot hole diameter, and 5/16 UNC adjusting hole diameter.

The unit is identified as new, sold each, and carries a one year warranty. It also weighs 5.24kg, which can be useful when comparing like-for-like replacements against the original unit already fitted to the vehicle or equipment.

The recorded fitment groups include Ford 7000-Series and 8000-Series, along with Thermo King KD-II, LND, RD-II, and TD-II applications. Those application names are helpful starting points, but the alternator still needs to match the existing mounting and electrical setup before purchase.

Key Features

• 12V alternator with 65A output
• Internal regulator
• Remote sense
• External sense noted
• Clockwise rotation
• Single-leg mount

Specifications

• Part number: 110-600
• Brand: Prestolite
• Series: 8MR
• Voltage: 12V
• Power rating: 65A
• Mounting: single leg
• Mount leg thickness: 27mm
• Mount centre to centre: 173mm

Recorded fitment groups

• Ford 7000-Series
• Ford 8000-Series
• Thermo King KD-II
• Thermo King LND
• Thermo King RD-II
• Thermo King TD-II

Application and Buying Notes

When comparing this alternator to the one in the vehicle or machine, the most important checks are the part number 110-600, 12V system voltage, 65A output, and the single-leg mount arrangement. The listed dimensions matter as much as the electrical rating: 27mm mount leg thickness, 173mm centre to centre, 13mm pivot hole diameter, and a 5/16 UNC adjusting hole diameter all need to line up with the existing installation.

The alternator is listed with internal regulation and external sense, along with remote sense. That combination means the charging arrangement should be checked carefully before ordering, especially where the original unit or wiring has a different regulator or sensing setup. A mismatch here can stop the alternator from fitting or functioning as intended.

The shaft diameter is listed as 16mm and the rotation as clockwise. Those details are important where the pulley, bracket alignment, or drive arrangement must match the existing unit. The pulley section is recorded as not applicable, so the alternator should be matched against the current installation rather than assumed to suit by appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 110-600 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 27mm, Power Rating (Amp) 65, Regulator Type Internal, Series 8MR, Suits Unit Make Prestolite, Note Coated for environmental protection. External sense, Mount Cnt to Cnt 173mm.

Additional published details for cross-checking include Shaft Dimension 16, Product Group 2 ALTERNATORS, Part No. 110-600, Brand PRESTOLITE, Description Prestolite Alternator 12V 65A, Adjusting Hole Diameter 5/16 UNC, Pivot Hole Diameter 13, Pulley Section Not Applicable, Rotation CW.

Prestolite Alternator 12V 65A. Part number 110-600 should be checked first. Listed voltage is 12. Listed output rating is 65. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 110-600, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 65 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES, FORD 8000-SERIES 1960, THERMO KING KD-II, THERMO KING KD-II 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number 110-600, the 12V 65A specification, and the recorded mounting and electrical details before ordering. The application names listed are a guide only, and the alternator should be matched to the existing unit, wiring, regulator setup, shaft size, and mounting measurements.

FAQ

What is the part number for this alternator?

The part number listed is 110-600. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 65A power rating. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.

What fitment groups are recorded for this alternator?

Recorded fitment groups include Ford 7000-Series, Ford 8000-Series, Thermo King KD-II, Thermo King LND, Thermo King RD-II, and Thermo King TD-II. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.

What mounting and shaft details should be checked before buying?

Check the single-leg mount, 27mm mount leg thickness, 173mm mount centre to centre, 13mm pivot hole diameter, 5/16 UNC adjusting hole diameter, and 16mm shaft diameter. For this listing, part number 110-600 is the main reference point. Listed voltage is 12. Listed output rating is 65. Published fitment references include FORD 7000-SERIES, FORD 7000-SERIES 1960, FORD 8000-SERIES. These details should still be checked against the original unit before ordering.
