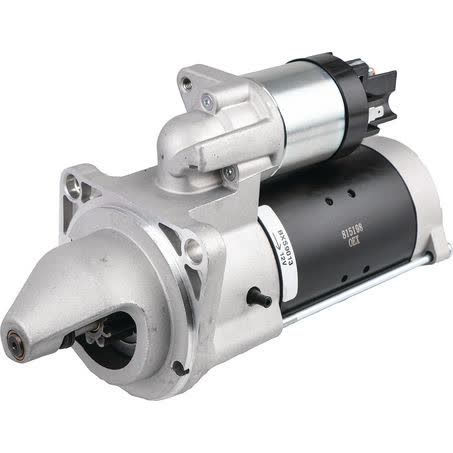

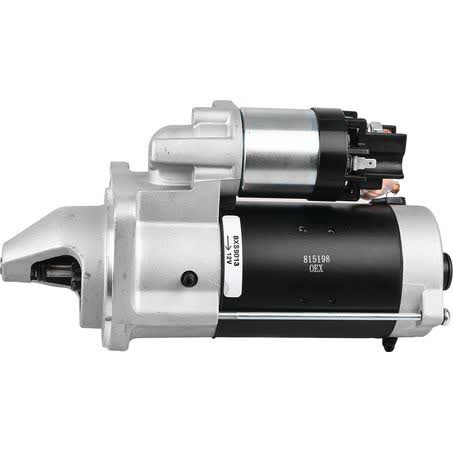

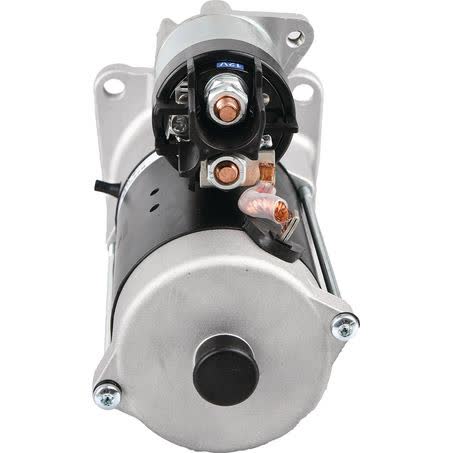

OEX Starter Motor 12V 9T CW Bosch Style BXS9013

The OEX starter motor BXS9013 is a new 12V unit with clockwise rotation, 9 teeth, and a 3kW power rating. It is listed as Bosch style and suits Bosch applications, with a passenger side mount note and a 5.5 drive pitch specified for JD Series use.

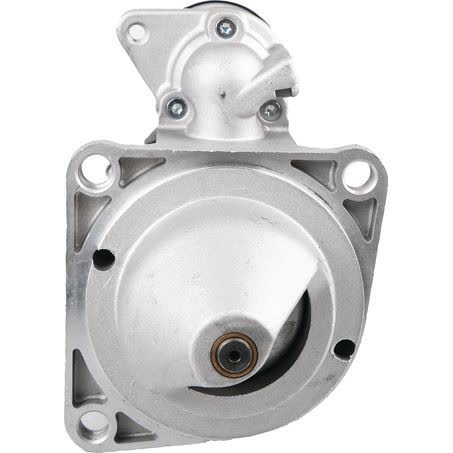

Key dimensions include 146mm mount centres A, 103mm mount centres C, a 110mm flange diameter, and a 340mm overall length. The starter uses a 3 hole mount, 12mm mounting holes, a 34mm pinion diameter, and a 28mm pinion at rest, so physical matching matters as much as the electrical rating.

This starter motor is sold as each and carries a 3 year passenger / 1 year commercial warranty. The unit weight is 8.22kg, and the product is identified as OEX part number BXS9013.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty. Those points support the product quality position, but the practical fit still needs to be checked against the vehicle application and mounting details.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 3kW power rating
• Bosch style unit
• New, not remanufactured

Specifications

• Brand: OEX
• Part number: BXS9013
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 3kW
• New / remanufactured: New

Verified fitment references

• CASE IH JX-SERIES
• FIAT 3350
• FIAT 3450
• FIAT 400
• FIAT 90
• FIAT ALLIS
• FIAT ALLIS FL4C
• FIAT ALLIS FL4D

Application and Buying Notes

Before ordering, match the part number BXS9013 and compare the physical dimensions: 146mm mount centres A, 103mm mount centres C, 110mm flange diameter, and 340mm overall length. The starter is a 3 hole mount with 12mm mounting holes, so the mounting pattern needs to line up with the existing unit.

The electrical and drive details are just as important. This starter is 12V, clockwise rotation, 9 tooth, 3kW, with a 34mm pinion diameter and 28mm pinion at rest. If any of those details differ from the replacement required by your machine, it should be treated as a different application.

There is a specific note for JD Series, passenger side mount, 5.5 drive pitch. That note should be checked carefully against the machine you are working on, along with the Bosch style requirement, because starter motors can look similar while still having different mounting or drive arrangements.

The fitment references cover CASE IH JX-SERIES, several FIAT applications, and a number of NEW HOLLAND models. Even where the brand family is listed, final confirmation should still be made using the existing starter, the application details, and the measured mounting points on the machine.

This unit is new and weighs 8.22kg, which can help when comparing to the removed part or checking freight handling. The listed warranty is 3 years for passenger use and 1 year for commercial use, so make sure the intended use matches the warranty category that applies.

If the current starter is Bosch style and the mounting pattern, drive pitch, rotation, and tooth count all match, BXS9013 is the key identifier to cross-check. If any of those items are uncertain, it is safer to verify before fitment rather than rely on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9013 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 146mm, Mount Centres C 103mm, Number of Teeth 9, Pinion at Rest 28mm, Power Rating 3kW, Suits Unit Make Bosch, Note JD Series. Passenger side mount, 5.5 Drive Pitch..

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 8.22kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS9013, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 110mm, Mount Centres B 103mm, Mount Hole Diameter 12, Overall Length 340mm.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS9013 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9013, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number BXS9013, Bosch style application details, 12V clockwise 9 tooth configuration, and the mounting measurements before purchase.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, 12V, clockwise rotation, with 9 teeth and a 3kW power rating.

What is the part number?

The listed part number is BXS9013.

What vehicles or equipment does it reference?

Verified references include CASE IH JX-SERIES, FIAT 3350, FIAT 3450, FIAT 400, FIAT 90, FIAT ALLIS, and several NEW HOLLAND models such as 4230, 4430 N, 4430 V, 500, 5530 HC, 5635, 6530 HC, 6635, 7635, TD, TD 5, TK76, and TK85.

What mounting details are listed?

The listed mounting details are a 3 hole starter mount, 146mm mount centres A, 103mm mount centres C, 103mm mount centres B, a 110mm flange diameter, and 12mm mounting holes.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What warranty is provided?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
