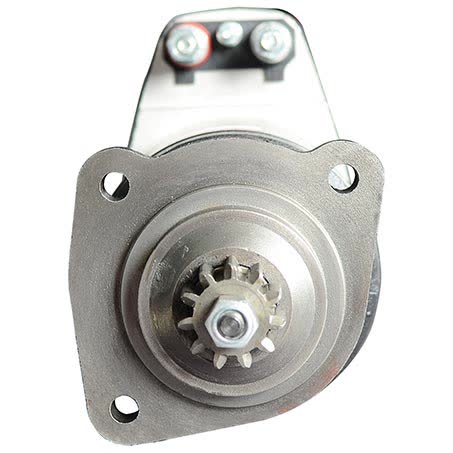

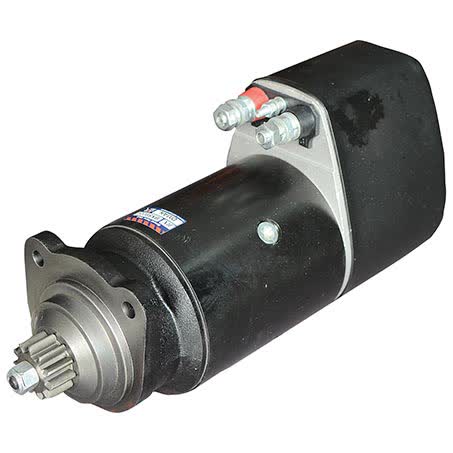

OEX Starter Motor 24V 11 Tooth CW Bosch Style BXS9024

The OEX BXS9024 is a 24V starter motor with 11 teeth, clockwise rotation, and a Bosch suitment style. It is a new unit, supplied as a starter motor each, with a 3-hole starter mount type, 89mm flange diameter, and 17kg weight. For buyers replacing an existing Bosch-style starter, the key checks here are the 24V system, 11-tooth pinion, and the listed mounting dimensions.

This unit is rated at 5.4kW and has an overall length of 406mm, with mount centres A at 127mm and mount centres C and B both at 90mm. The pinion diameter is 41mm, pinion at rest is 48mm, and the mount hole diameter is 10mm. Those dimensions matter when matching a starter to the housing, bellhousing clearance, and original fitment pattern.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty. The warranty listed for this part is 3 years for passenger use and 1 year for commercial use, which gives you a clear reference point when choosing a replacement starter for equipment or vehicles that match the supplied application details.

Key Features

• 24V starter motor
• 11-tooth pinion
• Clockwise rotation
• Bosch suitment style
• 5.4kW power rating
• New unit

Specifications

• Part number: BXS9024
• Brand: OEX
• Type: Starter motor
• Voltage: 24V
• Power rating: 5.4kW
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Bosch

Known applications listed for this starter motor

• Atlas Copco PR 425
• Deutz F6L413
• Doosan/Daewoo MEGA160
• Doosan/Daewoo MEGA200
• Doosan/Daewoo MEGA250V
• Doosan/Daewoo MEGA400
• Fiat Allis FL7
• Fiat Allis FR10

Application and Buying Notes

Before ordering, check the existing starter against the listed part number BXS9024 and the Bosch suitment style. The most important physical checks are the 24V system, 11 teeth, clockwise rotation, 3-hole mount, 89mm flange diameter, and the 127mm / 90mm mount-centre pattern. If any of those differ on the unit you are replacing, the part should be confirmed before purchase.

The 5.4kW rating and 406mm overall length are useful reference points, but they should be treated alongside the pinion diameter of 41mm and pinion at rest of 48mm. On starter motors, matching only the voltage is not enough; the mounting face, tooth count, and rotation direction must also align with the original unit and the machine or vehicle application.

This starter is listed as suitable for wet or dry clutch applications, which broadens its use across the stated applications, but it does not remove the need to verify the exact fit. The supplied application list includes equipment and vehicles such as Atlas Copco PR 425, Doosan/Daewoo MEGA series models, Fiat Allis FL7 and FR10, Ford Cargo, Liebherr R961 and R971, Terex O&K TL200-1 and TXL250, and Volvo B10, so confirm the original starter details against your machine before fitting.

If you are comparing options, use the starter’s physical dimensions and electrical rating together rather than relying on appearance alone. The unit weighs 17kg, uses a 10mm mount hole diameter, and is a new OEX starter motor rather than a remanufactured one. Those details can be helpful when confirming the replacement with a parts record, an old unit on the bench, or the machine’s service information.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9024 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 5.4kW, Suits Unit Make Bosch, Note KB Series Short length = BXS9063.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. BXS9024, Brand OEX, Description OEX Starter Motor 24V 11Th CW Bosch Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 10.

OEX Starter Motor 24V 11Th CW Bosch Style. Part number BXS9024 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9024, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO PR 425, ATLAS COPCO PR 425 1984, ATLAS COPCO PR 425 1985, ATLAS COPCO PR 425 1986, DEUTZ F6L413, DOOSAN/DAEWOO MEGA160. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the part number BXS9024, 24V voltage, 11-tooth CW configuration, Bosch suitment style, and the listed mounting dimensions against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS9024.

What voltage does this starter motor use?

It is a 24V starter motor.

Is this starter clockwise or counter-clockwise rotation?

It is clockwise rotation (CW).

How many teeth does the pinion have?

The pinion has 11 teeth.

What are the main mounting dimensions?

The listed mounting details are a 3-hole starter mount type, 89mm flange diameter, mount centres A of 127mm, mount centres B of 90mm, mount centres C of 90mm, and a 10mm mount hole diameter.

Is this a new or remanufactured unit?

It is listed as a new starter motor.
