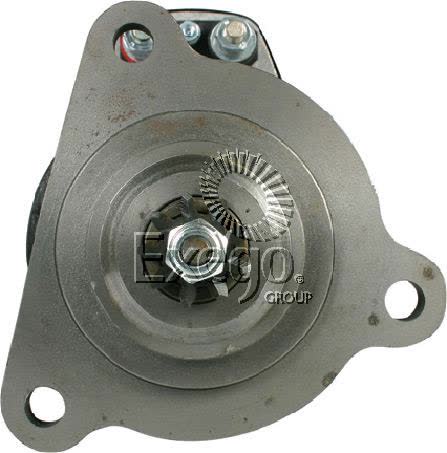

OEX Starter Motor 24V 9TH CW Bosch Style BXS9027

The OEX Starter Motor BXS9027 is a 24V starter motor with 9 teeth, clockwise rotation and Bosch-style fitment details. It is listed as a new unit, with a 5.4kW power rating, a 3-hole starter mount type, and a KB Series note for identification purposes.

Key dimensions for checking installation include 126mm mount centres, a 92mm flange diameter, 385mm overall length and a 34mm pinion diameter. The pinion at rest measures 48mm, and the unit weighs 16.3kg, so it is important to compare the physical dimensions against the original starter before ordering.

This starter motor is intended for applications that suit Bosch unit make and is supplied under OEX part number BXS9027. The warranty listed is 3yr Passenger / 1yr Commercial, which may be useful when matching the part to vehicle use and duty cycle expectations.

Key Features

• 24V starter motor
• 9-tooth pinion
• Clockwise rotation
• Bosch style / suits Bosch unit make
• 5.4kW power rating
• New unit

Specifications

• Voltage: 24V
• Power rating: 5.4kW
• Rotation: CW
• Number of teeth: 9
• Suits unit make: Bosch
• Part No.: BXS9027
• Mount centres A: 126mm
• Mount centres B: 126mm

Checked application references

• Bertram 630
• Claas Jaguar
• Claas Jaguar 1990
• MAN 10.168
• MAN 15.168
• MAN 15.168 1990
• MAN 15.321
• MAN 16.192

Application and Buying Notes

Before ordering, confirm the original starter matches the 24V electrical setup, Bosch-style application, clockwise rotation and 9-tooth pinion arrangement. The BXS9027 also has a 3-hole mount, 126mm mount centres and a 92mm flange diameter, so those physical points should line up with the vehicle or equipment already fitted.

The overall length of 385mm, pinion diameter of 34mm and pinion at rest measurement of 48mm are useful checks when comparing against the removed unit. These dimensions matter on starters because mounting position, bellhousing clearance and engagement depth need to match the existing setup.

The listed application references include Bertram 630, Claas Jaguar, MAN 10.168 and 15.168 variants, and several Mercedes-Benz series applications. Even with those references, the safest way to buy is to confirm the part number BXS9027 and compare the unit make, tooth count, rotation and mounting measurements against the existing starter.

This starter is a new OEX unit and is listed with a 3yr Passenger / 1yr Commercial warranty. If the vehicle or machine is used commercially, it is sensible to check that the duty cycle and service expectations suit the application before fitting, especially on heavier 24V systems.

If your original starter differs in any key detail, do not rely on the badge alone. The important checkpoints here are the part number, Bosch-style fitment, 24V rating, CW rotation, 9 teeth, 3-hole mount and the 126mm / 92mm dimensional set.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9027 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 9, Pinion at Rest 48mm, Power Rating 5.4kW, Suits Unit Make Bosch, Note KB Series.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. BXS9027, Brand OEX, Description OEX Starter Motor 24V 9Th CW Bosch Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13.

OEX Starter Motor 24V 9Th CW Bosch Style. Part number BXS9027 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9027, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number BXS9027, Bosch-style application details, 24V rating, CW rotation, 9 teeth, 3-hole mounting and the listed measurements against your existing starter before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is BXS9027. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.

What voltage is the starter motor?

It is a 24V starter motor. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter motor is clockwise rotation, noted as CW. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.

What type of unit make does it suit?

It suits Bosch unit make and is described as Bosch style. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty listed is 3yr Passenger / 1yr Commercial. For this listing, part number BXS9027 is the main reference point. Listed voltage is 24. Published fitment references include BERTRAM 630, CLAAS JAGUAR, CLAAS JAGUAR 1990. These details should still be checked against the original unit before ordering.
