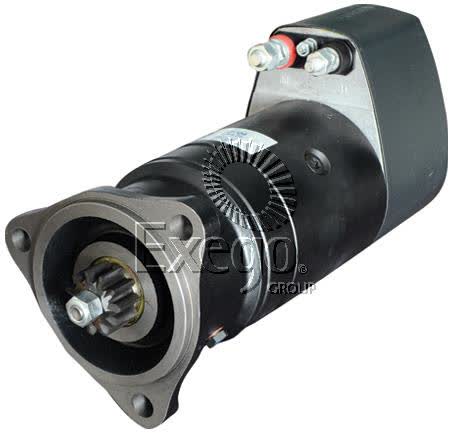

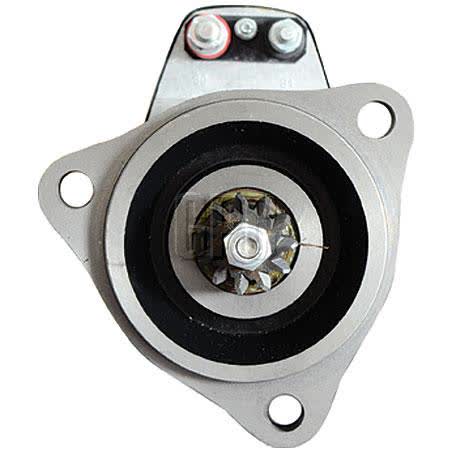

OEX Starter Motor 24V 11 Tooth CW Bosch Style BXS9032

The OEX Starter Motor BXS9032 is a 24V unit with 11 teeth and clockwise rotation, built in Bosch style for applications that call for that mounting and drive arrangement. It is a new starter motor, not a remanufactured unit, and it carries a 6.6kW power rating for the relevant heavy-duty starting setup.

Key dimensions include 126mm mount centres A, 126mm mount centres B and 126mm mount centres C, with a 115mm flange diameter, 15mm mount hole diameter and 410mm overall length. The pinion sits at 20mm at rest, with a 40mm pinion diameter, so checking the physical layout against the removed part is important before ordering.

This starter is listed as suitable for Bosch unit make applications and carries the note KB Series. It is specified as wet or dry clutch compatible, which gives useful context for vehicles and equipment where the starter is matched to that style of arrangement rather than a general-purpose fitment.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, are sourced from ISO certified factories, and are backed by a comprehensive nationwide warranty. Warranty is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• 24V starter motor
• 11 tooth drive
• Clockwise rotation
• Bosch style construction
• New unit
• Suitable for wet or dry clutch applications

Specifications

• Power rating: 6.6kW
• Voltage: 24V
• Number of teeth: 11
• Rotation: CW
• Suits unit make: Bosch
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm
• Flange diameter: 115mm

Fitment guidance

• International E-Series
• International E-Series 1991
• International E-Series 1992
• International E-Series 1993
• International E-Series 1994
• Iveco Eurostar
• Iveco Eurostar 1996
• Iveco Eurostar 1997

Application and Buying Notes

Before buying, confirm the part number BXS9032 against the removed starter and check the 24V system requirement, the 11 tooth drive, and clockwise rotation. The listed 126mm mount centres, 115mm flange diameter, 15mm mount hole diameter and 410mm overall length are the most practical dimensions to compare when matching the physical fit.

This starter is described as Bosch style and suited to Bosch unit make applications, so matching the original starter layout matters as much as the vehicle model. The 3 hole mount type and the 40mm pinion diameter are important checkpoints if you are cross-referencing the original unit rather than relying on appearance alone.

The unit is rated at 6.6kW and listed as new, which helps set expectations for application and service life, but it should still be matched carefully to the vehicle’s electrical system and starter mounting arrangement. For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years.

Fitment references supplied for this part include International E-Series, Iveco Eurostar and Iveco Eurotech MP applications across selected model years. Those references are useful starting points, but they should be confirmed against the exact engine, transmission or starter specification fitted to the vehicle, because those details can change the correct starter selection.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9032 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 20mm, Power Rating 6.6kW, Suits Unit Make Bosch, Note KB Series.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Weight 20.34kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS9032, Brand OEX, Description OEX Starter Motor 24V 11Th CW Bosch Style, Flange Diameter 115mm, Mount Centres B 126mm, Mount Hole Diameter 15.

OEX Starter Motor 24V 11Th CW Bosch Style. Part number BXS9032 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9032, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992, INTERNATIONAL E-SERIES 1993, IVECO EUROSTAR, IVECO EUROSTAR 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number BXS9032, the 24V electrical requirement, 11 tooth count, clockwise rotation and the physical dimensions listed here. Where fitment references are available, verify the exact vehicle application and existing starter details before ordering.

FAQ

Is this starter motor new or remanufactured?

This OEX starter motor is listed as new. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.

What rotation is this starter motor?

It is clockwise rotation, listed as CW. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.

What vehicles are referenced for fitment?

Fitment references supplied include International E-Series, Iveco Eurostar and Iveco Eurotech MP applications across selected model years. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS9032 is the main reference point. Listed voltage is 24. Published fitment references include INTERNATIONAL E-SERIES, INTERNATIONAL E-SERIES 1991, INTERNATIONAL E-SERIES 1992. These details should still be checked against the original unit before ordering.
