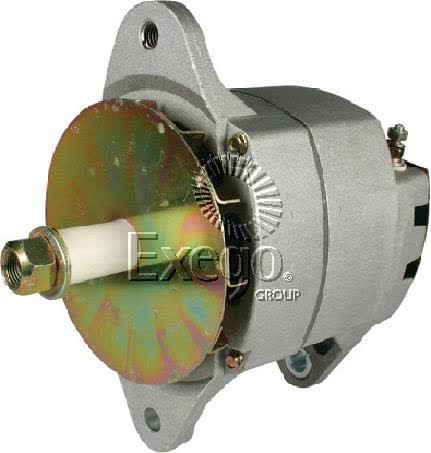

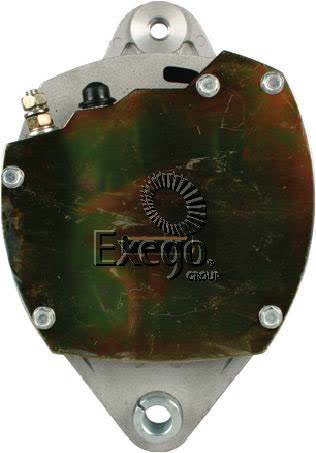

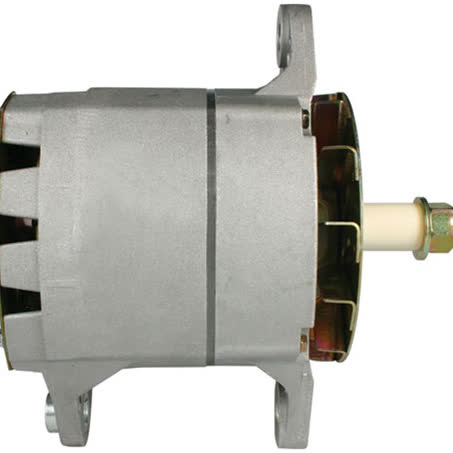

OEX Alternator 12V 60A Delco 20SI Style DXA9105

The OEX Alternator DXA9105 is a new 12V, 60A unit built in Delco 20SI style for rotating electrical applications. It is a twin leg alternator with an internal regulator, 22mm shaft diameter and 198mm mount centre-to-centre, which are the key dimensions to check before ordering.

This unit is listed as a brushless alternator and is supplied as each. The inside mounting legs measure 101mm, the pivot hole diameter is 13mm, and the adjusting hole diameter is 1/2 UNC. Those mounting details matter when you are matching a replacement to an existing alternator or bracket set-up.

OEX notes that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories that are ISO9001 certified. For this alternator, the part number is DXA9105 and the series is 20SI, so confirm both the application and the mounting measurements against the unit you are replacing before purchase.

Key Features

• 12V alternator with 60A output
• Delco 20SI style
• Brushless unit
• Internal regulator
• Twin leg alternator mount
• New unit, supplied each

Specifications

• Voltage: 12V
• Power rating: 60A
• Series: 20SI
• Suits unit make: Delco
• Alternator mount: Twin leg
• Inside mounting legs: 101mm
• Mount centre-to-centre: 198mm
• Shaft diameter: 22mm

Fitment guidance

• Caterpillar 784
• Caterpillar 785B
• Caterpillar 789
• Clark 55C
• International Acco
• Iveco Acco
• John Deere 5020
• Massey Ferguson 3070

Application and Buying Notes

Check the part number DXA9105 first, then compare the 12V rating, 60A output, Delco 20SI style and twin leg mounting before ordering. The key physical checks on this alternator are the 198mm mount centre-to-centre, 101mm inside mounting legs, 22mm shaft diameter and 13mm pivot hole diameter.

This alternator uses an internal regulator and is described as a brushless unit, so it should only be selected where that configuration matches the vehicle or equipment already fitted. The listed applications cover a range of Caterpillar, Clark, International, Iveco, John Deere and Massey Ferguson models, but the exact fit still depends on the original alternator and bracket dimensions.

Because alternators can look similar while carrying different mounting and electrical details, it is worth verifying the shaft size, adjusting hole style and overall mount layout against the removed unit. The weight is 8.26kg, which can also help when comparing a replacement in the workshop or on the shelf.

The warranty listed for this OEX alternator is 3yr Passenger and 1yr Commercial. That is useful for buying confidence, but it does not replace the need to confirm the application, as the correct fit is still determined by the part number, the Delco 20SI style and the measured mounting points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA9105 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 101mm, Power Rating (Amp) 60, Series 20SI, Suits Unit Make Delco, Note Brushless unit, Mount Cnt to Cnt 198mm, Shaft Dimension 22.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA9105, Brand OEX, Description OEX Alternator 12V 60A Delco 20SI Style, Adjusting Hole Diameter 1/2 UNC, Pivot Hole Diameter 13, Regulator Type Internal, Shaft Diameter 22mm, Voltage 12.

OEX Alternator 12V 60A Delco 20SI Style. Part number DXA9105 should be checked first. Listed voltage is 12. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA9105, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number DXA9105, the Delco 20SI style, and the stated mounting and electrical specifications before ordering. If the existing unit does not match the 12V, 60A, twin leg, internal regulator configuration or the listed hole and shaft dimensions, do not assume compatibility.

FAQ

What is the part number for this alternator?

The part number is DXA9105. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with a 60A power rating. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It uses an internal regulator. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.

What mounting measurements are listed?

The listed mounting details are 198mm mount centre-to-centre, 101mm inside mounting legs, 13mm pivot hole diameter and 1/2 UNC adjusting hole diameter. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.

Which vehicle or equipment applications are listed?

Listed applications include Caterpillar 784, 785B and 789, Clark 55C, International Acco, Iveco Acco, John Deere 5020, Massey Ferguson 3070 and Massey Ferguson 4840. Always confirm the exact fit against the original alternator and mounting measurements before ordering. For this listing, part number DXA9105 is the main reference point. Listed voltage is 12. Listed output rating is 60. Published fitment references include CATERPILLAR 784, CATERPILLAR 784 1990, CATERPILLAR 785B. These details should still be checked against the original unit before ordering.
