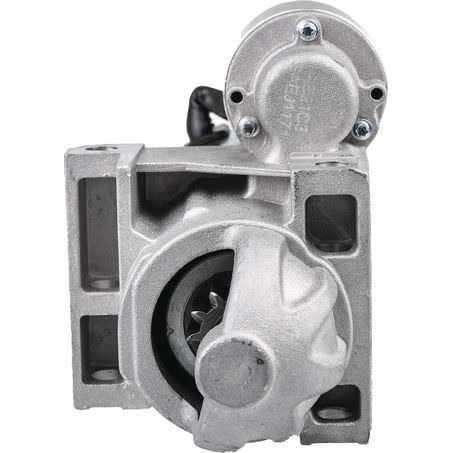

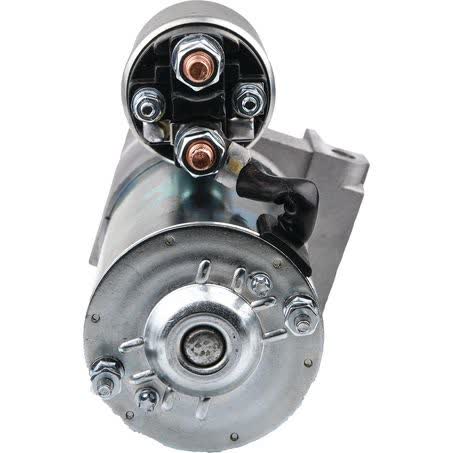

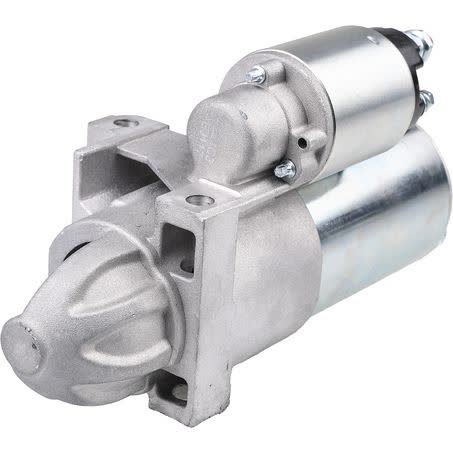

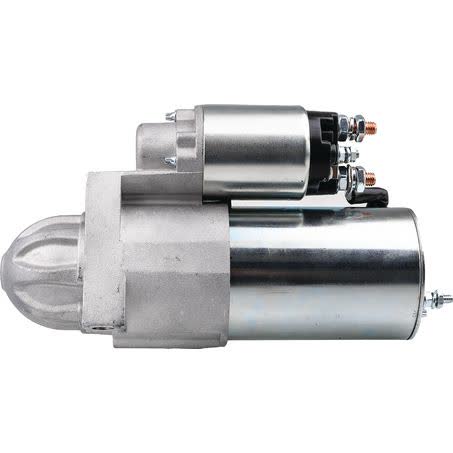

OEX Starter Motor 12V 11 Tooth CW Delco Style DXS9100

The OEX DXS9100 starter motor is a 12V, 11 tooth, clockwise rotating unit in the PG260 series, built as a new starter motor with a pad mount and Delco suitability. It is listed with an 83mm mount centre measurement, 68mm flange diameter, and 235mm overall length, so the physical dimensions can be checked against the original unit before purchase.

This starter motor suits Delco applications and is noted as a PG260 series offset mount, sealed unit with J1171 Marine certification. The pinion at rest measures 6mm, the pinion diameter is 28mm, and the mount hole diameter is 10mm, which are practical checks when comparing against a removed starter or installation space.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with products sourced from ISO certified factories. The unit carries a 3 year passenger and 1 year commercial warranty, and weighs 4.6kg as supplied.

If you are replacing a starter on a compatible Delco application, the key identifiers to verify are DXS9100, 12V operation, 11 teeth, CW rotation, and the PG260 series offset mount. Matching these details to the original starter is the safest way to avoid a mismatch.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Delco suitability
• PG260 series
• New unit, not remanufactured

Specifications

• Part number: DXS9100
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 11
• Rotation: CW
• Power rating: 1.6kW
• Series: PG260

Known application references

• Daewoo Industrial G35S/GC35S
• Daewoo Industrial G35S/GC35S 1998
• Daewoo Industrial G40S/GC40S
• Daewoo Industrial G40S/GC40S 1998
• Daewoo Industrial G45S/GC45S
• Daewoo Industrial G45S/GC45S 1998

Application and Buying Notes

Before ordering, compare the part number DXS9100, the 12V rating, 11 tooth pinion, and CW rotation with the starter already fitted to the machine. Those details are the quickest way to confirm whether this OEX unit matches the original application, especially where Delco style starters can look similar but differ in mount pattern or pinion setup.

The physical measurements matter as much as the electrical rating. Check the 83mm mount centres, 68mm flange diameter, 10mm mount hole diameter, 235mm overall length, and 28mm pinion diameter against the removed starter and the available clearance around the mounting face.

This is a PG260 series offset mount starter and the note specifies a sealed unit with J1171 Marine certification. If your application relies on that style of mounting or sealing, confirm those details carefully before purchase rather than assuming a general Delco starter will interchange.

The listed power rating is 1.6kW, which helps confirm the starter class, but it should still be matched to the original unit rather than used as the only selection point. The starter is new, weighs 4.6kg, and is supplied with a 3 year passenger and 1 year commercial warranty.

Where a machine model is shown in the fitment references, use it as a guide only and still verify the installed part number and dimensions. Starter motor interchange can vary within the same model range, and the most reliable check is always the combination of electrical rating, tooth count, rotation, and mounting dimensions.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9100 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 83mm, Number of Teeth 11, Pinion at Rest 6mm, Power Rating 1.6kW, Series PG260, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS9100, Brand OEX, Description OEX Starter Motor 12V 11Th CW Delco Style, Flange Diameter 68mm, Mount Hole Diameter 10, Overall Length 235mm, Pinion Diameter 28mm.

OEX Starter Motor 12V 11Th CW Delco Style. Part number DXS9100 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9100, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAEWOO INDUSTRIAL G35S/GC35S, DAEWOO INDUSTRIAL G35S/GC35S 1998, DAEWOO INDUSTRIAL G40S/GC40S, DAEWOO INDUSTRIAL G40S/GC40S 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching the part number DXS9100, 12V specification, 11 tooth CW rotation, Delco suitability, and the mounting measurements against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS9100.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What is the rotation direction?

The starter motor rotates clockwise, noted as CW.

Is this a new or remanufactured unit?

It is a new starter motor, not a remanufactured unit.

What fitment information is shown?

The listed application references include Daewoo Industrial G35S/GC35S, G40S/GC40S, and G45S/GC45S, including 1998 references. Fitment should still be confirmed against the part number and mounting dimensions.
