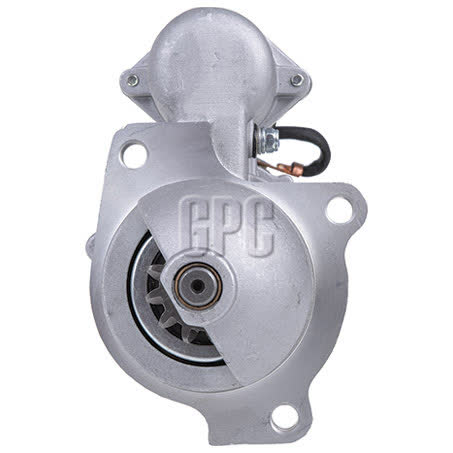

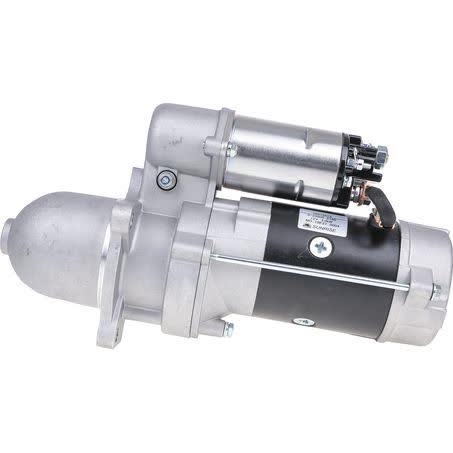

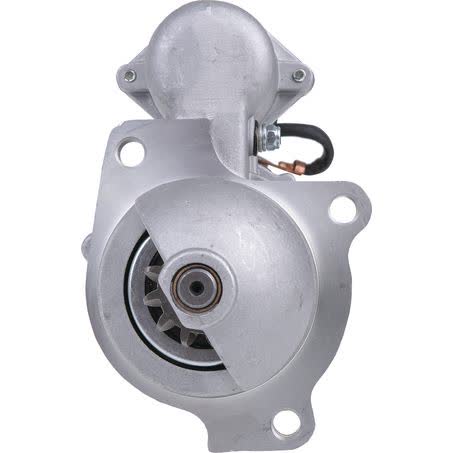

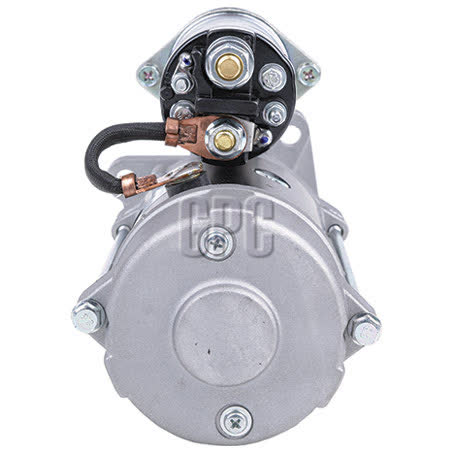

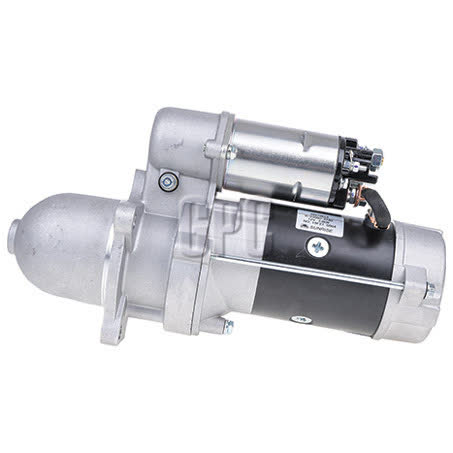

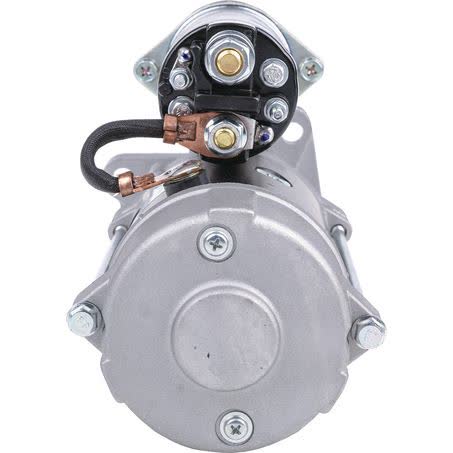

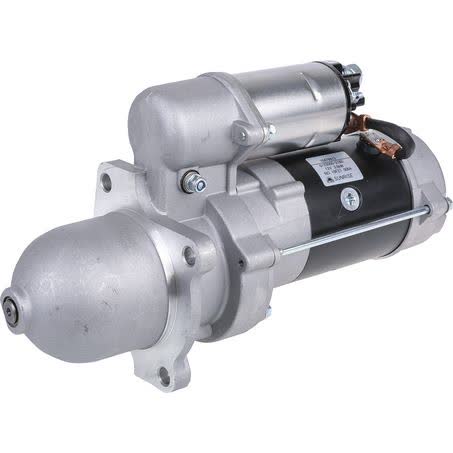

Genuine Products Starter Motor 12V 12T CW Delco 28MT Style DXS9110

The Genuine Products starter motor listed here is a 12V unit in Delco 28MT style, with 12 teeth, clockwise rotation and a 2.5kW power rating. It is identified as part number DXS9110 and is supplied new, not remanufactured, which matters when you are matching a replacement against an existing starter in service.

Key physical details are important on a starter like this, and the main measurements provided include 127mm mount centres A, 90mm mount centres B and C, a 89mm flange diameter, 11mm mount hole diameter and an overall length of 335mm. Those dimensions, along with the 3-hole starter mount type, help narrow down whether the unit will physically suit the application.

This starter is listed for Delco as the unit make and is noted for wet or dry clutch use. It is also described as being built to withstand harsh environments, which is a useful point for machinery and equipment that sees demanding duty cycles, but the deciding factor for purchase should still be the part number and the application details.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. As with any starter motor, correct matching of voltage, rotation, tooth count and mounting pattern is essential before fitting.

Key Features

• 12V starter motor
• 12-tooth pinion
• Clockwise rotation
• 2.5kW power rating
• Delco 28MT style
• New unit

Specifications

• Part number: DXS9110
• Brand: Genuine Products
• Type: Starter motor
• Voltage: 12V
• Power rating: 2.5kW
• Rotation: CW
• Number of teeth: 12
• Series: 28MT

Known fitment references

• BOBCAT 1600
• BOBCAT 3022
• BOBCAT 611
• BOBCAT 631
• BOBCAT 643
• BOBCAT 721
• BOBCAT 743
• BOBCAT 773C/F/G

Application and Buying Notes

Before ordering, compare the existing starter’s part number, mounting layout and electrical specification against DXS9110. The listed unit is a 12V Delco 28MT style starter with clockwise rotation, 12 teeth and a 2.5kW rating, so those details need to line up with the equipment you are replacing it on.

The mounting dimensions are just as important as the electrical details. This starter has 127mm mount centres A, 90mm mount centres B and C, an 89mm flange diameter and 11mm mount hole diameter, with a 3-hole mount type and 335mm overall length. If any of those measurements differ from the unit already fitted, the part may not be correct even if the starter looks similar.

The fitment references supplied include Bobcat, Ditch Witch, Gehl and New Holland applications, but they should be used as a guide only. Model names can overlap across different variants and production periods, so the safest check is to confirm the part number, tooth count, rotation and mounting measurements against the original starter or the equipment identification details.

This unit is listed as suitable for wet or dry clutch applications and weighs 8.72kg. That weight and the 28MT series designation can help when comparing to an existing component, especially where the original starter has a matching Delco pattern and similar physical size.

Warranty is listed differently for passenger and commercial use, at 3 years and 1 year respectively. If the starter is being fitted to machinery or a commercial application, that commercial warranty period is the relevant one to keep in mind.

For a correct installation, check that the pinion diameter and pinion at rest are both 46mm, and confirm there is adequate clearance around the mounting face and overall length of 335mm. Starter motors are not forgiving of close-but-not-quite matches, so the details need to be confirmed before purchase and before fitment.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9110 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 12, Pinion at Rest 46mm, Power Rating 2.5kW, Series 28MT, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. DXS9110, Brand GENUINE PRODUCTS, Description Genuine Starter Motor 12V 12Th CW Delco 28MT Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11.

Genuine Starter Motor 12V 12Th CW Delco 28MT Style. Part number DXS9110 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9110, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number DXS9110, the Delco 28MT style, 12V specification, 12-tooth clockwise rotation and the listed mounting dimensions against the original starter or equipment application before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS9110.

Is this starter motor new or remanufactured?

It is listed as new.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 12 teeth.

What mounting details are listed for this starter?

The listed mounting details are a 3-hole starter mount, 127mm mount centres A, 90mm mount centres B and C, an 89mm flange diameter and 11mm mount hole diameter.

What warranty is shown for this product?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
