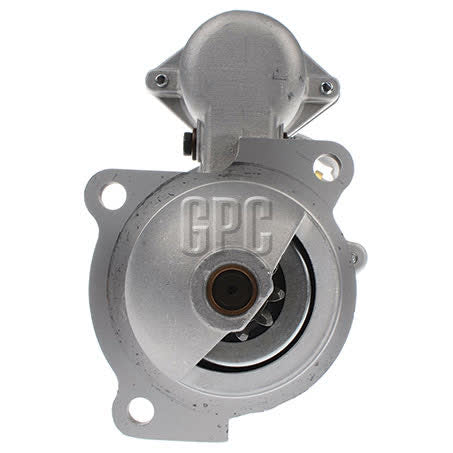

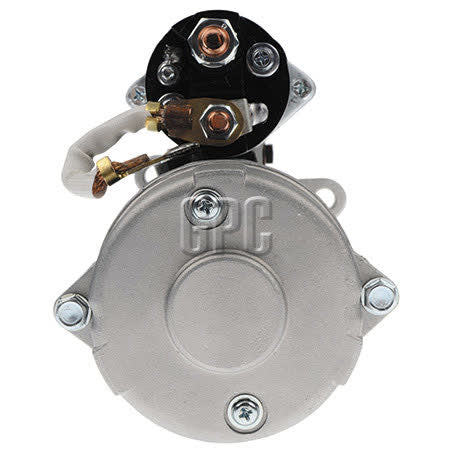

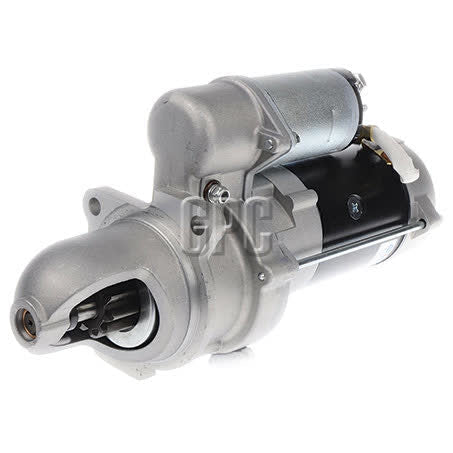

Genuine Products Starter Motor 12V 10 Tooth CW Delco 28MT Style DXS9122

This Genuine Products starter motor is a 12V unit with 10 teeth and clockwise rotation, built in a Delco 28MT style and identified by part number DXS9122. It is listed as a new starter motor and is supplied as one each, with a 2.5kW power rating for rotating electrical applications.

Key physical details matter on this unit, including a 3-hole starter mount, 127mm mount centres A, 90mm mount centres B and C, a 89mm flange diameter, and 10mm mount hole diameter. The overall length is 335mm, the pinion at rest is 46mm, and the pinion diameter is 40mm.

This starter is marked for wet or dry clutch use and suits Delco applications where the 28MT pattern and the listed measurements match the vehicle or equipment being repaired. The warranty listed is 3 years for passenger use and 1 year for commercial use, which gives a useful reference when comparing replacement options.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• Delco application
• 28MT style
• 2.5kW power rating

Specifications

• Voltage: 12V
• Power rating: 2.5kW
• Rotation: CW
• Number of teeth: 10
• Series: 28MT
• Suits unit make: Delco
• Starter mount type: 3 hole
• Mount centres A: 127mm

Compatible applications listed for this starter motor

• BOBCAT: 1080C, 2000, 2400, 2410, 3022, 3023, 640, 641, 740, 741, 843/B, 843HC, 853C/HC, 943
• CASE: 2400GD, 433, 533/A, 540, 633A, 640A, IH, IH 3220
• CASE IH: 3220, 395, 4210, 695, CX, V633
• CATERPILLAR: D9H
• CLARK: 2000, 843, C500
• DEUTZ-FAHR: DX
• DYNAPAC: CC10
• HYSTER: H-110 / H-130, H-110XL, H-150, H-30 / H-30E, H-40F / H-40H / H-50F / H-50H, H-60C / H-60-CP, H-70C / H-80C, H-70XL, H-80XL

Application and Buying Notes

When comparing this starter motor, check the part number DXS9122 first, then confirm the 12V system, 10-tooth pinion, clockwise rotation and 28MT style before ordering. The mounting details are just as important on this type of replacement: 3-hole mount, 127mm mount centres A, 90mm mount centres B and C, 89mm flange diameter, and 10mm mount holes.

The listed Delco application is helpful, but fit still depends on the exact starter pattern and the measured dimensions matching the original unit. A starter can share a similar appearance and still differ in pinion depth, mount spacing, or overall length, so the 335mm overall length and 46mm pinion at rest are worth checking against the old starter.

This unit is specified at 2.5kW and weighs 8.64kg, which are useful reference points when comparing with an existing starter or cross-checking part catalogues. It is also marked for wet or dry clutch use, so the application context matters where the vehicle or machine configuration may vary between models or build dates.

The fitment list includes equipment from Bobcat, Case, Case IH, Caterpillar, Clark, Deutz-Fahr, Dynapac, Hyster, International Harvester, John Deere, Manitou, Massey Ferguson, Spra Coupe and Toro. Even with those listed applications, the safest approach is to verify the starter on the machine itself and compare the mounting face, tooth count, rotation, and the DXS9122 identifier before finalising the purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9122 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 46mm, Power Rating 2.5kW, Series 28MT, Voltage 12.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, Weight 8.64kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS9122, Brand GENUINE PRODUCTS, Description Genuine Starter Motor 12V 10Th CW Delco 28MT Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 10.

Genuine Starter Motor 12V 10Th CW Delco 28MT Style. Part number DXS9122 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9122, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BOBCAT 1080C, BOBCAT 2000, BOBCAT 2400, BOBCAT 2400 1990, CASE 2400GD, CASE 433. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching the part number DXS9122, the 12V specification, 10-tooth clockwise Delco 28MT style, and the listed mounting dimensions against the existing starter and vehicle application.

FAQ

What type of starter motor is this?

It is a new 12V starter motor, 10 tooth, clockwise rotation, Delco suit application, and 28MT style. The part number is DXS9122.

Is this a new or reconditioned unit?

This starter motor is listed as new.

What are the main mounting measurements?

The listed mounting details are a 3-hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, 89mm flange diameter, and 10mm mount hole diameter.

What power rating does it have?

The power rating listed is 2.5kW.

Which way does it rotate?

It is clockwise rotation, shown as CW.

What warranty is listed?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
