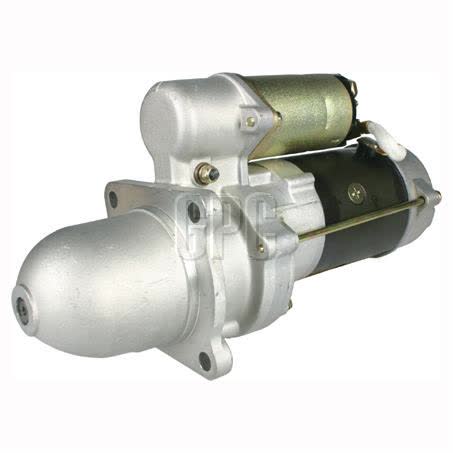

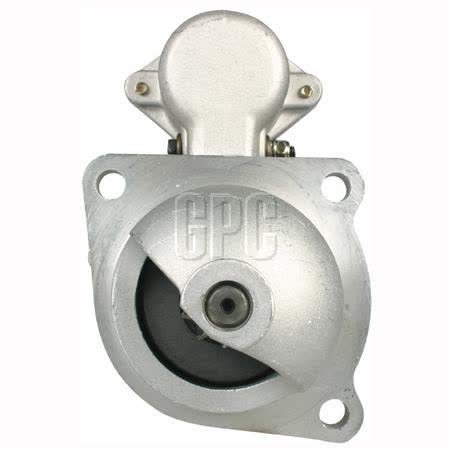

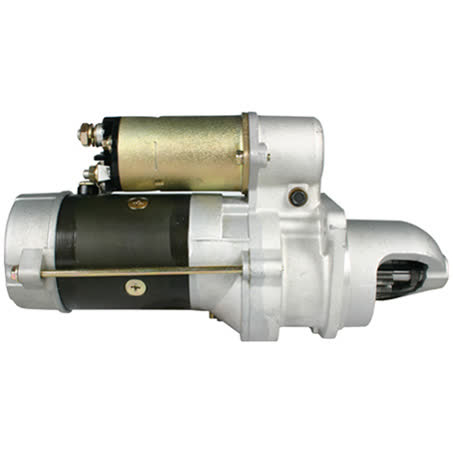

OEX Starter Motor 24V 10 Tooth CW Delco 28MT Style DXS9126

The OEX starter motor listed here is a 24V unit with 10 teeth, clockwise rotation, and a 28MT style design. It is a new starter motor, supplied each, with part number DXS9126 and a one year warranty. The unit is described as suitable for Delco applications and is listed with a 3 hole starter mount type.

Key measured details include a 4.5kW power rating, 127mm mount centres A, 90mm mount centres B and C, an 89mm flange diameter, and an overall length of 335mm. The pinion measures 32mm in diameter and sits 46mm from rest. These dimensions matter when checking physical interchange, especially on equipment where starter clearance and mount pattern need to match exactly.

The only specific application note supplied is to suit a Lincoln welder with a T.C.M engine. There are also broader fitment references in the application data, including Champion 710A, Hyundai Construction 130LC/LCM, Kobelco W170, Samsung SE130LC-2 and SE130LCM-2, and Timberjack 608. Because starter motors must match both the mount pattern and the application, confirm the part number and all listed dimensions before ordering.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• Delco unit make
• 28MT style
• New unit

Specifications

• Part number: DXS9126
• Power rating: 4.5kW
• Voltage: 24V
• Number of teeth: 10
• Rotation: CW
• Series: 28MT
• Mount centres A: 127mm
• Mount centres B: 90mm

Verified application information

• To suit Lincoln welder with T.C.M engine
• Application references supplied include Champion 710A
• Application references supplied include Hyundai Construction 130LC/LCM
• Application references supplied include Kobelco W170
• Application references supplied include Samsung SE130LC-2 and SE130LCM-2
• Application references supplied include Timberjack 608

Application and Buying Notes

When comparing this starter motor, use the part number DXS9126 first, then check the 24V electrical requirement, 10 tooth count, and clockwise rotation. The mount pattern is also important here, with a 3 hole starter mount, 127mm mount centres A, 90mm mount centres B and C, and an 11mm mount hole diameter. Those dimensions are the best guide for avoiding a mismatch.

The starter is listed as a 28MT style Delco unit, with a 4.5kW power rating, 89mm flange diameter, 335mm overall length, and a 32mm pinion diameter. If your existing starter differs in these areas, do not rely on appearance alone. Starter fitment often depends on the combination of mounting, rotation, tooth count and nose/cone dimensions, not just voltage.

The application data includes a Lincoln welder with a T.C.M engine, plus references to Champion 710A, Hyundai Construction 130LC/LCM, Kobelco W170, Samsung SE130LC-2 and SE130LCM-2, and Timberjack 608. Use those only as supporting references alongside the listed measurements and part number. If you are replacing an existing unit, compare the old starter’s tag, mount layout and dimensions before purchase.

This starter is supplied new and carries a one year warranty. It is listed as suitable for wet or dry clutch use, which is useful when matching against the original application, but it should still be checked against the equipment configuration you are working on. On industrial and heavy equipment, the correct starter is the one that matches the application details and the physical specification together.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9126 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 46mm, Power Rating 4.5kW, Series 28MT, Voltage 24.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, Weight 8.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS9126, Brand GENUINE PRODUCTS, Description OEX Starter Motor 24V 10Th CW Delco 28MT Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11.

OEX Starter Motor 24V 10Th CW Delco 28MT Style. Part number DXS9126 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9126, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHAMPION 710A, CHAMPION 710A 1989, HYUNDAI CONSTRUCTION 130LC/LCM, HYUNDAI CONSTRUCTION 130LC/LCM 1996, KOBELCO W170, KOBELCO W170 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching DXS9126, the 24V requirement, 10 tooth CW configuration, 3 hole mount, and all listed dimensions against the existing starter and equipment application before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS9126.

Is this a 12V or 24V starter motor?

It is a 24V starter motor.

What rotation does this starter have?

It is clockwise rotation, listed as CW.

How many teeth are on the pinion?

The starter has 10 teeth.

What application is specifically mentioned for this unit?

The specific application note supplied is to suit a Lincoln welder with a T.C.M engine.

What warranty is listed?

It is listed with a one year warranty.
