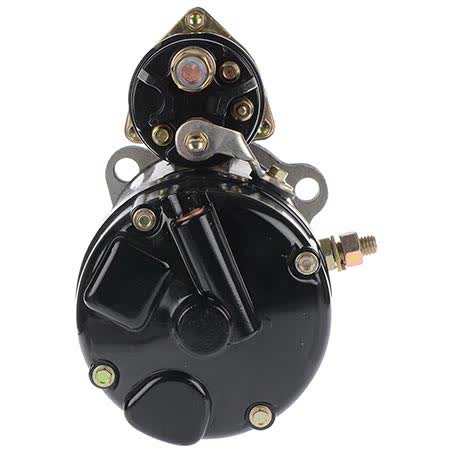

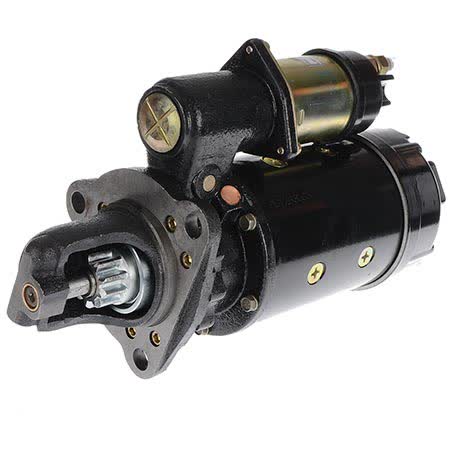

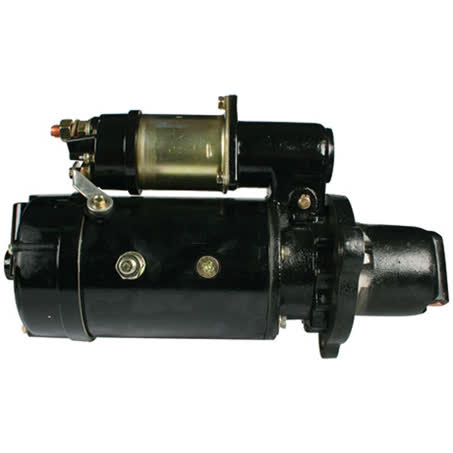

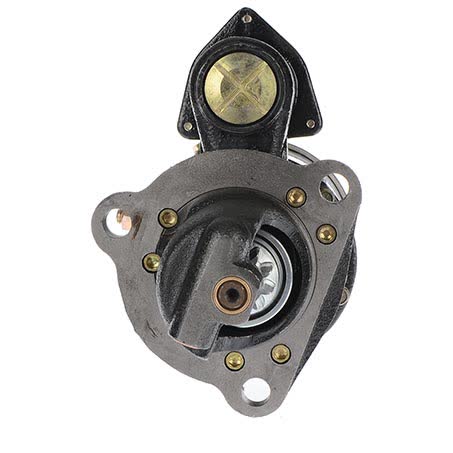

OEX Starter Motor 12V 10 Tooth CW Delco 37MT Style DXS9134

The OEX starter motor DXS9134 is a 12V unit in 37MT style, built with a 10 tooth pinion and clockwise rotation for Delco applications. It is supplied new, with a 3 hole starter mount type, 126mm mount centres across A, B and C, and a 92mm flange diameter.

This starter is rated at 4.5kW and measures 400mm overall length, with a 48mm pinion at rest and a 40mm pinion diameter. The unit weight is 24kg, so it is a substantial starter motor that should be matched carefully to the application before purchase.

OEX identifies this as a starter motor for Delco unit make, with wet or dry clutch suitability noted. The part number is DXS9134, and the listing also carries the description OEX Starter Motor 12V 10Th CW Delco 37MT Style, which is the most useful identifier to compare against the existing part.

The warranty supplied is 3 years for passenger use and 1 year for commercial use. For buyers working from a worn-out original starter, matching the part number, voltage, rotation, tooth count, mount type and dimensions is the safest way to confirm the replacement is the correct physical fit.

Key Features

• 12V starter motor
• 37MT series
• 10 tooth pinion
• Clockwise rotation
• 3 hole starter mount
• New unit

Specifications

• Part No.: DXS9134
• Brand: OEX
• Power rating: 4.5kW
• Voltage: 12
• Rotation: CW
• Number of teeth: 10
• Series: 37MT
• Starter mount type: 3 hole

Verified application guidance

• Suits unit make: Delco
• Fitment data includes applications across Allis Chalmers, Case, Case IH, Iveco and New Holland ranges
• Examples shown in the supplied fitment data include Allis Chalmers 545, Case 970, Iveco Acco and New Holland TR87/TR88
• Do not rely on make alone; confirm the part number and the starter dimensions before ordering

Application and Buying Notes

The most important checks for this starter are the 12V system, 10 tooth pinion, clockwise rotation and the 3 hole mount pattern with 126mm mount centres. Those details need to match the original unit, especially where the starter has been changed previously or the machine is operating in a mixed-parts environment.

The 37MT series reference, Delco unit make and DXS9134 part number are the best identifiers to compare against the old starter, repair record or parts catalogue. The 92mm flange diameter, 400mm overall length, 40mm pinion diameter and 48mm pinion at rest provide extra confirmation when you are checking physical clearance and mounting position.

Because the unit is listed at 4.5kW and weighs 24kg, it is not a small interchangeable starter. It should be matched to the application carefully, and the wet or dry clutch note should also be considered where the vehicle setup or transmission arrangement affects starter selection.

The warranty is 3 years for passenger use and 1 year for commercial use, so the intended application matters. If the starter is for commercial equipment or a machine that sees regular duty, make sure the application is correct before purchase and keep the part number and specification details for reference.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9134 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 4.5kW, Series 37MT, Voltage 12.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, Weight 24kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS9134, Brand OEX, Description OEX Starter Motor 12V 10Th CW Delco 37MT Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 17.

OEX Starter Motor 12V 10Th CW Delco 37MT Style. Part number DXS9134 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9134, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ALLIS CHALMERS 545, ALLIS CHALMERS 545 1971, ALLIS CHALMERS 545 1972, ALLIS CHALMERS 545 1973, CASE 970, CASE 970 1970. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number DXS9134, the Delco application details, 12V rating, 10 tooth count, CW rotation, 3 hole mount pattern and the listed dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS9134.

What voltage is the starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 10 teeth.

What rotation does it use?

The starter is clockwise rotation, shown as CW.

What type of mount does it have?

It uses a 3 hole starter mount, with 126mm mount centres A, B and C.

What vehicles or equipment is it listed against?

The supplied fitment data includes Allis Chalmers, Case, Case IH, Iveco and New Holland applications, including examples such as Allis Chalmers 545, Case 970, Iveco Acco and New Holland TR87/TR88. Fitment should still be confirmed against the part number and dimensions before ordering.
