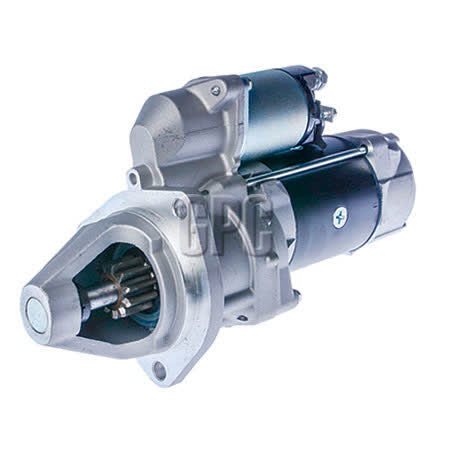

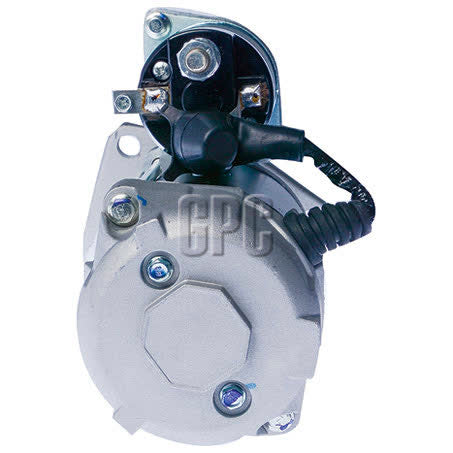

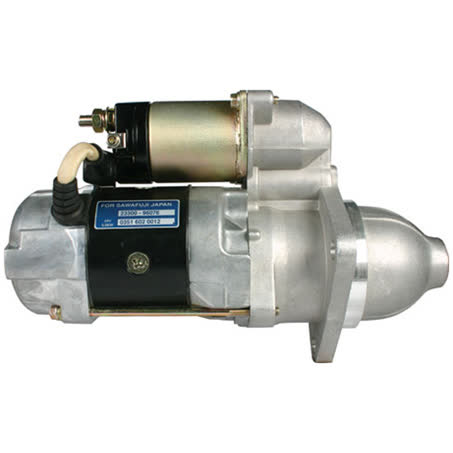

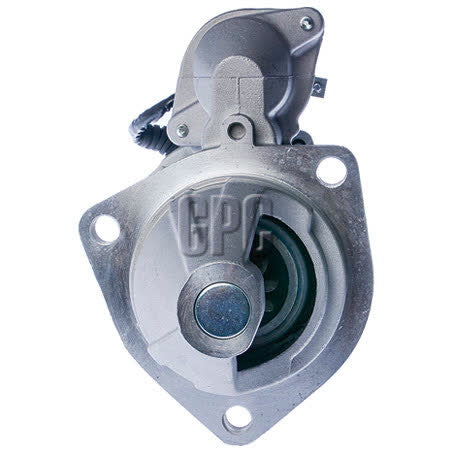

OEX Starter Motor 24V 11 Tooth CW Hitachi Style HXS9403

The OEX starter motor in this listing is a new 24V unit with 11 teeth, clockwise rotation, and a 5.5kW power rating. It is identified by part number HXS9403 and is listed as Hitachi style, with a 3 hole starter mount type.

Key dimensions matter on a starter like this, and the supplied measurements include 131mm mount centres A, 115mm mount centres B, 115mm mount centres C, a 105mm flange diameter, and a 395mm overall length. The pinion diameter is 40mm and the pinion sits 33mm at rest.

This unit is described as suitable for Hitachi applications and is a dry clutch starter motor. It weighs 11.42kg, which is useful when comparing the physical size and construction against the original unit before ordering.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 5.5kW power rating
• New unit
• 3 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 5.5kW
• Starter mount type: 3 hole

Fitment guidance

• Listed fitment references include NISSAN UD, UD Nissan Diesel, TADANO, and TCM applications.
• Sample application data includes NISSAN UD NET6A, TADANO GT-550E, and TCM 870.
• The fitment data also references UD Nissan Diesel C Series across multiple model years, including 1973 through 1983 in the supplied sample.

Application and Buying Notes

Before ordering, match the part number HXS9403 and confirm the starter is the same 24V configuration as your original unit. Voltage, tooth count, rotation, and mount style all need to align, especially where the vehicle has been fitted with a similar-looking Hitachi style starter motor.

The physical dimensions are just as important as the electrical rating. Check the 3 hole mounting pattern, 131mm mount centres A, 115mm mount centres B and C, 105mm flange diameter, 395mm overall length, and 40mm pinion diameter against the removed starter. If any of these differ, the unit may not seat or engage correctly.

The 11 tooth pinion and clockwise rotation are important compatibility checkpoints for starter replacement work. Even where the application list appears close, starter motors can vary between model variants, engine setups, and production changes, so confirm the original unit details rather than relying on vehicle name alone.

This starter is listed as a new unit and is backed by a 3 year passenger and 1 year commercial warranty. The warranty period is useful for peace of mind, but the correct way to avoid a mismatch is still to verify the part number, voltage, rotation, tooth count, and mount measurements before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS9403 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 131mm, Mount Centres C 115mm, Number of Teeth 11, Pinion at Rest 33mm, Power Rating 5.5kW, Suits Unit Make Hitachi, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 11.42kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS9403, Brand OEX, Description OEX Starter Motor 24V 11Th CW Hitachi Style, Flange Diameter 105mm, Mount Centres B 115mm, Mount Hole Diameter 13, Overall Length 395mm.

OEX Starter Motor 24V 11Th CW Hitachi Style. Part number HXS9403 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS9403, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E, TADANO GT-550E 2008, TCM 870, TCM 870 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number HXS9403, the 24V CW specification, and the listed mounting and dimension details before ordering. Vehicle applications should always be checked against the removed starter and the specific application listing.

FAQ

What part number is this starter motor?

The listed part number is HXS9403. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as a new starter motor. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.

What voltage is the unit?

The starter motor is 24V. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.

What rotation does it have?

It is clockwise rotation, shown as CW. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.

What tooth count does the pinion have?

The pinion has 11 teeth. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.

Which applications are mentioned in the fitment data?

The supplied fitment references include NISSAN UD, UD Nissan Diesel, TADANO, and TCM applications, with sample entries such as NISSAN UD NET6A, TADANO GT-550E, and TCM 870. For this listing, part number HXS9403 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN UD NET6A, NISSAN UD NET6A 1988, TADANO GT-550E. These details should still be checked against the original unit before ordering.
