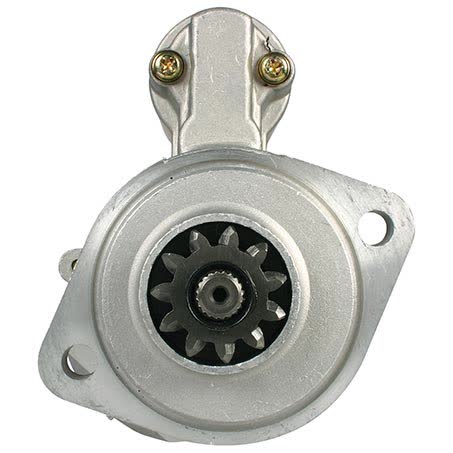

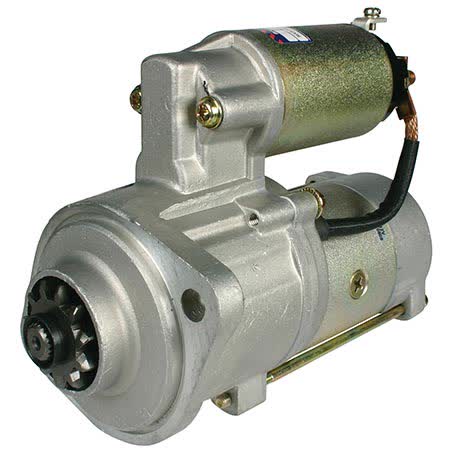

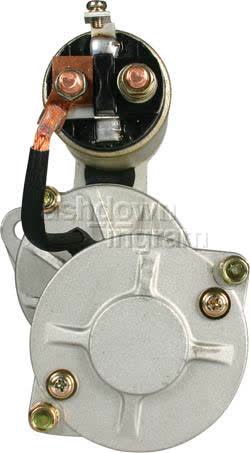

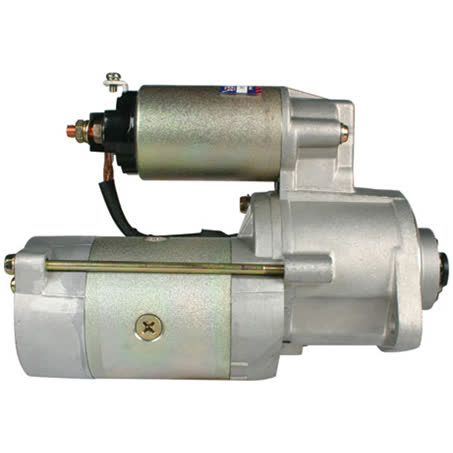

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS266

The OEX Starter Motor MXS266 is a 12V, clockwise rotation starter motor with an 11 tooth pinion and a 2kW power rating. It is listed as a new unit, with a dry clutch application, and it suits Mitsubishi units where the mounting and drive details match the part.

Key dimensions include 105mm mount centres, an 82mm flange diameter, 11mm mount hole diameter, an overall length of 250mm, and a 41mm pinion diameter. Pinion at rest is 22mm, which is a useful check when comparing against the original starter.

This starter motor is a 2 hole mount design and weighs 6.066kg. It is described as Mitsubishi style, so matching the application by part number, rotation, tooth count, and mounting dimensions is important before ordering.

OEX states the product is sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a 3 year passenger and 1 year commercial warranty.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 2kW power rating
• 2 hole starter mount
• New unit, not remanufactured

Specifications

• Brand: OEX
• Part No.: MXS266
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2kW
• Starter mount type: 2 hole

Fitment guidance

• Komatsu FD20/23/25/28/30/30D
• Mitsubishi industrial forklifts
• Mitsubishi industrial S4E
• Toro Reelmaster

Application and Buying Notes

Before ordering, compare the part number MXS266, the 12V electrical system, the clockwise rotation, and the 11 tooth pinion against the original starter on the machine. Those details matter just as much as the overall 250mm length and the 105mm mount centres, because starters that look similar can still differ in drive or mounting layout.

The mounting pattern is a 2 hole design with 11mm mount holes and an 82mm flange diameter. If the replacement unit does not match those measurements, the starter may not sit correctly or align with the bellhousing as intended.

The 2kW power rating and 41mm pinion diameter are practical identifiers when checking against a removed unit. The pinion at rest measurement of 22mm is another useful comparison point, especially where the original starter is unavailable and the application needs to be confirmed from the machine or the old part.

This starter is listed for Mitsubishi style applications and fitment references include Komatsu FD20/23/25/28/30/30D, Mitsubishi industrial forklifts, Mitsubishi industrial S4E, and Toro Reelmaster. Even where those applications appear in the listing, it is still best practice to verify the exact machine details and compare the starter measurements before purchase.

The unit is new and intended for a dry clutch application. If the original starter shows signs of previous modification, remanufacture, or non-standard repair, measure carefully and compare the physical layout rather than relying on appearance alone. The 6.066kg weight can also help confirm you are comparing like for like.

Warranty is listed as 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checking, so confirm the part number MXS266 and the mounting and drive dimensions first, then match the warranty category to how the vehicle or equipment is used.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS266 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 11, Pinion at Rest 22mm, Power Rating 2kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 6.066kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS266, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 11, Overall Length 250mm, Pinion Diameter 41mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS266 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS266, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KOMATSU FD20/23/25/28/30/30D, KOMATSU FD20/23/25/28/30/30D 1981, KOMATSU FD20/23/25/28/30/30D 1982, KOMATSU FD20/23/25/28/30/30D 1983, MITSUBISHI INDUSTRIAL FORKLIFTS, MITSUBISHI INDUSTRIAL FORKLIFTS 1981. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number MXS266, 12V, CW rotation, 11 tooth drive, 2 hole mounting, and the listed measurements against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS266.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What vehicles or equipment are mentioned for fitment?

The listed fitment references include Komatsu FD20/23/25/28/30/30D, Mitsubishi industrial forklifts, Mitsubishi industrial S4E, and Toro Reelmaster. Final confirmation should still be made against the part number and measurements.
