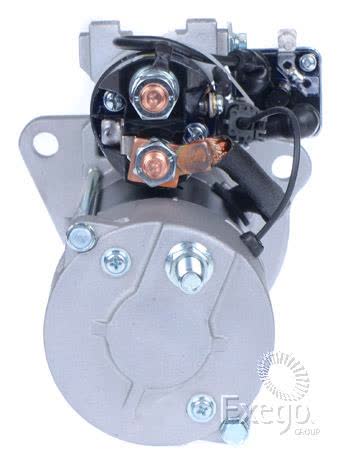

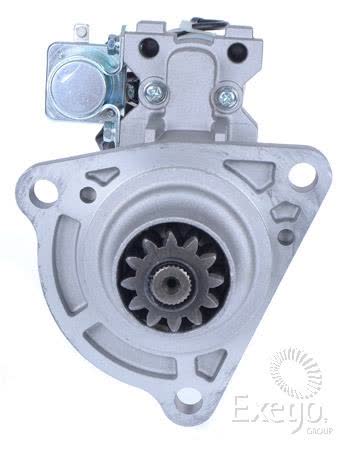

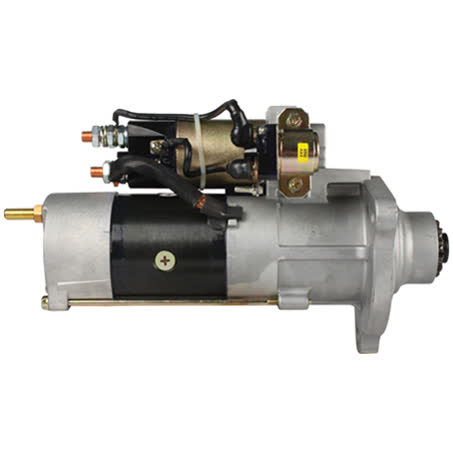

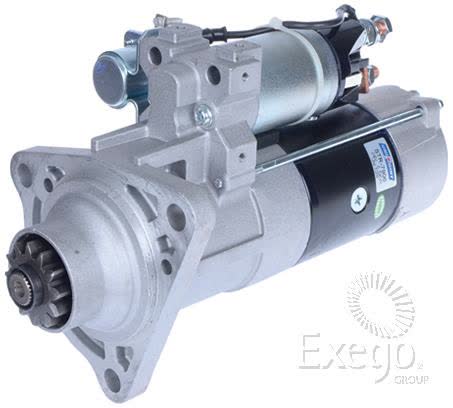

OEX Starter Motor 24V 12T CW Mitsubishi Style MXS9607

The OEX Starter Motor MXS9607 is a 24V, 12-tooth, clockwise-rotation starter motor in Mitsubishi style. It is listed as a new unit with a 5.5kW power rating, a 3 hole starter mount type, and a dry clutch setup.

Key dimensions that matter for checking replacement match-up include 126mm mount centres A, 126mm mount centres B, 126mm mount centres C, a 92mm flange diameter, 13.5mm mount hole diameter, and an overall length of 350mm. The pinion measures 47mm in diameter and sits 48mm from rest.

This starter is supplied under OEX part number MXS9607 and is covered by a 3yr passenger / 1yr commercial warranty. OEX states the product is sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories.

Key Features

• 24V starter motor
• 12-tooth pinion
• Clockwise rotation
• Mitsubishi style unit
• 5.5kW power rating
• New unit, not remanufactured

Specifications

• Voltage: 24V
• Power rating: 5.5kW
• Number of teeth: 12
• Rotation: CW
• Part number: MXS9607
• Brand: OEX
• Starter mount type: 3 hole
• Mount centres A: 126mm

Confirmed application guidance

• Suits unit make: Mitsubishi
• Listed fitment includes Scania, Volvo, Terex O&K and Bruks applications
• Fitment examples shown include Scania 3 Series, Scania 4 Series, Scania T Series, Terex O&K TA400, Volvo A, Volvo B12 and Volvo D12C
• Sample application years shown include Scania 3 Series 1988 to 1996, Scania 4 Series 1996, T Series 2003 to 2014, Terex O&K TA400 2011, Volvo A 2000, Volvo B12 2006 and Volvo D12C 1988 to 1994
• Additional listed application groups include Scania Higer, Scania K Series, Scania K Series Bus, Volvo FH12, Volvo FL12, Volvo FM, Volvo FM12, Volvo NH12, Volvo TD71 and Volvo TD73

Application and Buying Notes

When replacing a starter motor, the safest checks are the part number MXS9607, the 24V electrical system, the 12-tooth pinion, and the clockwise rotation. The physical pattern also needs to match, especially the 3 hole starter mount, 126mm mount centres, 92mm flange diameter, and 13.5mm mount hole diameter.

The listed 5.5kW rating is a useful comparison point when matching to the original unit. A starter with the wrong voltage, tooth count, rotation, or mounting dimensions can look similar yet still be incompatible, so the measurements here should be checked against the vehicle or the removed starter before ordering.

This unit is described as Mitsubishi style and suits unit make Mitsubishi, but the application list also includes Scania, Volvo, Terex O&K and Bruks references. Use the part number and the dimensional details together, not a single descriptor on its own, because starter motors are commonly shared across multiple heavy vehicle and equipment applications.

The unit is new and weighs 9.3kg, which may be useful when handling or comparing replacement units. If the existing starter is still fitted, checking the pinion diameter of 47mm and pinion at rest of 48mm can help confirm whether the replacement has the same basic layout before installation is attempted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS9607 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion at Rest 48mm, Power Rating 5.5kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS9607, Brand OEX, Description OEX Starter Motor 24V 12Th CW Mitsubishi Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13.5, Overall Length 350mm.

OEX Starter Motor 24V 12Th CW Mitsubishi Style. Part number MXS9607 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS9607, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BRUKS 806.2, BRUKS 806.2 2014, S - SERIES 2016, S - SERIES 2017, SCANIA 3 - SERIES, SCANIA 3 - SERIES 1988. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment with part number MXS9607 and compare the 24V, 12T, CW, 3 hole mounting, 126mm mount centres, 92mm flange diameter, 13.5mm hole size, and 350mm overall length against the original starter before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS9607.

What voltage is this starter motor?

It is a 24V starter motor.

How many teeth does the pinion have?

The starter has a 12-tooth pinion.

What direction does this starter rotate?

It is clockwise rotation, shown as CW.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What should I check before ordering?

Check the part number MXS9607, the 24V rating, 12 teeth, CW rotation, 3 hole mount type, 126mm mount centres, 92mm flange diameter, 13.5mm mount hole diameter, and 350mm overall length against the original unit.
