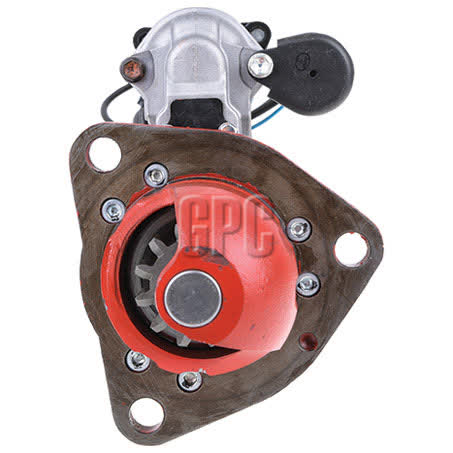

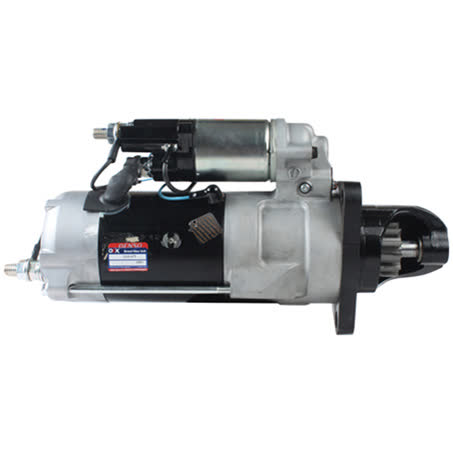

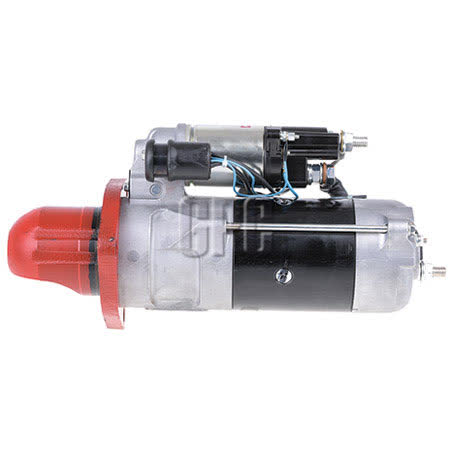

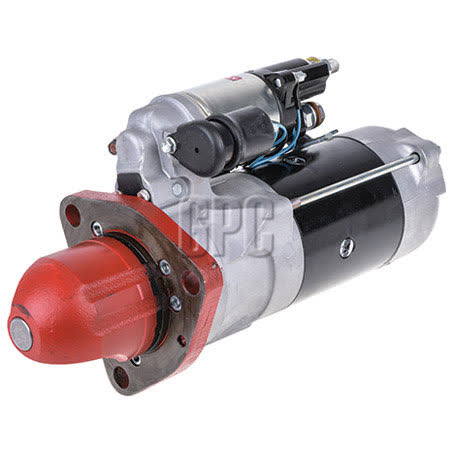

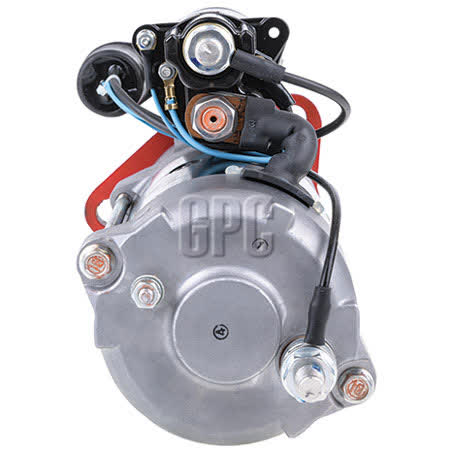

OEX Starter Motor 24V 12 Tooth CW Denso Style DXS1470

The OEX starter motor DXS1470 is a 24V unit with 12 teeth and clockwise rotation, built in a Denso style for applications that call for that mounting and pinion configuration. It is a new starter motor, rated at 8kW, with a 3 hole starter mount and 126mm mount centres across A, B and C.

Key dimensions on this unit include a 92mm flange diameter, 16mm mount hole diameter and a 56mm pinion diameter. The pinion at rest measures 48mm, and the starter weighs 19.48kg, so it is a substantial rotating electrical component intended for heavy-duty use where the correct physical fit is critical.

This starter is listed as suitable for Denso units and is noted as a replacement for an 11th 56mm 50MT starter in Cummins applications. That makes the part number, mounting pattern and pinion details especially important when checking replacement suitability, rather than relying on voltage alone.

OEX backs the product with a 3 year passenger / 1 year commercial warranty. The brand is sourced from market leading original equipment manufacturers and aftermarket suppliers, and the product is sourced from ISO certified factories.

Key Features

• 24V starter motor
• 12 tooth pinion
• Clockwise rotation
• 8kW power rating
• 3 hole starter mount
• Denso style unit

Specifications

• Part No.: DXS1470
• Brand: OEX
• Type: Starter Motor
• Voltage: 24V
• Number of Teeth: 12
• Rotation: CW
• Power Rating: 8kW
• Starter Mount Type: 3 hole

Compatible Applications Provided

• CASE 40D
• CASE 40DR
• CASE 40R
• CASE 980
• CATERPILLAR 12H
• CATERPILLAR 14H
• CATERPILLAR 14M
• CATERPILLAR 160M

Application and Buying Notes

When matching a starter motor, the first checks should be the part number DXS1470, the 24V electrical system, the 12 tooth pinion and the clockwise rotation. Those items need to line up with the machine or engine application before you go any further, because a starter can look close but still be wrong if the tooth count, rotation or mounting pattern differs.

The mounting side is equally important on this unit. It uses a 3 hole starter mount with 126mm mount centres at A, B and C, plus a 92mm flange diameter and 16mm mount hole diameter. If the existing starter does not match those measurements, the unit may not seat correctly, even if the voltage and brand family appear similar.

The pinion diameter is 56mm and the pinion at rest measures 48mm, and the note states it will replace an 11th 56mm 50MT in Cummins applications. That replacement note is useful, but it should be treated as a cross-reference only and checked against the exact application details on the machine, engine or old starter before purchase.

This starter is listed for Denso style units and is suitable for wet or dry clutch applications. That helps narrow the search, but the safest approach is still to compare the old starter, mounting face, tooth count and rotation side by side, especially on heavy equipment where small differences can affect fit and engagement.

Because the unit weighs 19.48kg and is rated at 8kW, it is not a light-duty starter. Make sure the existing wiring, battery supply and physical access are appropriate for a 24V starter of this size, and confirm the installation space before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS1470 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion Diameter 56mm, Rotation CW, Voltage 24, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 19.48kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS1470, Brand OEX, Description OEX Starter Motor 24V 12Th CW Denso Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Pinion at Rest 48mm.

OEX Starter Motor 24V 12Th CW Denso Style. Part number DXS1470 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS1470, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 40D, CASE 40DR, CASE 40R, CASE 980, CATERPILLAR 12H, CATERPILLAR 14H. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the part number DXS1470, the 24V 12 tooth clockwise Denso style specification, and the listed mounting and pinion measurements before purchase. Application lists and replacement notes should be checked against the actual machine or the original starter unit.

FAQ

What is the part number for this starter motor?

The part number is DXS1470.

What voltage and tooth count does it use?

It is a 24V starter motor with 12 teeth.

Is the rotation clockwise or counter-clockwise?

The rotation is clockwise, listed as CW.

What mounting pattern does it have?

It uses a 3 hole starter mount with 126mm mount centres at A, B and C.

Is this a new or remanufactured unit?

It is listed as new.

What warranty is provided?

The warranty is 3 years for passenger use and 1 year for commercial use.
