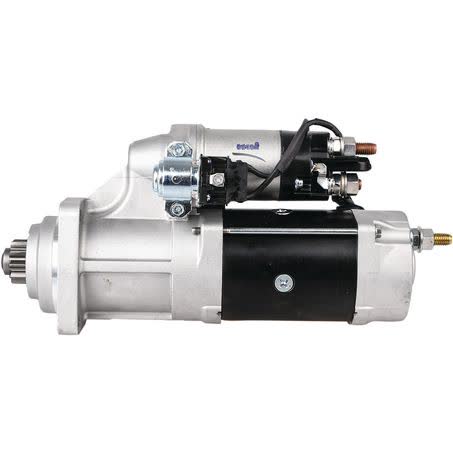

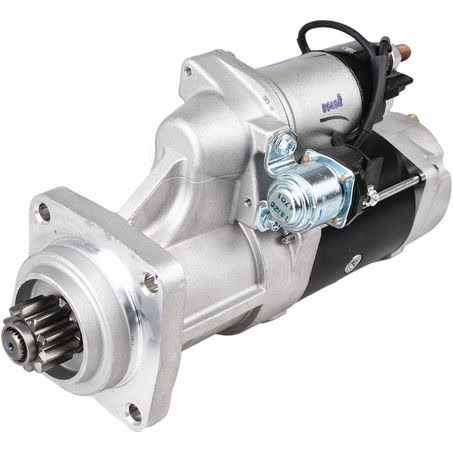

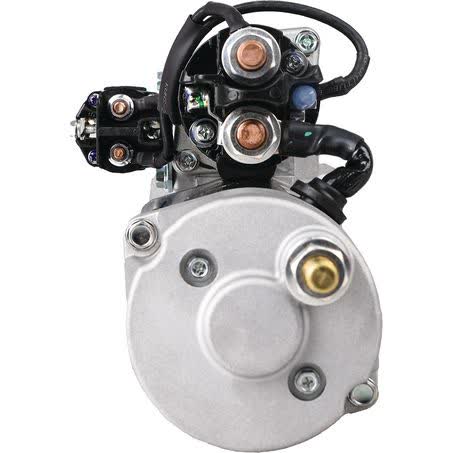

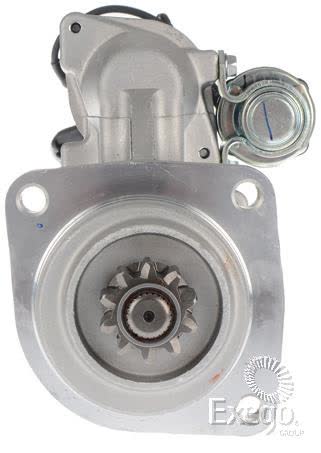

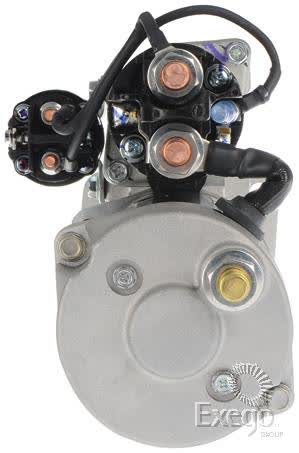

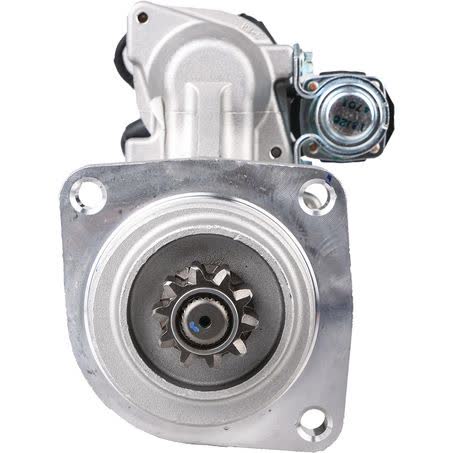

Delco Remy Starter Motor 12V 10 Tooth CW 38MT Part No. 8200077

This Delco Remy starter motor is a 12V, clockwise rotation unit with 10 teeth and a 38MT note, supplied new and sold each. It carries part number 8200077 and is listed with a 4.6kW power rating, making it important to match the electrical and physical details before ordering.

The unit is specified with a 3-hole starter mount type, flange diameter of 89mm, mount centres of 127mm for A and 90mm for B and C, plus 10mm mount hole diameter. Those dimensions matter when checking against the existing starter position and mounting pattern on the vehicle or machine.

Other key identifiers include an overall length of 399mm, pinion diameter of 40mm, pinion at rest of 48mm, and a weight of 13.64kg. It is a Delco-suited starter motor with reduction gear and an oil sealed drive shaft, and it is listed for wet or dry clutch use.

A one-year warranty is specified. As with any starter replacement, confirm the part number, rotation, tooth count, mounting arrangement and overall dimensions against the removed unit or application details before fitting.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 38MT note
• Reduction gear
• Oil sealed drive shaft

Specifications

• Part number: 8200077
• Brand: Delco Remy
• Voltage: 12V
• Power rating: 4.6kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 3-hole
• Flange diameter: 89mm

Verified fitment applications

• BCI Citirider
• BCI Fleetmaster
• Blaw Knox PF2181
• Case 580E
• Cummins ISB 6.7
• Cummins QSB 6.7
• Cummins QSC 8.3
• Dynapac CA602D

Application and Buying Notes

Before buying, match the removed starter against the listed identifiers: part number 8200077, 12V voltage, 10-tooth pinion, clockwise rotation and 38MT note. These are the most reliable starting points when confirming the correct replacement, especially where similar-looking starters may differ in rotation or tooth count.

The mounting details are just as important as the electrical rating. Check the 3-hole mount type, 89mm flange diameter, 127mm mount centres A, 90mm mount centres B and C, and 10mm mount hole diameter. If any of these measurements differ from your existing unit, do not assume the starter will bolt straight in.

The 4.6kW power rating, 399mm overall length and 13.64kg weight give a practical indication of the unit’s size and duty level, but they do not replace fitment confirmation. Use the vehicle or machine application details, then compare the starter on the machine with the listed dimensions before purchase.

The application list includes a range of BCI, Blaw Knox, Case, Cummins, Dynapac, Kalmar, Optare, Ottawa, Terberg-Benschop and Volvo Construction entries, along with Western Star 2800. If your vehicle is one of these applications, check the exact model designation and year where shown, then confirm the starter’s dimensions and part number before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8200077 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 4.6kW, Suits Unit Make Delco, Note 38MT.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. 8200077, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 10Th CW 38MT, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 10.

Delco Remy Starter Motor 12V 10Th CW 38MT. Part number 8200077 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8200077, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012, BCI CITIRIDER 2013, BLAW KNOX PF2181, BLAW KNOX PF2181 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number 8200077, the 12V 10 tooth clockwise specification, and the mounting and dimension details against the removed starter or the vehicle application listing before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is 8200077. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter?

It is listed as a 12V starter motor. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

The rotation is listed as clockwise, or CW. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.

Is this unit new or remanufactured?

It is listed as new. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Check the part number, 12V rating, 10 tooth count, CW rotation, 3-hole mount type, and the listed dimensions including 89mm flange diameter, 127mm mount centres A, 90mm mount centres B and C, and 399mm overall length. For this listing, part number 8200077 is the main reference point. Listed voltage is 12. Published fitment references include BCI CITIRIDER, BCI CITIRIDER 2011, BCI CITIRIDER 2012. These details should still be checked against the original unit before ordering.
