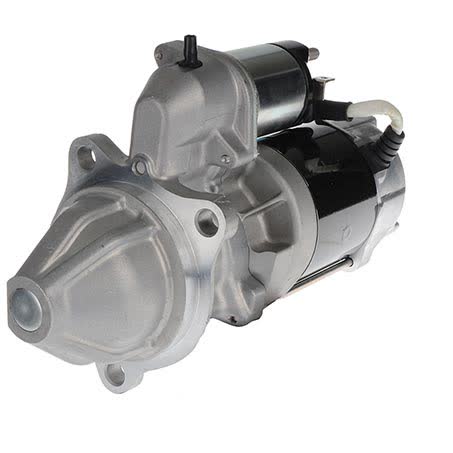

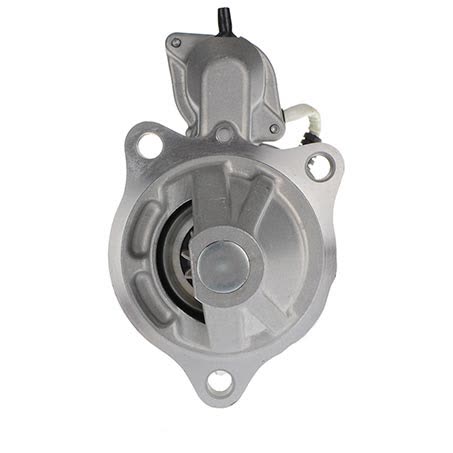

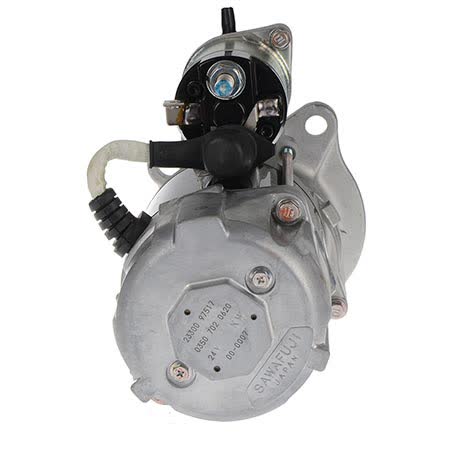

OEX Starter Motor 24V 11 Tooth CW Sawafuji Style SXS9809

The OEX starter motor listed here is a 24V unit with 11 teeth, clockwise rotation, and a 7kW power rating. It is a new starter motor, supplied as an each item, and is identified by part number SXS9809.

This unit is described as Sawafuji style and suits Sawafuji applications. Key physical details include a 121mm flange diameter, 150mm and 146mm mount centres, a 102mm secondary mount centre, and a 3 hole starter mount type.

It carries an OEM number of 0350-702-0620 and has a pinion diameter of 47mm with the pinion at rest at 40mm. The listed weight is 14.44kg, so it is a substantial starter and should be matched carefully to the existing unit and application.

The only listed feature is that it is an OE product sourced from an ISO standards approved company. Warranty is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 7kW power rating
• New unit
• Sawafuji style

Specifications

• Brand: OEX
• Part No.: SXS9809
• OEM Number: 0350-702-0620
• Type: Starter Motor
• Voltage: 24V
• Number of Teeth: 11
• Rotation: CW
• Power Rating: 7kW

Supported Applications

• Nissan Industrial Crane applications
• Nissan UD RD8 applications
• Nissan UD RF8 applications
• UD Nissan Diesel C Series applications
• UD Nissan Diesel Condor applications
• UD Nissan Diesel R Series applications
• UD Nissan Diesel T Series applications

Application and Buying Notes

Before ordering, compare the part number SXS9809 and OEM number 0350-702-0620 against the starter on the vehicle or machine. The 24V electrical system, 11 tooth pinion, and clockwise rotation all need to match the existing setup for the starter to suit correctly.

Measure the mounting points on the old unit and check them against the listed dimensions: 150mm mount centres A, 146mm mount centres B, 102mm mount centres C, and a 121mm flange diameter. The mount hole diameter is 13mm and the starter uses a 3 hole mount type, so the bolt pattern matters as much as the electrical rating.

The pinion diameter of 47mm and pinion at rest of 40mm are useful checks when comparing a replacement starter to the removed unit. Because this starter is listed as 14.44kg and 7kW, it is not the sort of part to guess on; confirm the physical layout, drive engagement, and housing shape before purchase.

This unit is listed for Sawafuji applications and appears against several Nissan Industrial and UD Nissan Diesel groups, including crane and C, R, and T series references. That said, the safest approach is still to match the starter by part number, OEM number, and the measured dimensions on the machine.

The warranty is listed as 3 years passenger and 1 year commercial. If the starter is being used in a commercial setting, check the warranty term that applies to your use case before fitting and keep the removed part and packaging until the replacement has been confirmed on the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXS9809 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 150mm, Mount Centres C 102mm, Number of Teeth 11, Pinion Diameter 47mm, Rotation CW, Voltage 24, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Weight 14.44kg, Product Group 1 ROTATING ELECTRICAL, Part No. SXS9809, Brand OEX, Description OEX Starter Motor 24V 11Th CW Sawafuji Style, Flange Diameter 121mm, Mount Centres B 146mm, Mount Hole Diameter 13, Pinion at Rest 40mm.

OEX Starter Motor 24V 11Th CW Sawafuji Style. Part number SXS9809 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SXS9809, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching SXS9809, OEM number 0350-702-0620, Sawafuji application details, 24V rating, 11 tooth CW configuration, and the stated mounting dimensions against the removed starter and vehicle application before purchase.

FAQ

Is this a 24V starter motor?

Yes. The listed voltage is 24V. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 11 teeth. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as clockwise rotation, shown as CW. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.

What part number should I use when checking compatibility?

The listed part number is SXS9809. The OEM number is 0350-702-0620. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.

What mounting details are provided?

The starter is listed with a 3 hole mount type, mount centres A 150mm, B 146mm, C 102mm, a 121mm flange diameter, and a 13mm mount hole diameter. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.

What warranty is listed?

Warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number SXS9809 is the main reference point. Listed voltage is 24. Published fitment references include NISSAN INDUSTRIAL CRANE, NISSAN INDUSTRIAL CRANE 1980, NISSAN INDUSTRIAL CRANE 1986. These details should still be checked against the original unit before ordering.
