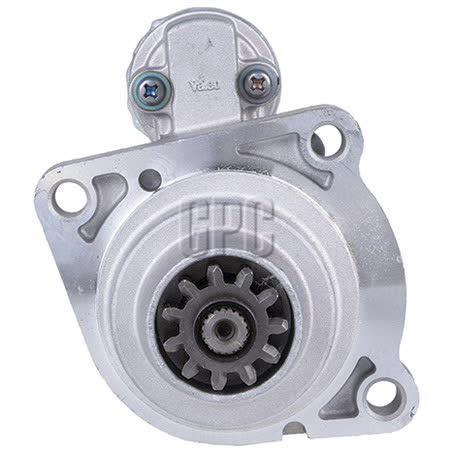

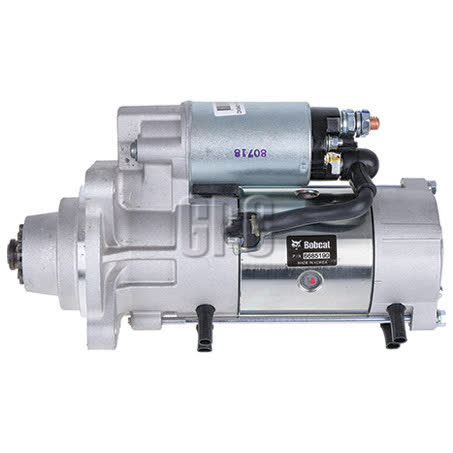

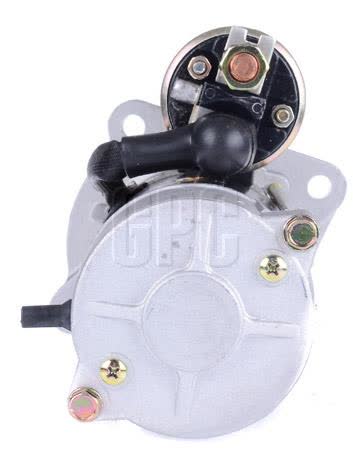

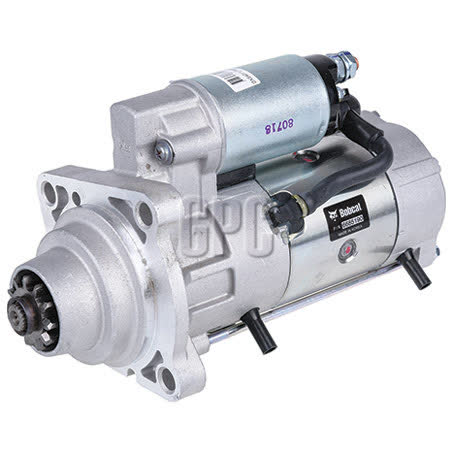

OEX Starter Motor 12V 11 Tooth CW Denso Style DXS4011

The OEX Starter Motor DXS4011 is a new 12V starter motor in Denso style, built with a 3 hole starter mount and clockwise rotation. It is specified with 11 teeth, a 2.7kW power rating, and an overall length of 288mm, so it is important to compare the mounting and drive dimensions against the unit being replaced before ordering.

Key dimensions include 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, an 89mm flange diameter, and 12mm mount hole diameter. The pinion diameter is 40mm and the pinion at rest is 48mm, which are useful checks when matching the starter to the existing application.

This OEX starter motor is supplied as a new rotating electrical component and carries a 3 year passenger / 1 year commercial warranty. It is listed as suitable for Denso unit make, so the practical fit check is to confirm the part number DXS4011 and the measured details of the original starter rather than relying on appearance alone.

Key Features

• New 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style
• 3 hole starter mount
• 2.7kW power rating

Specifications

• Part number: DXS4011
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2.7kW
• Starter mount type: 3 hole
• Overall length: 288mm
• Flange diameter: 89mm

Known application references

• ASV VT-70
• ASV VT-70 2012
• BOBCAT 3022
• BOBCAT 643
• BOBCAT 743
• BOBCAT 751F
• BOBCAT 753
• BOBCAT 753/H/L

Application and Buying Notes

Before ordering, check the original starter against the listed dimensions: 12V, 11 teeth, clockwise rotation, 3 hole mount, 127mm / 90mm / 90mm mount centres, 89mm flange diameter, and 288mm overall length. Those measurements are the most reliable way to confirm the replacement matches the existing unit physically.

The part number DXS4011 is the clearest identifier to cross-check, especially where the machine model may have more than one starter configuration. Even within the listed application groups, the correct match should still be verified against the machine’s original starter and mounting pattern.

This unit is specified as Denso style and suited to Denso unit make, so compatibility depends on matching the starter style as well as the electrical and mounting details. The 2.7kW rating and 40mm pinion diameter are useful reference points when comparing performance and drive engagement to the old part.

Weight is listed at 7.257kg, which can help with handling and freight expectations, but it should not be used as the only fitment check. For starter motors, the important items are the mounting layout, pinion details, rotation direction, voltage, and the exact part number.

The warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail is useful, but it does not replace fitment verification, particularly on equipment where the same model range may have been fitted with different starting systems.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4011 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 2.7kW, Suits Unit Make Denso, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 7.257kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS4011, Brand OEX, Description OEX Starter Motor 12V 11Th CW Denso Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 12, Overall Length 288mm.

OEX Starter Motor 12V 11Th CW Denso Style. Part number DXS4011 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4011, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the part number DXS4011, 12V specification, 11 tooth clockwise configuration, 3 hole mount, and all measured dimensions against the original starter and machine application before ordering.

FAQ

What type of part is this?

It is a new OEX starter motor, specified as 12V with 11 teeth, clockwise rotation, and a Denso style fitment. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is DXS4011. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.

What voltage does it use?

It is a 12V starter motor. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed mounting details are 3 hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, 89mm flange diameter, and 12mm mount hole diameter. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter?

It is listed as new. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS4011 is the main reference point. Listed voltage is 12. Published fitment references include ASV VT-70, ASV VT-70 2012, BOBCAT 3022. These details should still be checked against the original unit before ordering.
