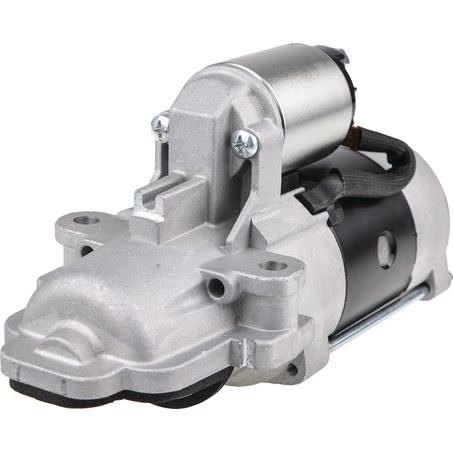

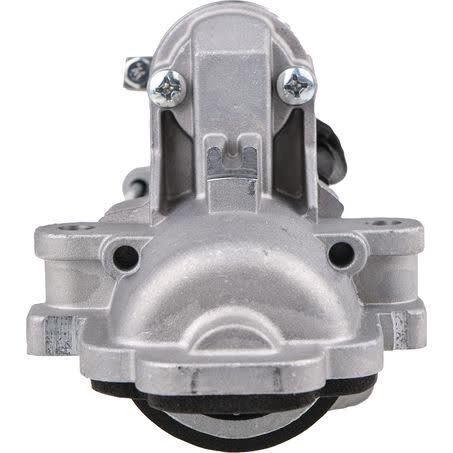

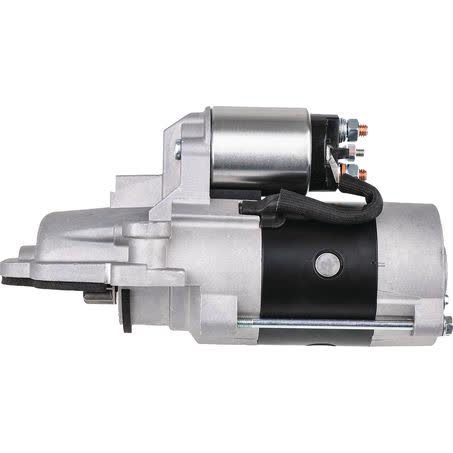

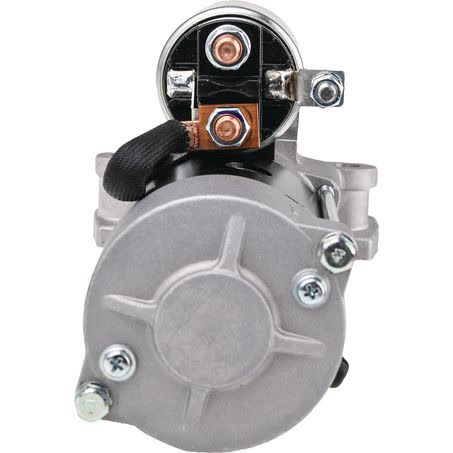

OEX Starter Motor 12V 12T CW Mitsubishi Style MXS2001

The OEX starter motor MXS2001 is a new 12V unit with clockwise rotation, 12 teeth, and a 2.5kW power rating. It is described as Mitsubishi style and suits Mitsubishi applications, with a 2-hole starter mount type and a dry clutch setup.

Key dimensions on this starter motor include 89mm mount centres, a 66mm nose cone length, an 82mm flange diameter, and a 245mm overall length. The pinion diameter is 39mm, the pinion at rest is 43mm, and the unit weighs 4.48kg.

This is a rotating electrical part supplied by OEX as a starter motor, and the listing note specifically says mount measurements must be checked against the image before purchase. It is also marked as not interchangeable with MXS2002 or AXS979, so part number matching matters on this item.

Key Features

• 12V starter motor
• 12-tooth pinion
• Clockwise rotation
• New unit
• 2-hole starter mount
• Mitsubishi style application

Specifications

• Part number: MXS2001
• Brand: OEX
• Type: Starter motor
• Power rating: 2.5kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Mount centres A: 89mm

Fitment guidance

• Suits Mitsubishi applications.
• The fitment information provided also references Ford Everest, Ford Ranger, and Mazda BT-50 application families.
• Sample application years shown include Ford Everest 2015 to 2022, Ford Ranger 2011 and 2012, and Mazda BT-50 2011 to 2020.
• Confirm the starter mount measurements, overall length, and pinion dimensions against the original unit before ordering.

Application and Buying Notes

This starter motor is a 12V, clockwise-rotating unit with 12 teeth and a 2.5kW power rating, so the electrical specification and physical dimensions need to match the vehicle application closely. The listed mount centres are 89mm, the nose cone length is 66mm, and the overall length is 245mm, which makes direct measurement an important check before purchase.

The note to check mount measurements is not optional on this part. It has a 2-hole starter mount, a 10mm mount hole diameter, an 82mm flange diameter, and a 39mm pinion diameter, and those dimensions should be compared with the removed starter or the vehicle’s required fitment details.

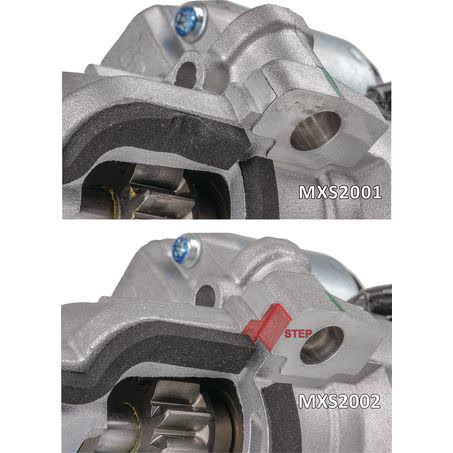

Part number verification is also important here because this unit is specifically marked as not interchangeable with MXS2002 or AXS979. If your existing unit, catalogue reference, or workshop record does not match MXS2001, treat the application carefully and confirm the exact starter style before fitting.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That warranty detail is useful, but it does not replace fitment checking, especially where the vehicle application depends on the correct mount pattern, rotation, tooth count, and pinion position.

For buyers comparing options, this is a new OEX starter motor rather than a remanufactured unit. It is supplied as each and weighs 4.48kg, so handling and installation should be planned with the physical size and weight in mind, especially where access around the starter area is limited.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2001 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 89mm, Nose Cone Length 66mm, Overall Length 245mm, Pinion Diameter 39mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2001, Brand OEX, Description OEX Starter Motor 12V 12Th CW Mitsubishi Style - See Note, Flange Diameter 82mm, Mount Hole Diameter 10, Number of Teeth 12, Pinion at Rest 43mm.

OEX Starter Motor 12V 12Th CW Mitsubishi Style - See Note. Part number MXS2001 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2001, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching the part number MXS2001 and checking the mount measurements, pinion dimensions, rotation, voltage, and application details against the vehicle before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2001. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 12 teeth. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed mount centres are 89mm, the mount hole diameter is 10mm, the flange diameter is 82mm, and the starter mount type is 2 hole. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check the part number MXS2001, the mount measurements, rotation, voltage, and the pinion dimensions against the original starter and the vehicle application details. For this listing, part number MXS2001 is the main reference point. Listed voltage is 12. Published fitment references include FORD EVEREST, FORD EVEREST 2015, FORD EVEREST 2016. These details should still be checked against the original unit before ordering.
