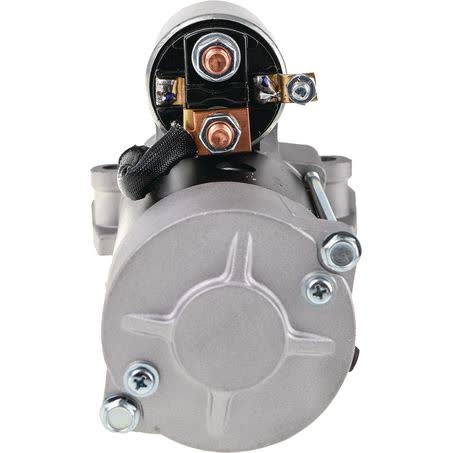

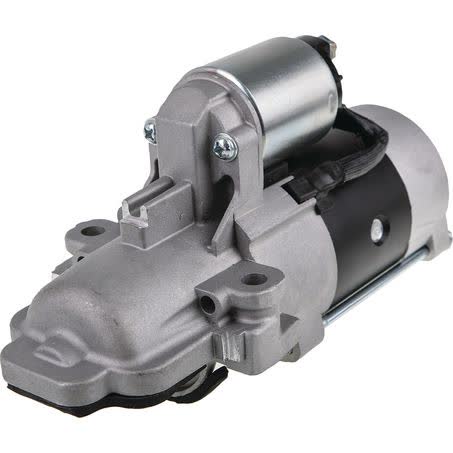

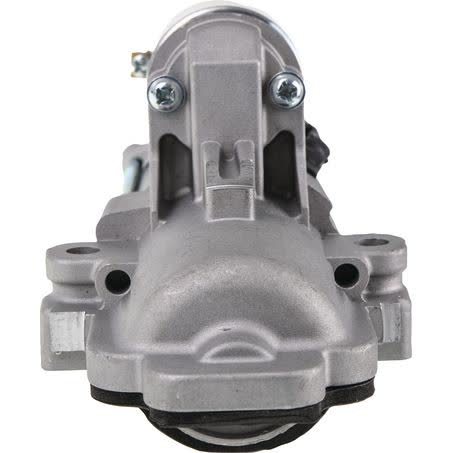

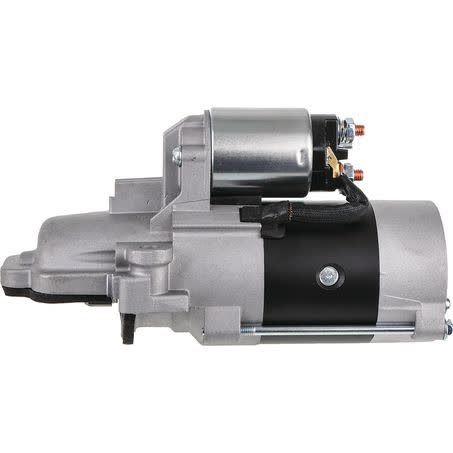

OEX Starter Motor 12V 12 Tooth CW Mitsubishi Style MXS2002

The OEX starter motor MXS2002 is a new 12V unit with 12 teeth and clockwise rotation, built in a Mitsubishi style configuration. It is listed with a 2.5kW power rating, a 2-hole starter mount, and a dry clutch setup, so the physical fit and application details need to be checked carefully before purchase.

Key dimensions include 89mm mount centres, a 67mm nose cone length, an overall length of 249mm, a 82mm flange diameter, and a 39mm pinion diameter. The mount hole diameter is 10mm, and the pinion at rest measurement is 43mm, which makes these dimensions important reference points when comparing the unit against the original starter.

This starter motor is identified for Mitsubishi applications, with fitment data also listing Ford Ranger and Mazda BT-50 applications across multiple model years. Because the listing notes that mount measurements must be checked and the unit is not interchangeable with MXS2001 or AXS979, matching the part number and the physical dimensions is the safest way to confirm suitability.

Key Features

• New starter motor
• 12V electrical system
• 12 tooth pinion
• Clockwise rotation
• 2-hole starter mount
• Mitsubishi style

Specifications

• Part number: MXS2002
• Brand: OEX
• Product type: Starter motor
• Power rating: 2.5kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Starter mount type: 2 hole

Fitment information

• Mitsubishi applications are listed in the product data
• Ford Ranger applications are listed for multiple model years
• Mazda BT-50 applications are listed for multiple model years
• Fitment should still be confirmed against the part number and mount measurements

Application and Buying Notes

Before ordering, compare the part number MXS2002 with the starter on the vehicle and check the physical measurements closely. The listing specifically calls out 89mm mount centres, a 67mm nose cone length, 249mm overall length, 82mm flange diameter, 10mm mount hole diameter, and 39mm pinion diameter, so these details should line up with the original unit.

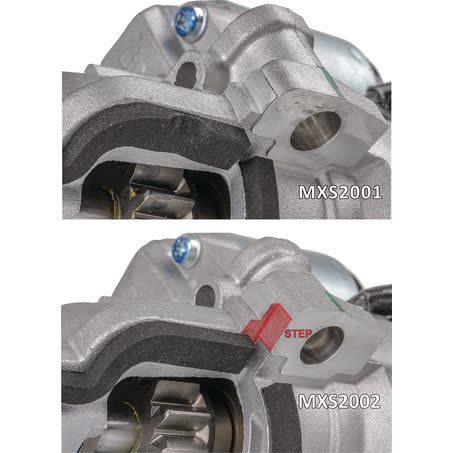

The starter is a 12V, 12 tooth, clockwise-rotation unit with a 2.5kW power rating and a dry clutch setup. Those details matter because starter motors can look similar while differing in rotation, tooth count, pinion position, or mounting pattern, and the note on this part states that it is not interchangeable with MXS2001 or AXS979.

If the vehicle is one of the listed Mitsubishi, Ford Ranger, or Mazda BT-50 applications, use the application details as a guide rather than a guarantee. The safest check is still the original part number, the mounting style, and the measured dimensions from the vehicle, especially where space around the starter or bellhousing is tight.

The unit is supplied new and carries a 3-year passenger or 1-year commercial warranty, but warranty cover does not replace fitment checks. Confirm the electrical system, the tooth count, and the mounting arrangement before fitting so the starter matches the vehicle requirements and avoids avoidable returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2002 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 89mm, Nose Cone Length 67mm, Overall Length 249mm, Pinion Diameter 39mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2002, Brand OEX, Description OEX Starter Motor 12V 12Th CW Mitsubishi Style - See Note, Flange Diameter 82mm, Mount Hole Diameter 10, Number of Teeth 12, Pinion at Rest 43mm.

OEX Starter Motor 12V 12Th CW Mitsubishi Style - See Note. Part number MXS2002 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2002, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012, FORD RANGER 2013, MAZDA BT-50, MAZDA BT-50 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number MXS2002 and checking the mount measurements, rotation, tooth count, and application details before ordering. If the original starter differs in any of these areas, do not assume interchangeability.

FAQ

What is the part number for this starter motor?

The part number is MXS2002. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 12 teeth. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.

Is this starter motor clockwise or counter-clockwise?

It is clockwise rotation, listed as CW. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment data?

The fitment data lists Mitsubishi applications, along with Ford Ranger and Mazda BT-50 applications across multiple model years. Fitment should still be confirmed against the part number and measurements. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.

What should be checked before buying?

Check the part number MXS2002, the 2-hole mounting style, 89mm mount centres, 67mm nose cone length, 249mm overall length, 82mm flange diameter, 10mm mount hole diameter, and 39mm pinion diameter. For this listing, part number MXS2002 is the main reference point. Listed voltage is 12. Published fitment references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012. These details should still be checked against the original unit before ordering.
