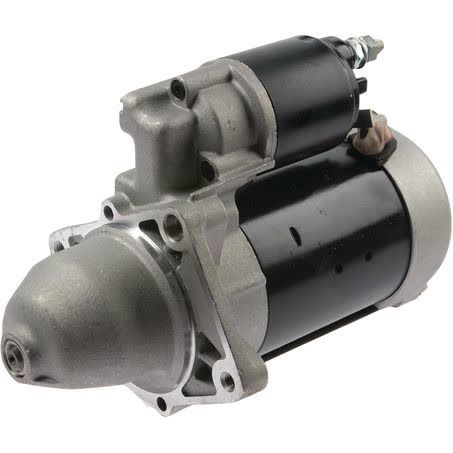

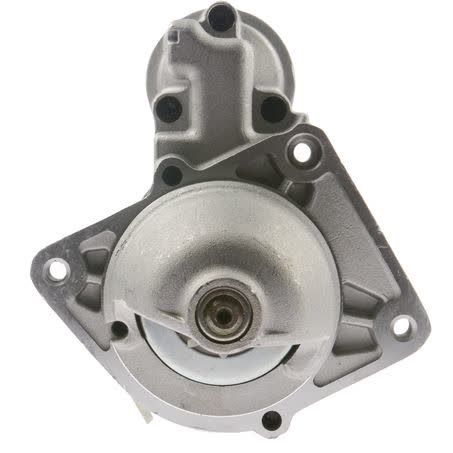

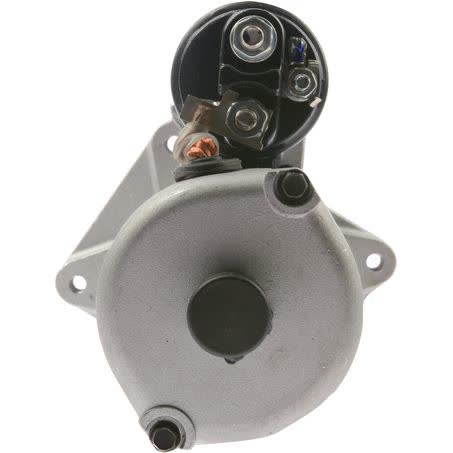

OEX Starter Motor 12V 9TH CW Bosch Style BXS4018

The OEX Starter Motor BXS4018 is a 12V starter motor with clockwise rotation, 9 teeth, and a Bosch-style fitment profile. Key physical checks include a 3 hole starter mount type, 84mm flange diameter, 257mm overall length, and M8x1.25 mount hole diameter.

This unit is listed with a 2.3kW power rating, 35.5mm pinion diameter, and 27mm pinion at rest. It weighs 4.40kg and is supplied new, not remanufactured, which matters when comparing it against the original starter arrangement on the vehicle.

Fitment data supplied for this part points to IVECO DAILY applications across multiple model years, including 1999 through 2009. As with any starter motor, the part number, tooth count, rotation, mounting pattern, and overall dimensions should all be checked before ordering.

Key Features

• 12V starter motor
• Clockwise rotation
• 9-tooth pinion
• Bosch style
• New unit
• 3 hole starter mount

Specifications

• Part No.: BXS4018
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.3kW
• Starter mount type: 3 hole

Known application guidance

• IVECO DAILY
• IVECO DAILY 1999
• IVECO DAILY 2000
• IVECO DAILY 2001
• IVECO DAILY 2002
• IVECO DAILY 2003
• IVECO DAILY 2004
• IVECO DAILY 2005

Application and Buying Notes

Before ordering, compare the BXS4018 part number with the starter already fitted to the vehicle and check the Bosch-style application carefully. The key physical match points here are 12V operation, clockwise rotation, 9 teeth, and the 3 hole mounting pattern with 122mm, 95mm, and 70mm mount centres.

Starter motors can look similar while differing in flange diameter, pinion size, or overall length, so the 84mm flange, 35.5mm pinion diameter, and 257mm overall length are important checks. The mount hole size is M8x1.25, and the unit is listed with a 27mm pinion at rest, which should be compared against the existing unit where possible.

The listed application information points to IVECO DAILY, including model years from 1999 through 2009. That gives a useful guide, but it is still best practice to confirm the exact vehicle details and the original starter specifications before purchase, especially where prior repairs, engine changes, or replacement parts may have altered the vehicle.

For buyers comparing options, the 2.3kW rating, new condition, and dry clutch designation are useful indicators of what is being supplied. These details do not replace fitment checking, but they do help confirm whether this unit matches the electrical and mechanical requirements of the application you are working on.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That is helpful when planning the job, but the correct starter still needs to be matched to the vehicle using the part number and mounting details rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS4018 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 122mm, Mount Centres C 70mm, Number of Teeth 9, Pinion at Rest 27mm, Power Rating 2.3kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. BXS4018, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 84mm, Mount Centres B 95mm, Mount Hole Diameter M8x1.25, Overall Length 257mm.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS4018 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS4018, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number BXS4018, the Bosch-style application, and the listed mounting and dimensional details before purchase. If you are matching to an IVECO DAILY, check the vehicle year and the existing starter specifications carefully to avoid ordering the wrong unit.

FAQ

What is the part number for this starter motor?

The part number is BXS4018. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What rotation does this unit use?

The rotation is clockwise, listed as CW. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 9 teeth. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What vehicle applications are listed for this part?

The supplied application guidance points to IVECO DAILY, including model years 1999 through 2009. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS4018 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.
