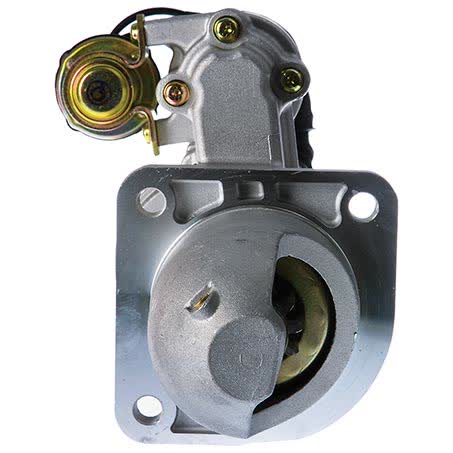

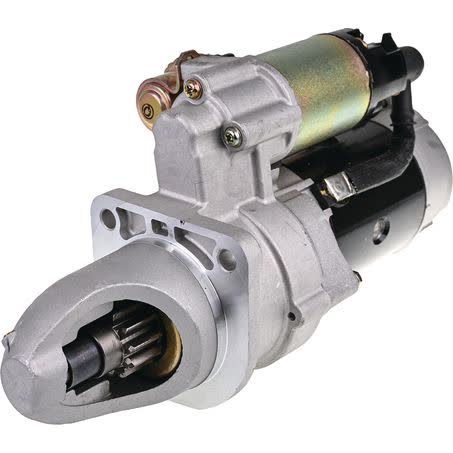

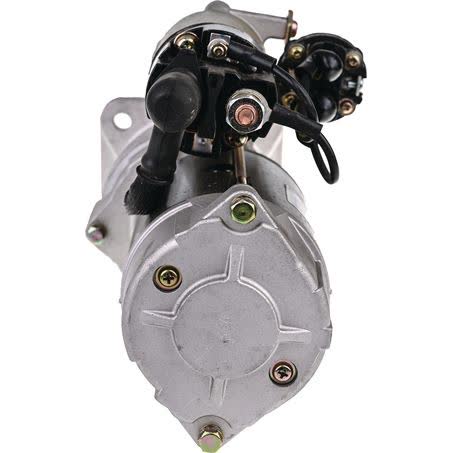

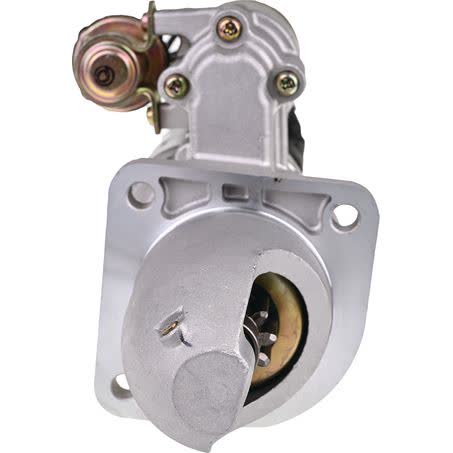

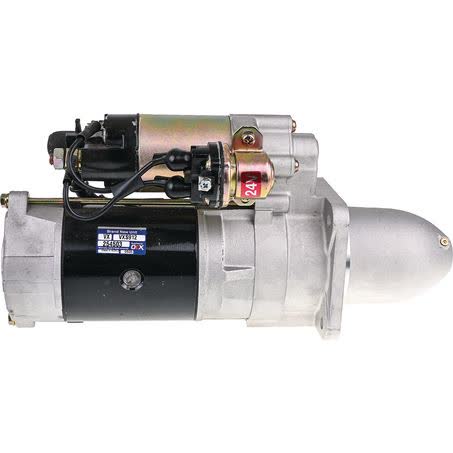

OEX Starter Motor 24V 11 Tooth CW Valeo VXS912

The OEX Starter Motor VXS912 is a new 24V starter motor with 11 teeth and clockwise rotation, suited to Valeo units. It is a 6kW starter with a 3 hole mounting pattern, 127mm mount centres A, 90mm mount centres B and C, and an 89mm flange diameter.

Key physical dimensions include a 386mm overall length, 108mm nose cone length, 40.5mm pinion diameter and 49mm pinion at rest. The mount hole diameter is 11mm and the unit weighs 11.9kg, so it is important to compare these figures carefully with the original starter before ordering.

OEX states this starter is made using OE components for fit and function, and that its products are sourced from ISO9001 certified factories. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives useful buying context when selecting a replacement starter for a heavy-duty application.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 6kW power rating
• Suits Valeo unit applications
• New unit

Specifications

• Brand: OEX
• Part No.: VXS912
• Product type: Starter Motor
• Voltage: 24V
• Power rating: 6kW
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Valeo

Known applications supplied for this starter

• Doosan/Daewoo Mega400
• Doosan/Daewoo Mega400 1996-2006
• Doosan/Daewoo Solar 330LC-V
• Doosan/Daewoo Solar 340LCV
• Doosan/Daewoo Solar 400LC-V
• Doosan/Daewoo Solar 420LCV
• Doosan/Daewoo Solar 470LCV
• Doosan/Daewoo Solar 500LCV

Application and Buying Notes

This starter is identified by OEX part number VXS912 and is listed as a 24V, 11 tooth, clockwise unit for Valeo applications. Before ordering, compare the part number, voltage, tooth count and rotation direction against the starter already fitted to the machine, as those details need to align before the physical dimensions matter.

The mounting layout is specific: 3 hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, and 11mm mount hole diameter. The 89mm flange diameter, 108mm nose cone length and 386mm overall length are also useful checks when matching the replacement to the original assembly.

Because this unit is 11.9kg and rated at 6kW, it is intended for a substantial rotating electrical application rather than a small-format starter. Confirm the vehicle or equipment uses a Valeo-based starter with the same 24V electrical requirement and the same physical mounting pattern before fitting.

The supplied application list includes Doosan/Daewoo Mega400 and several Doosan/Daewoo Solar models, plus Terex O&K TXC and TXL series machines. If your machine is not one of the listed applications, use the part number and the measured dimensions to verify suitability rather than relying on general starter appearance.

If replacing a worn starter, check the pinion diameter of 40.5mm, the 49mm pinion at rest measurement and the dry clutch note against the existing unit. These details can help confirm that the new starter matches the original setup closely enough for proper installation and engagement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS912 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Nose Cone Length 108mm, Overall Length 386mm, Pinion Diameter 40.5mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 11.9kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS912, Brand OEX, Description OEX Starter Motor 24V 11TH CW Valeo, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Number of Teeth 11.

OEX Starter Motor 24V 11TH CW Valeo. Part number VXS912 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS912, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching OEX part number VXS912, 24V voltage, 11 tooth clockwise rotation, Valeo suitment and the listed mounting and dimension details against the existing starter and machine application before purchase.

FAQ

What is the part number for this starter motor?

The OEX part number is VXS912. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter?

It is a 24V starter motor. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 11 teeth. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, listed as CW. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.

What type of unit is it suited to?

It is listed as suiting Valeo units. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS912 is the main reference point. Listed voltage is 24. Published fitment references include DOOSAN/DAEWOO MEGA400, DOOSAN/DAEWOO MEGA400 1996, DOOSAN/DAEWOO MEGA400 1997. These details should still be checked against the original unit before ordering.
