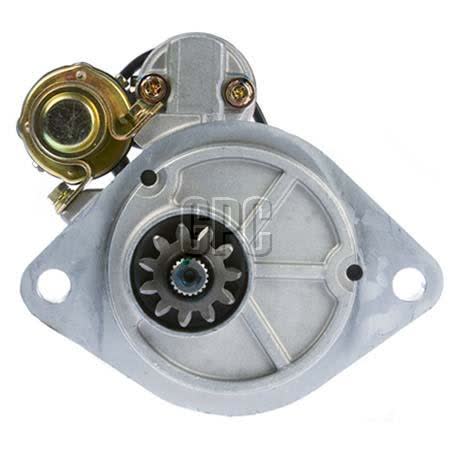

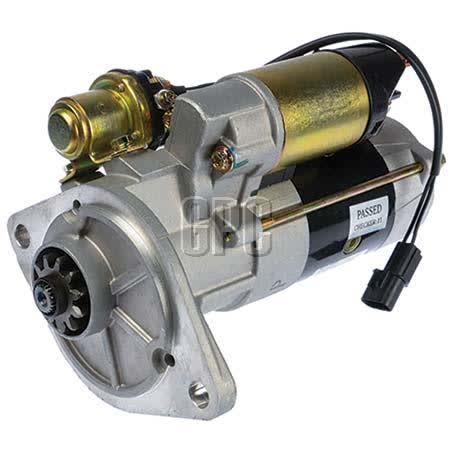

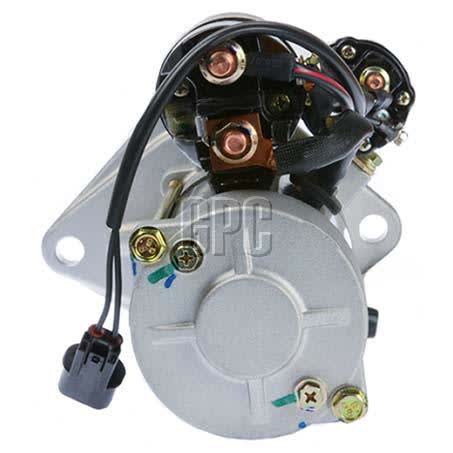

OEX Starter Motor 24V 11 Tooth CW Mitsubishi Style MXS2033

The OEX Starter Motor MXS2033 is a new 24V starter motor with clockwise rotation, 11 teeth, and a 5kW power rating. It is listed as Mitsubishi style and suits unit make Mitsubishi, with a 2 hole starter mount and 145mm mount centres.

Key physical details include a 100mm flange diameter, 13mm mount hole diameter, 275mm overall length, 40mm pinion diameter, and 20mm pinion at rest. At 14kg, this is a substantial rotating electrical component, so matching the mounting layout and electrical requirements matters before ordering.

OEX lists this starter motor with a 3 year passenger and 1 year commercial warranty. It is described as a new unit, and the product group is rotating electrical, which is the relevant category when checking replacement suitability against the original starter.

Key Features

• 24V starter motor
• Clockwise rotation
• 11 tooth pinion
• 5kW power rating
• 2 hole starter mount
• New unit

Specifications

• Part No.: MXS2033
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 5kW
• Starter mount type: 2 hole
• Mount centres A: 145mm
• Flange diameter: 100mm

Known application guidance

• Mitsubishi Fuso Canter
• Mitsubishi Fuso Fighter
• Mitsubishi Industrial 6D34-T
• Mitsubishi Industrial MG230IIE
• Kobelco EX120
• Kobelco FD35
• Kobelco FD416
• Kobelco FP316

Application and Buying Notes

This starter is specified as 24V with CW rotation and 11 teeth, so those three points should be checked against the original unit first. The mounting pattern is also important here: 2 hole starter mount, 145mm mount centres, 100mm flange diameter, and 13mm mount hole diameter are the practical dimensions that need to line up with the vehicle or machine.

The listed application groups include Mitsubishi Fuso Canter, Mitsubishi Fuso Fighter, Mitsubishi Industrial 6D34-T and MG230IIE, plus a range of Kobelco, Kato, Bell, Hidromek, K27 and New Holland applications. That broader coverage does not replace a direct check of the old starter, because Mitsubishi style parts can vary by tooth count, rotation, flange size, and nose depth.

The 5kW power rating and 14kg weight indicate a heavy-duty starter assembly, which suits the kind of equipment listed in the fitment data. Before buying, compare the part number MXS2033, the 11 tooth pinion, the 275mm overall length, and the 20mm pinion at rest measurement with the existing unit to reduce the risk of a mismatch.

If the original starter is missing, damaged, or unreadable, use the vehicle or machine application together with the physical measurements. The safest approach is to confirm voltage, rotation, tooth count, mount style, and flange dimensions rather than relying on appearance alone, especially on industrial and heavy equipment where similar starters can differ in small but important ways.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2033 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 145mm, Number of Teeth 11, Pinion at Rest 20mm, Power Rating 5kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 14kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2033, Brand OEX, Description OEX Starter Motor 24V 11Th CW Mitsubishi Style, Flange Diameter 100mm, Mount Hole Diameter 13, Overall Length 275mm, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 24V 11Th CW Mitsubishi Style. Part number MXS2033 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2033, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III, BELL HD820III 1995, HIDROMEK HMK220LC, HIDROMEK HMK220LC 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number MXS2033, 24V voltage, CW rotation, 11 teeth, 2 hole mount, 145mm mount centres, and the listed flange and overall dimensions against the existing starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2033. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.

Is this starter motor 12V or 24V?

It is a 24V starter motor. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.

What rotation is this starter motor?

It is clockwise rotation, listed as CW. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a 2 hole starter mount with 145mm mount centres. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2033 is the main reference point. Listed voltage is 24. Published fitment references include BELL HD1023III, BELL HD1023III 1997, BELL HD820III. These details should still be checked against the original unit before ordering.
