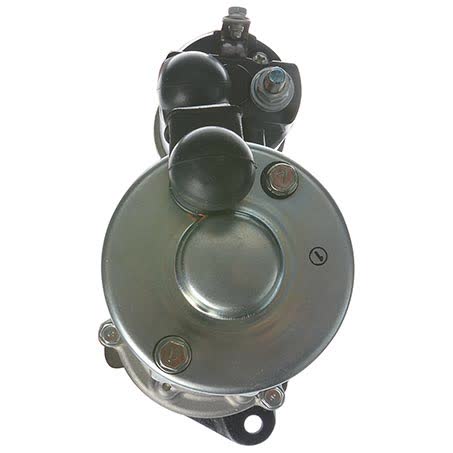

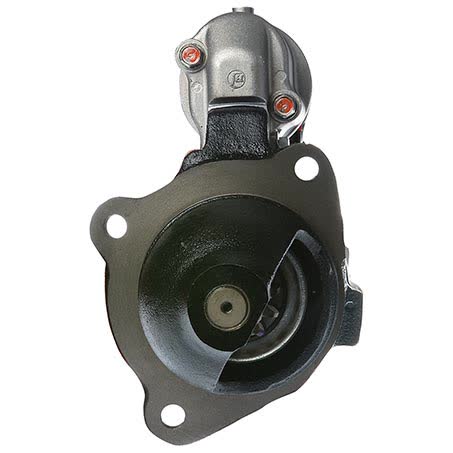

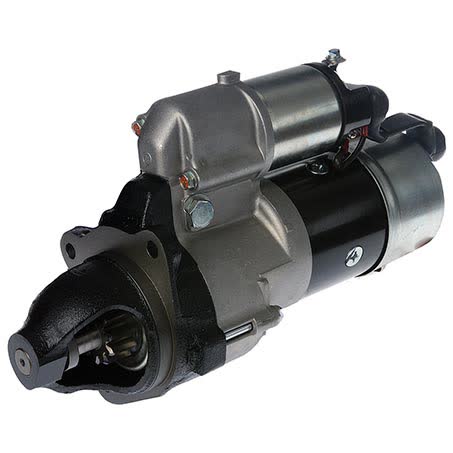

OEX Starter Motor 24V 11 Tooth CW Sawafuji Style SXS719

The OEX SXS719 is a 24V starter motor in Sawafuji style, arranged for clockwise rotation and a 3 hole starter mount. It suits Sawafuji applications and is listed as a new unit, not remanufactured.

Key physical details include an overall length of 360mm, a flange diameter of 89mm, a nose cone length of 74mm, and mount hole diameter of 10.5mm. The pinion has 11 teeth, measures 40mm in diameter, and sits 27mm at rest.

This starter motor is rated at 4kW and weighs 10kg. It is described as an OE product sourced from an ISO standards approved company, with warranty cover listed as 3 years for passenger use and 1 year for commercial use.

The listed part number is SXS719 and the OEM number shown is 0350-402-0010. Those identifiers, along with the 24V rating and Sawafuji style, are the most useful checks when matching a replacement starter motor.

Key Features

• 24V starter motor
• Clockwise rotation
• 11 tooth pinion
• New unit
• 3 hole starter mount
• Suits Sawafuji units

Specifications

• Part number: SXS719
• OEM number: 0350-402-0010
• Power rating: 4kW
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole
• Mount centres A: 127mm

Fitment guidance

• Verified fitment references include DEUTZ F4L912 and DEUTZ-FAHR M 980 applications.
• Fitment data also shows DEUTZ F4L912 year references from 1969 through 1979.
• Fitment data also shows DEUTZ-FAHR M 980 year references from 1981 through 1991.
• Always compare the part number SXS719, OEM number 0350-402-0010, and the listed starter measurements before ordering.

Application and Buying Notes

When replacing a 24V starter motor, the safest check is to match the part number SXS719, the OEM number 0350-402-0010, and the electrical rating before anything else. The wrong voltage, rotation, or pinion layout can stop the unit from engaging correctly, even if the mounting pattern looks close.

This unit is a clockwise rotation starter with an 11 tooth pinion, 4kW power rating, and a 3 hole mount layout. The physical dimensions also matter: 360mm overall length, 89mm flange diameter, 74mm nose cone length, and 10.5mm mount hole diameter. Those measurements help confirm whether the starter will suit the space and mounting face on the original application.

The listed fitment references point to Sawafuji-based applications and include DEUTZ F4L912 and DEUTZ-FAHR M 980 variants. Because starter motors can differ by mounting style, pinion depth, and housing shape, it is worth comparing the old unit against the dimensions provided here rather than relying on the make name alone.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. If the starter is going onto a working machine, the commercial warranty period is the relevant one to keep in mind. The unit is also listed as new, which may be important if you are comparing it with remanufactured alternatives.

If you are unsure, check the existing starter for its tag, casing markings, tooth count, rotation direction, and mounting hole spacing. A correct match should align on the 24V specification, the 11 tooth pinion, the 3 hole mount type, and the SXS719 or 0350-402-0010 identifiers.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXS719 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Nose Cone Length 74mm, Overall Length 360mm, Pinion Diameter 40mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Weight 10kg, Product Group 1 ROTATING ELECTRICAL, Part No. SXS719, Brand OEX, Description OEX Starter Motor 24V 11Th CW Sawafuji Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 10.5.

OEX Starter Motor 24V 11Th CW Sawafuji Style. Part number SXS719 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SXS719, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DEUTZ F4L912, DEUTZ F4L912 1969, DEUTZ F4L912 1970, DEUTZ F4L912 1971, DEUTZ-FAHR M 980, DEUTZ-FAHR M 980 1981. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching the part number SXS719, OEM number 0350-402-0010, 24V rating, clockwise rotation, 11 tooth pinion, and the listed mounting dimensions against the original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is SXS719. The OEM number shown is 0350-402-0010.

What voltage does this starter motor use?

It is a 24V starter motor.

What rotation does it have?

The starter motor is listed as clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 11 teeth and a pinion diameter of 40mm.

What vehicles or units is it shown to suit?

The fitment data references Sawafuji units, with application references including DEUTZ F4L912 and DEUTZ-FAHR M 980.

Is it new or remanufactured?

It is listed as a new starter motor, not remanufactured.
