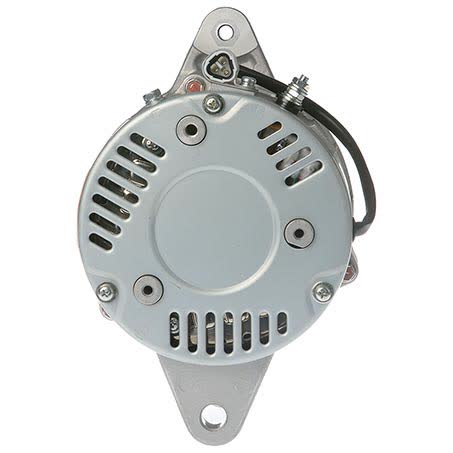

OEX Alternator 24V 50A Sawafuji Style SXA717

The OEX SXA717 is a new 24V alternator rated at 50A and listed as Sawafuji style. It suits unit make Sawafuji and uses an internal regulator, which is a key checkpoint when matching a replacement alternator for a 24V charging system.

Mounting details matter with alternators, and this unit is specified with twin leg mounting, 85mm inside mounting legs, 14mm pivot hole diameter and an M10 adjusting hole. The mount centre to centre measurement is 221mm, so those dimensions should be checked against the original unit before ordering.

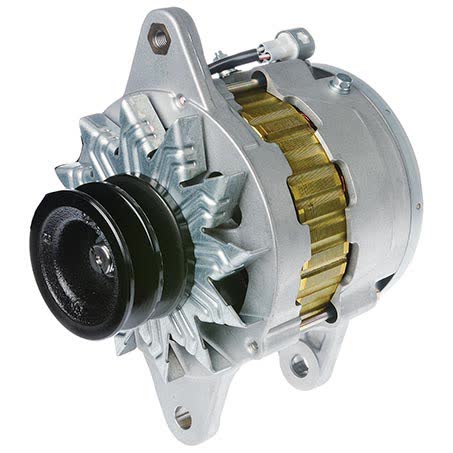

The pulley is 82mm outside diameter with a BB section, and the shaft dimension is 22mm. At 8kg, this is a substantial rotating electrical component, so correct physical and electrical matching is important rather than relying on appearance alone.

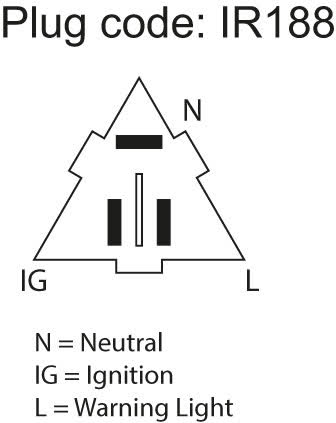

OEX lists this alternator as an OE product sourced from an ISO standards approved company. It carries part number SXA717 and pin code IR188, giving you two useful identifiers when confirming the correct replacement for the application.

Key Features

• 24V alternator with 50A output
• Internal regulator
• Twin leg alternator mount
• New unit
• OE product sourced from an ISO standards approved company
• Part number SXA717

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 24V
• Power rating: 50A
• Part number: SXA717
• Suits unit make: Sawafuji
• Regulator type: Internal
• Alternator mount: Twin leg

Confirmed fitment applications

• FRANNA AT-15
• FRANNA AT-20
• HINO FC
• HINO FD
• HINO RANGER
• TOYOTA INDUSTRIAL 5FD/5FG 50-80
• TOYOTA INDUSTRIAL FORKLIFT

Application and Buying Notes

Before ordering, check the part number SXA717, the pin code IR188 and the unit make, which is listed as Sawafuji. For a replacement alternator, the mounting dimensions are just as important as the electrical rating, so confirm the 24V, 50A specification, twin leg mount, 85mm inside mounting legs and 221mm mount centre to centre against the original unit.

The pulley and shaft details also need to line up with the existing installation. This alternator is listed with an 82mm pulley outside diameter, BB pulley section and 22mm shaft dimension, so make sure the belt profile and mounting arrangement match before fitting. The pivot hole diameter is 14mm and the adjusting hole diameter is M10, which are practical checks when comparing units side by side.

This is a new alternator, not a remanufactured unit, and the listed warranty is 3 years for passenger use or 1 year for commercial use. If the vehicle or equipment is used in a commercial setting, it is worth confirming the warranty expectation and the exact application before purchase, especially where the alternator is fitted to industrial equipment or fleet machinery.

The fitment applications provided include FRANNA AT-15, FRANNA AT-20, HINO FC, HINO FD, HINO RANGER, TOYOTA INDUSTRIAL 5FD/5FG 50-80 and TOYOTA INDUSTRIAL FORKLIFT. Even where a model family is listed, alternators can vary by build date, mounting style and electrical setup, so the safest approach is to confirm the original unit details as well as the application name.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXA717 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 85mm, Pivot Hole Diameter 14, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 221mm, Shaft Dimension 22.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. SXA717, Brand OEX, Description OEX Alternator 24V 50A Sawafuji Style, Adjusting Hole Diameter M10, Pin Code IR188, Power Rating (Amp) 50, Pulley Section BB, Suits Unit Make Sawafuji.

OEX Alternator 24V 50A Sawafuji Style. Part number SXA717 should be checked first. Listed voltage is 24. Listed output rating is 50. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is BB. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number SXA717, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 50 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FRANNA AT-15, FRANNA AT-15 2001, FRANNA AT-20, FRANNA AT-20 2001, HINO FC, HINO FC 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number SXA717, pin code IR188, the 24V 50A rating, Sawafuji unit make, and all mounting and pulley dimensions before ordering. Model names alone are not enough to verify fitment for an alternator.

FAQ

What is the part number for this alternator?

The part number is SXA717. The pin code is IR188.

What voltage and output does this alternator have?

It is a 24V alternator rated at 50A.

Is this a new or remanufactured unit?

It is listed as new.

What type of regulator does it use?

It has an internal regulator.

What mounting details should I check before buying?

Check the twin leg mount, 85mm inside mounting legs, 221mm mount centre to centre, 14mm pivot hole diameter and M10 adjusting hole diameter.

Which applications are listed for this alternator?

Listed applications include FRANNA AT-15, FRANNA AT-20, HINO FC, HINO FD, HINO RANGER, TOYOTA INDUSTRIAL 5FD/5FG 50-80 and TOYOTA INDUSTRIAL FORKLIFT.
