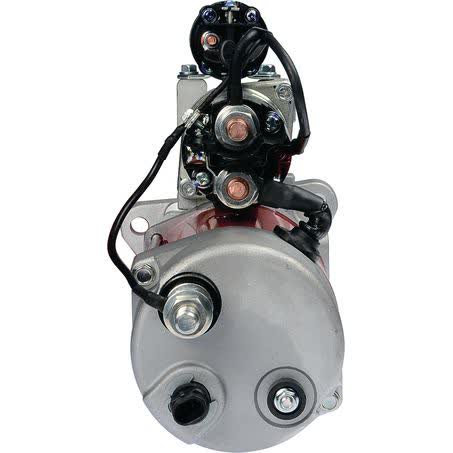

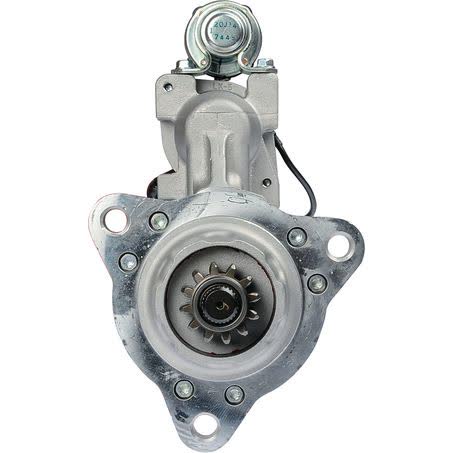

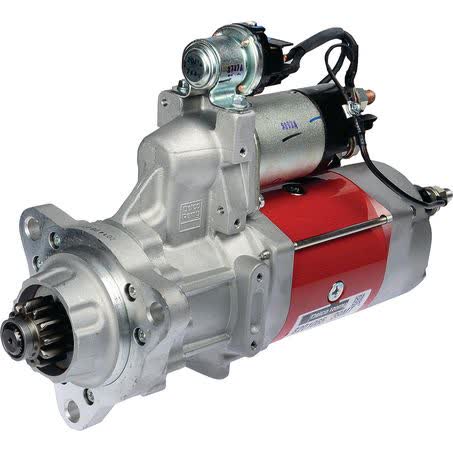

Delco Remy Starter Motor 12V 12TH CW 39MT Part No. 8201065

The Delco Remy 39MT starter motor is a 12V unit with 12 teeth, clockwise rotation, and a 7.8kW power rating. It is a new starter motor supplied as each, with part number 8201065 and a one year warranty.

This unit suits Delco applications and is listed with a 3 hole starter mount, 92mm flange diameter, 126mm mount centres on A, B and C, and a 13mm mounting hole. Overall length is 420mm, with a 44mm pinion diameter and 48mm pinion at rest.

The listing note states it suits Detroit Diesel DD13 and DD15 engines up to December 2015, and the fitment data also references Freightliner and Western Star applications. As with any starter, the part number, mounting pattern and engine application should be checked carefully before ordering.

Key Features

• New Delco Remy starter motor
• 12V, 12 tooth, clockwise rotation
• 39MT starter model
• Integrated Over Crank Protection (IOCP)
• Electrical soft-start
• 3 hole starter mount

Specifications

• Part No.: 8201065
• Brand: Delco Remy
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Power rating: 7.8kW
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm

Verified fitment guidance

• Suits Detroit Diesel DD13 and DD15 engines up to December 2015.
• Fitment data references Freightliner Argosy, Freightliner Century and Freightliner Coronado applications.
• Fitment data references Western Star 4800, 4900 and 5800 applications.
• Some listed applications include model-year references such as 2004 through 2013 for Western Star 4800 and 2010 to 2011 for Freightliner Century and Coronado.

Application and Buying Notes

Before ordering, match the part number 8201065 and confirm the starter mount layout. This unit uses a 3 hole mount with 126mm mount centres and a 13mm mounting hole, so the physical pattern needs to line up with the vehicle or engine already fitted.

The electrical and drive specifications are also important. This starter is 12V, clockwise rotation, 12 tooth, with a 44mm pinion, 48mm pinion at rest and a 7.8kW power rating. Those details need to suit the existing system and the application, especially where there is limited clearance around the bellhousing or starter location.

This starter is listed as new and carries a one year warranty. It is also described as suitable for wet or dry clutch applications, but the final check should always be made against the vehicle’s current starter details, mounting measurements and engine specification before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201065 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion at Rest 48mm, Power Rating 7.8kW, Suits Unit Make Delco, Note 44mm Pinion, 13mm mounting hole, Suits Detroit Diesel DD13 and DD15 engines up to December 2015..

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. 8201065, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 12Th CW 39MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13.

Delco Remy Starter Motor 12V 12Th CW 39MT. Part number 8201065 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201065, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY, FREIGHTLINER CENTURY 2010, WESTERN STAR 4800, WESTERN STAR 4800 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number 8201065, the 12V clockwise 39MT specification, and the stated DD13/DD15 application up to December 2015. Use the mounting measurements, pinion dimensions and vehicle application details to verify fitment before ordering.

FAQ

What is the part number for this starter motor?

The part number is 8201065. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.

What voltage and rotation does this starter have?

It is a 12V starter motor with clockwise rotation. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 12 teeth. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.

What is the power rating of this starter motor?

The power rating is 7.8kW. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.

What engines are listed in the fitment note?

The note states it suits Detroit Diesel DD13 and DD15 engines up to December 2015. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.

What mounting details should be checked before buying?

Check the 3 hole mount, 126mm mount centres, 13mm mounting hole, 92mm flange diameter, and the overall length of 420mm before ordering. For this listing, part number 8201065 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER ARGOSY, FREIGHTLINER ARGOSY 2011, FREIGHTLINER CENTURY. These details should still be checked against the original unit before ordering.
