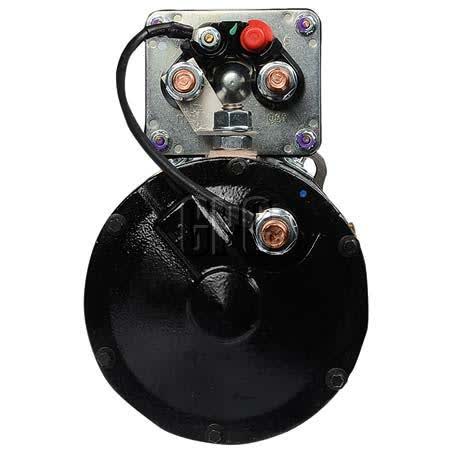

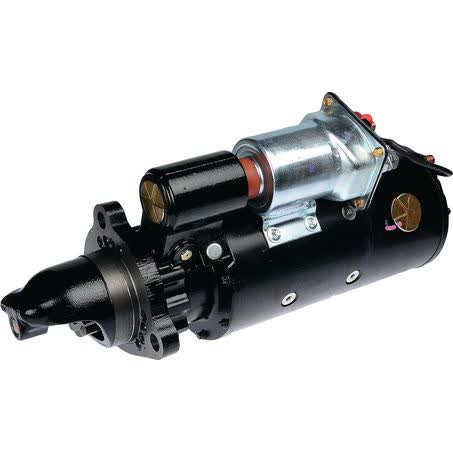

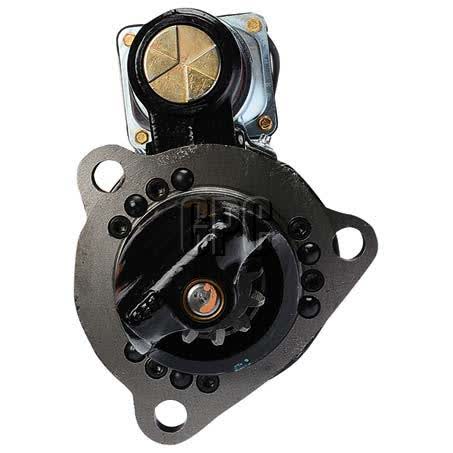

Delco Remy Starter Motor 24V 11 Tooth CW 50MT Part No. 8201049

The Delco Remy starter motor listed here is a new 24V unit with clockwise rotation, 11 teeth, and an 8.5kW power rating. It is identified by part number 8201049 and is noted as a 50MT starter with an insulated return.

This starter uses a 3 hole mount arrangement with 126mm mount centres A, B and C, a 92mm flange diameter, and 16mm mount hole diameter. The overall length is 515mm, with a 56mm pinion diameter and 46mm pinion at rest.

It suits Delco applications and is listed for wet or dry clutch use. At 35.5kg, it is a substantial rotating electrical component, so checking the mounting pattern, rotation, voltage and physical dimensions before purchase is important.

Key Features

• New starter motor
• 24V operation
• Clockwise rotation
• 11 tooth pinion
• 50MT note
• Insulated return

Specifications

• Brand: Delco Remy
• Part No.: 8201049
• Type: Starter motor
• Voltage: 24
• Power rating: 8.5kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Known application examples

• ATLAS COPCO L830
• ATLAS COPCO MT6020
• ATLAS COPCO ROC D65
• BANDIT BEAST 2680XP
• BERTRAM 50
• BERTRAM 570
• BERTRAM 670
• CATERPILLAR 12H

Application and Buying Notes

Before ordering, confirm the part number 8201049 against the original unit and compare the mounting details carefully. The key checks here are 24V, clockwise rotation, 11 teeth, 3 hole mounting, and the 126mm mount centres across A, B and C.

The physical size matters as much as the electrical rating. This starter is 515mm long, has a 92mm flange diameter, a 56mm pinion diameter, and weighs 35.5kg, so clearances and mounting space should be checked before installation.

This starter is listed for wet or dry clutch use and suits Delco applications. Where the machine model is known, the application list should be treated as a guide only, with final confirmation made by part number, mounting dimensions, and electrical specification.

For workshop or fleet buying, it is worth confirming the starter drive position, pinion at rest dimension of 46mm, and mount hole diameter of 16mm before fitting. These details can prevent delays where the machine is already apart and the replacement needs to go straight on.

A one year warranty is listed for this new unit. As with any starter motor purchase, the safest approach is to match the replacement to the existing starter’s label, terminal arrangement, and mounting measurements before proceeding.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201049 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 46mm, Power Rating 8.5kW, Suits Unit Make Delco, Note 50MT.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 35.5kg, Product Group 1 ROTATING ELECTRICAL, Part No. 8201049, Brand DELCO REMY, Description Delco Remy Starter Motor 24V 11Th CW 50MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Overall Length 515mm.

Delco Remy Starter Motor 24V 11Th CW 50MT. Part number 8201049 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201049, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number 8201049, 24V specification, clockwise rotation, 11 tooth pinion, and the 3 hole mounting dimensions before purchase. Application examples are provided as a guide only and should be verified against the machine and the removed unit.

FAQ

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.

What is the part number?

The listed part number is 8201049. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.

How does the starter rotate?

It rotates clockwise, noted as CW. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.

What mounting setup does it use?

It uses a 3 hole mount with 126mm mount centres A, B and C, a 92mm flange diameter, and 16mm mount hole diameter. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.

What applications are shown for this starter?

Known examples include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65, BANDIT BEAST 2680XP, BERTRAM 50, BERTRAM 570, BERTRAM 670, several CATERPILLAR models, and CASE IH. For this listing, part number 8201049 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO L830, ATLAS COPCO MT6020, ATLAS COPCO ROC D65. These details should still be checked against the original unit before ordering.
