Auto Electrics Aust Alternator 12V 130A Denso Style ALT295510

Auto Electrics Aust Alternator 12V 130A Denso Style, part number ALT295510, is a new alternator with a 130 amp output and an internal regulator. It is listed as a Denso style unit and suits Denso applications, with the note advising it replaces ALT295510G.

This alternator uses a twin leg mount, with 45mm inside mounting legs and a 124mm mount centre-to-centre measurement. The pivot hole diameter is listed as 10 / 11, the adjusting hole diameter is M8, and the pulley is a 7 groove design with a 59mm outside diameter.

The unit is supplied as each, weighs 5.8kg, and carries a one year warranty. It is described as a hi-output alternator, so the current output and mounting details should be checked carefully against the original unit before ordering.

A supplied adaptor is noted to suit HXK-34, HXK-31, and HXK-29, which is important to confirm where those mounting or drive arrangements are involved. Because alternators can differ in mount spacing, pulley section, and regulator type, matching the part number and physical dimensions is the safest way to order correctly.

Key Features

• 12V alternator with 130A output
• New unit, not remanufactured
• Internal regulator type
• Twin leg alternator mount
• 7 groove pulley, 59mm outside diameter
• Replaces ALT295510G

Specifications

• Part number: ALT295510
• Brand: Auto Electrics Aust
• Product type: Alternator
• Voltage: 12V
• Power rating: 130A
• Suits unit make: Denso
• Mount type: Twin leg
• Inside mounting legs: 45mm

Fitment notes

• Fitment is only supported here at the make level for Denso applications.
• A supplied adaptor is noted to suit HXK-34, HXK-31, and HXK-29.
• No specific vehicle model fitment is confirmed beyond the supplied Toyota / Toyota Tarago references in the fitment data.
• Toyota Tarago is mentioned in the fitment data, including a 2012 reference, but exact application should still be checked against the part number and mounting measurements.

Application and Buying Notes

Before ordering, confirm the original alternator is a Denso style unit and check that the replacement part number ALT295510, or the stated replacement ALT295510G, matches what is fitted to the vehicle. The listed 12V, 130A specification, internal regulator, and 7 groove pulley are key points that need to line up with the existing setup.

Mounting measurements matter just as much as the electrical rating. This unit is listed with 45mm inside mounting legs, 124mm mount centre-to-centre, a 10 / 11 pivot hole diameter, and an M8 adjusting hole, so the brackets and pivot arrangement should be verified against the removed alternator.

The pulley measurement is also important where belt alignment is concerned. A 59mm outside diameter pulley with a 7 groove section should be matched to the belt system already on the vehicle, because pulley section and groove count can differ even between alternators that look similar.

The note about an adaptor to suit HXK-34, HXK-31, and HXK-29 should be treated as a useful compatibility checkpoint, not a blanket fitment guarantee. If the vehicle uses one of those related arrangements, confirm whether the adaptor is required and whether the existing mounting points and drive layout are unchanged.

At 5.8kg, this is a substantial rotating electrical component and should be handled with the same care as any new alternator installation. Check all wiring connections, pulley alignment, and the regulator arrangement before start-up so the installation matches the vehicle’s original configuration as closely as possible.

If you are matching by application rather than by part number alone, use the vehicle details, the Denso make reference, and the physical dimensions together. That approach is the safest way to avoid ordering a 130A alternator that is close in appearance but different in mount spacing or pulley setup.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ALT295510 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 45mm, Pivot Hole Diameter 10 / 11, Pulley Outside Diameter 59mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

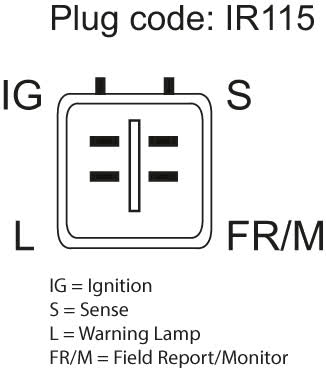

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. ALT295510, Brand AUTO ELECTRICS AUST, Description Alternator 12V 130A Denso Style, Adjusting Hole Diameter M8, Pin Code IR115, Power Rating (Amp) 130, Pulley Section 7 Groove, Suits Unit Make Denso, Note Hi-Output Alternator. Replaces ALT295510G. Adaptor to suit HXK-34, HXK-31, HXK-29.

Alternator 12V 130A Denso Style. Part number ALT295510 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Confirm fitment by matching part number ALT295510, the Denso style application, and the listed mounting and pulley dimensions before purchase. Do not rely on appearance alone, as alternator mounts and pulley arrangements can vary.

FAQ

What is the part number for this alternator?

The part number is ALT295510.

What is the electrical output of this alternator?

It is rated at 130 amps and operates on 12V.

Is this alternator new or remanufactured?

It is listed as a new alternator.

What type of regulator does it have?

It has an internal regulator.

What pulley setup does it use?

It uses a 7 groove pulley with a 59mm outside diameter.

What should I check before buying?

Check the part number ALT295510, the Denso style application, the 12V 130A rating, the twin leg mount measurements, and whether the adaptor note for HXK-34, HXK-31, and HXK-29 applies to your vehicle.
